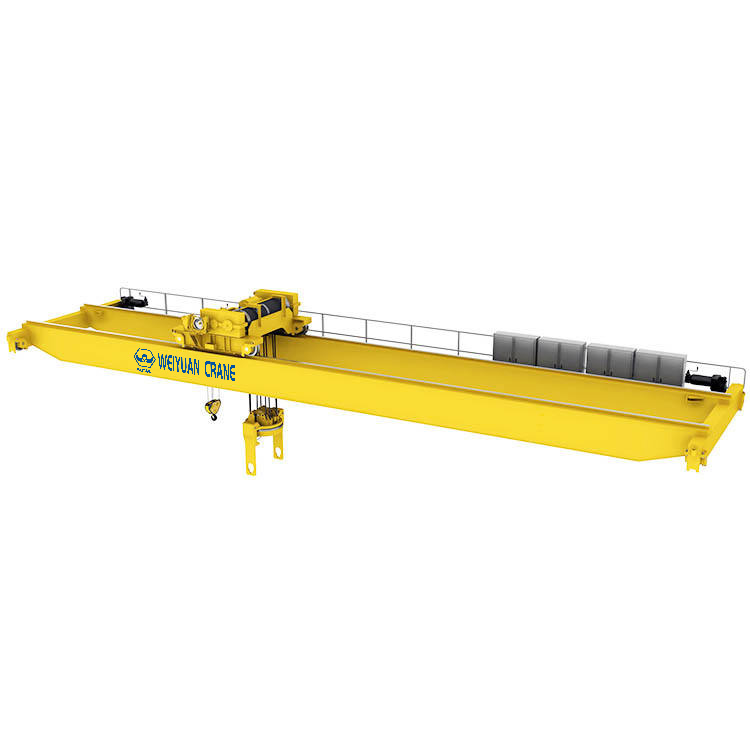

Customized Traveling EOT Crane
Product Overview
The Customized Traveling EOT (Electric Overhead Travelling) Crane is an adaptable lifting solution engineered to meet your exact operational requirements. With popular capacities of 15, 16, and 20 tons, this crane can be configured as a cost-effective single girder model for general use or a robust double girder system for heavy-duty applications and wider spans. From span and lifting height to control systems and work duty, every aspect is tailored to create a high-performance, perfectly integrated material handling system for your facility.
Product Advantages
- Fully-Tailored Solution: We don’t offer a one-size-fits-all product. We work with you to specify the ideal capacity, span, height, classification (A3-A6), and control features, ensuring you get the perfect crane for your job without overspending.
- Optimized Girder Design: Choose a single girder configuration for excellent value and low deadweight in standard applications, or a double girder design for superior stability, higher hook height, and suitability for heavy-duty or wide-span requirements.
- Precision and Performance: Select from standard two-speed controls for reliable operation or upgrade to Variable Frequency Drives (VFDs) for smooth, precise, and shock-free handling of valuable or sensitive loads.
- Built for Durability: Constructed from high-strength structural steel and equipped with premium electrical and mechanical components from leading brands, your customized crane is built for long-term reliability and minimal maintenance.
- Comprehensive Safety Integration: Every custom crane is equipped with a full suite of safety features, including overload protection, travel limit switches, and emergency stop systems, all compliant with CE and other international standards.
Application Scenarios
- Custom Manufacturing & Fabrication: Ideal for shops with unique layouts or specific lifting needs, such as handling large, awkwardly shaped fabrications or heavy dies.
- General Purpose Warehousing: Can be configured as a high-value single girder crane for standard pallet and material handling or a double girder system for moving heavy equipment.

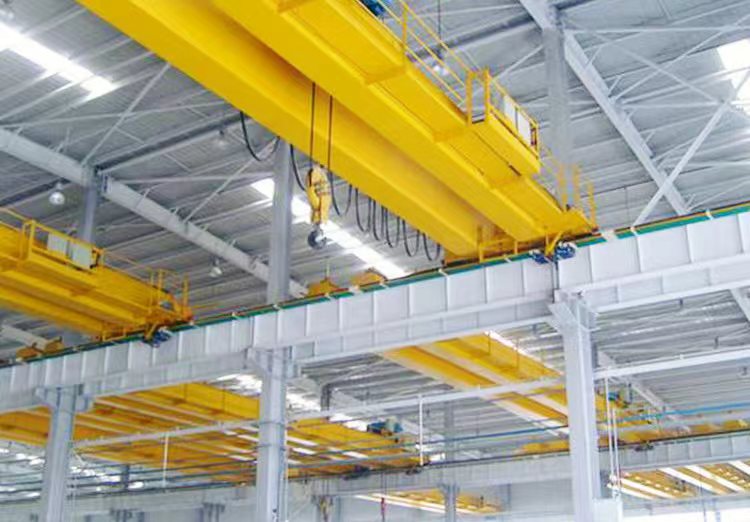

- Heavy Equipment Assembly: A stable double girder configuration is perfect for the precise alignment and assembly of heavy machinery, engines, and industrial components.
- Power Plants and Utilities: Custom-designed to handle specific components like turbines, generators, or transformers during installation and maintenance cycles.
- Paper, Plastic & Metal Coil Handling: Can be fitted with specialized below-the-hook devices and the stability of a double girder design for safely handling heavy, cylindrical loads.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 15t / 16t / 20t (Other capacities fully customizable) |
| Span | 7.5 m to 35.5 m (Engineered to your exact facility width) |
| Max. Lifting Height | 6 m to 40 m (Customized as per your requirement) |
| Work Duty | A3–A6 (Configurable from Light to Heavy Duty) |
| Lifting Speed | 1–8 m/min (Two-speed or VFD, configured for your application) |
| Trolley Traveling Speed | 2–25 m/min (Two-speed or VFD) |
| Crane Traveling Speed | 20–80 m/min (Two-speed or VFD) |
| Hoist Type | Electric Wire Rope Hoist (Single Girder) or Hoist Trolley (Double Girder) |
| Hoist Motor | Heavy-duty dual-speed or VFD-controlled motor |
| Travel Motors | Dual-speed or VFD-controlled gear motors |
| Control Methods | Pendant Control, Wireless Remote Control, Cabin Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent brand |
| Safety Devices | Overload limiter, emergency stop, anti-collision system, travel limits |
| Working Temperature | -25°C to +40°C (Special designs available) |
| Protection Class | IP54 / IP55 (Configurable based on environment) |
| Paint/Finish | Custom color, industrial anti-corrosion primer and heavy-duty topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Forged steel wheels; Box-section end carriages |
| Rail Size (typical) | P24, P38, P43, QU70 (Recommended for the application) |
| Braking | Electromagnetic disc brakes; redundant brakes on double girder models |
| Limit Switches | Included for all hoisting and travel motions |
| Documentation | Certificate of Conformity, Test Reports, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 30–50 days (negotiable for specific configurations) |
Features at a Glance
- Fully customized solution with popular capacities of 15, 16, and 20 tons.
- Available in both economical single girder and heavy-duty double girder designs.
- Tailored span, height, duty cycle, and controls to perfectly match your needs.
- Optional VFD controls for smooth and precise load handling.
- CE-compliant engineering with high-quality components and comprehensive safety features.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
