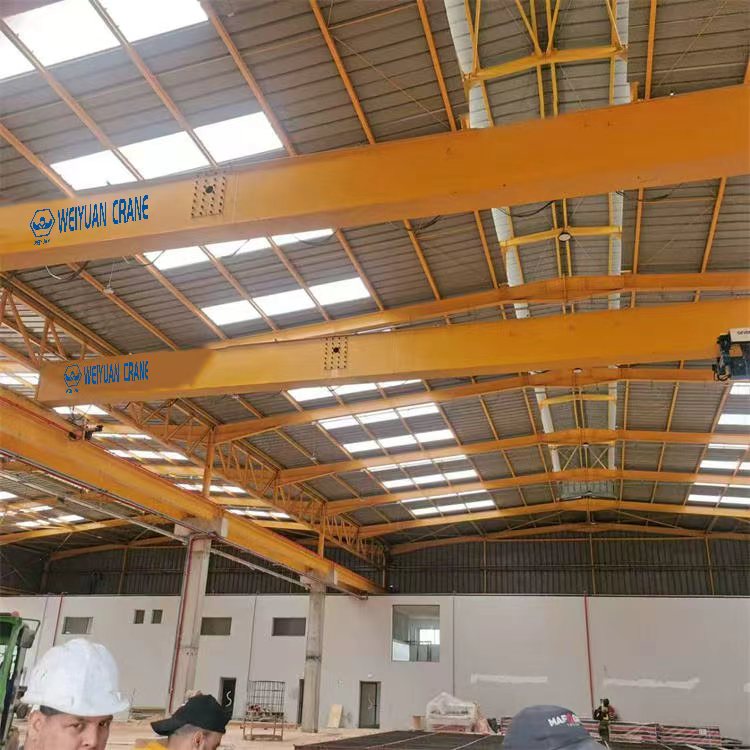

European Type Bridge Crane 5 Ton Single Girder Overhead Crane
Product Overview
The Weiyuan European Type Bridge Crane is an advanced, high-performance lifting solution designed for modern industrial environments. It embodies European design principles, focusing on a compact structure, strong rigidity, and beautiful aesthetics. This crane is engineered for efficiency and reliability, utilizing high-quality components and a sophisticated structural design. The main beam and end carriages are connected with high-strength bolts, simplifying transportation and installation. Ideal for a vast range of applications, this EOT (Electric Overhead Traveling) crane provides exceptional performance, making full use of the workshop space to lift materials safely and effectively.
Product Advantages
Heavy-Duty Capability
Engineered to handle substantial loads with a maximum capacity of up to 500 tons, making it suitable for the most demanding applications in construction, manufacturing, and energy sectors.
Customizable and Flexible Design
Offers a wide, customizable span from 4.5m to 31.5m and a maximum lifting height of 25m. This adaptability ensures the crane can be tailored to fit diverse operational layouts and workspace requirements.
Durable and Reliable Performance
Constructed with high-quality core components, including robust motors, bearings, and gearboxes. The crane’s design ensures long-lasting, reliable, and efficient operation with a comprehensive 1-year warranty for peace of mind.
Versatile Control Options
Provides multiple control methods, including remote control, pendant control, and cabin control. This flexibility allows operators to choose the most suitable and safest method for their specific work environment and task.
Simplified Installation and Maintenance
The bolt-connected structure between the main beam and end carriage allows for convenient disassembly and quick installation. The use of high-quality, sophisticated parts guarantees a long service life and reduces maintenance needs.
Application Scenarios
Manufacturing and Industrial Plants
Perfectly suited for machinery manufacturing, workshops, and production lines where precise and reliable handling of heavy materials and equipment is crucial for maintaining operational flow.
Warehousing and Material Storage
An ideal solution for warehouses and material stockyards to efficiently lift and move goods. The crane’s design maximizes the use of vertical and horizontal space, streamlining logistics.
Construction and Infrastructure Projects
Excellent for on-site construction operations, especially in large factories, for equipment hoisting and material handling, ensuring safety and efficiency in complex building projects.
Petroleum, Port, and Railway Industries
Widely used in demanding environments like petrochemical plants, ports, and railways for its robust construction, high lifting capacity, and reliable performance in critical material handling tasks.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1t to 20t (up to 500t available) |
| Span Coverage | 4.5m to 31.5m |
| Lifting Height | 3m to 25m or as per customer request |
| Work Level Classification | A4 to A7 duty cycle rating |
| Hoisting Mechanism | Electric Hoist or Trolley |
| Crane Type | Single or Double Girder |
| Control System | Remote Control, Pendent Control, Cabin Control |
| Power Supply | 3 Phase AC 380V 50HZ (Customizable) |
Features at a Glance
✓ Exceptional Load Capacity: Handles loads from 1 ton up to 500 tons for heavy-duty applications.
✓ Customizable Dimensions: Wide range of span and lifting heights to fit any workspace.
✓ Multiple Control Methods: Choose from remote, pendant, or cabin control for operational flexibility.
✓ High-Quality Components: Features premium brand electrical parts like Schneider for enhanced reliability.
✓ Robust Box-Type Structure: The main beam’s bias-rail box structure ensures strength and rigidity.
✓ Durable Forged Hooks: Equipped with high-capacity single or double hooks with safety latches.
✓ Easy Assembly: Bolt-connected design facilitates quick and straightforward installation.
FAQ
Q: What makes this European Type crane different from standard overhead cranes?
A: This crane is designed with a focus on a compact structure, strong rigidity, and easy operation. It uses high-quality components and a bolt-connected main beam for easier transportation and installation, offering superior performance and a beautiful appearance compared to traditional designs.
Q: Can the crane’s specifications be customized?
A: Yes, we offer extensive customization. The lifting capacity, span, lifting height, power source, and control methods can all be tailored to meet your specific operational needs and facility requirements.
Q: What kind of industries is this crane best suited for?
A: It is highly versatile and ideal for a wide range of industries, including machinery manufacturing, petroleum, petrochemical, ports, railways, food processing, building materials, and electronics for both on-site construction and material handling in workshops.
Q: What safety features are included with the crane?
A: The crane is equipped with a full range of safety systems that meet international standards. This includes overload limiters, high-quality forged hooks with safety latches, and reliable electrical components to ensure safe operation.
Q: What is the warranty and after-sales support for this product?
A: The crane comes with a 1-year warranty on all core components. We also provide a mechanical test report, video factory inspection, free replacement parts, and online technical support to ensure your confidence and satisfaction.
