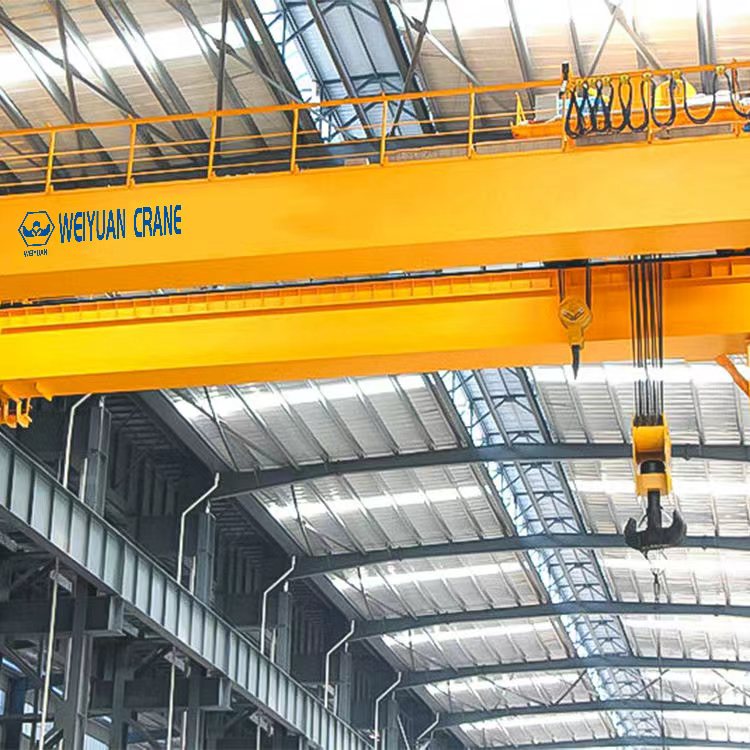

European Type Double Girder Overhead Bridge Crane
Product Overview
The European Type Double Girder Overhead Bridge Crane by Weiyuan is a state-of-the-art lifting solution designed for heavy-duty material handling across various industrial environments. Engineered with a lightweight, modular, and compact structure, this crane is horizontally framed over workshops, warehouses, and material yards for efficient transport of goods. It operates on crane beams installed along the height of a facility, allowing the entire system to travel horizontally on tracks. The crane’s advanced design, featuring a high-performance electric hoist or trolley, ensures superior safety, reliability, and operational efficiency, making it an indispensable asset for modern industrial operations.
Product Advantages
Heavy-Duty Lifting Capability
With a maximum lifting load of up to 500 tons, this crane is the ideal choice for demanding construction and manufacturing projects. It is perfectly suited for diverse industries, including building material shops, manufacturing plants, and energy and mining sectors.
Advanced and Versatile Applications
Engineered for a wide range of environments, the crane seamlessly integrates into various production settings such as food and beverage factories, agricultural operations, and large-scale construction works, demonstrating exceptional adaptability.
High-Speed, Efficient Movement
Featuring impressive traveling speeds of 20 m/min and 30 m/min, the crane facilitates rapid and efficient material handling. This enhances overall productivity and significantly reduces operational downtime.
Flexible Control Options
The crane offers multiple control methods, including remote control, pendant control, and cabin control. This provides operators with unparalleled flexibility, convenience, and safety to suit any operational requirement.
Comprehensive Warranty and Support
We provide a 1-year warranty for the crane and its core components, ensuring peace of mind for our customers. Additionally, mechanical test reports and video pre-delivery inspections are available to verify the product’s quality and reliability.
Application Scenarios
Manufacturing and Production
Essential for manufacturing plants, steel mills, and paper plants where the efficient movement of heavy raw materials and finished products is critical to maintaining a smooth and productive workflow.
Warehousing and Logistics
Ideal for large warehouses and material yards, this crane optimizes storage space and streamlines the loading and unloading of heavy goods, significantly improving logistical efficiency.
Construction and Infrastructure
Perfect for construction engineering projects, power plants, and pipe mills, providing the robust lifting power required to handle large components and materials with precision and safety.
Specialized Industrial Sectors
Its versatile design makes it suitable for use in diverse sectors like food & beverage plants, mining operations, and even waste disposal facilities, offering reliable performance in challenging environments.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 5t to 500t load range |
| Span Coverage | 4.5m to 31.5m maximum span |
| Lifting Height | Up to 25m vertical range |
| Work Level Classification | A4 to A7 duty cycle rating |
| Hoisting Mechanism | Electric Hoist or Winch Trolley |
| Power Supply | Three-phase AC 380V 50Hz (or customized) |
| Control System | Remote Control, Pendant Control, Cabin Control |
| Main Electrical Components | Schneider (or equivalent top brand) |
Features at a Glance
- Lifting capacity up to 500 tons for heavy-duty tasks
- Modular, lightweight, and compact structural design
- High-speed operation with 20–30 m/min traveling speed
- Compatible with both electric hoist and trolley mechanisms
- Multiple control options: remote, pendant, or cabin
- Suitable for diverse industries and demanding environments
- 1-year warranty with full testing and inspection support
FAQ
Q: What makes the European design superior to traditional overhead cranes?
A: The European design emphasizes a lightweight, compact, and modular structure. This results in lower wheel pressure, reduced building load requirements, enhanced energy efficiency, and a more aesthetically pleasing appearance without compromising on strength or performance.
Q: How do I select the appropriate work duty (A4-A7) for my operations?
A: The work duty classification depends on the crane’s usage frequency and load spectrum. A4 is suitable for light service, while A7 is for severe, heavy-duty continuous operations. Our experts can help you analyze your operational needs to recommend the perfect classification.
Q: What are the primary advantages of a double girder crane over a single girder crane?
A: Double girder cranes offer higher load capacities, greater lifting heights, and better stability for handling heavy and bulky loads. They are ideal for more demanding applications and provide a more robust platform for service and maintenance access.
Q: How does the bolt connection between the main beam and end carriage benefit installation?
A: Connecting the main components with high-strength bolts simplifies transportation and assembly. This design allows for quicker, more convenient disassembly and installation on-site, reducing setup time and labor costs.
Q: Can this crane be customized for my specific facility’s power supply?
A: Absolutely. While the standard power supply is three-phase AC 380V 50Hz, we can fully customize the crane’s electrical system to match your facility’s specific voltage and frequency requirements.
