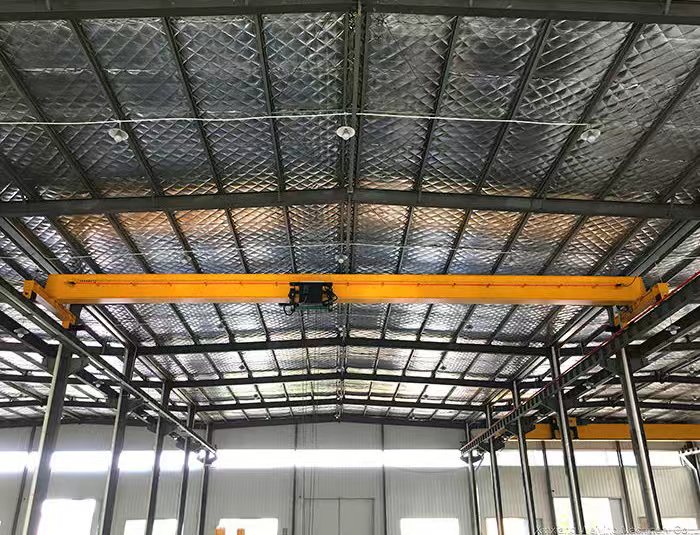

FEM/ISO Standard Monorail Electric Single Girder Overhead Crane
Product Overview
The Weiyuan FEM/ISO Standard Monorail Electric Single Girder Overhead Crane is an advanced material handling solution engineered for exceptional performance and reliability. Designed in strict accordance with FEM and ISO standards, this crane combines lightweight construction with a robust, modular design. It features a high-performance electric hoist and an efficient three-in-one drive system for smooth, precise travel. The integration of variable frequency speed regulation ensures superior control over all movements, enhancing operational safety and efficiency. Ideal for a wide range of industrial environments, this crane is optimized for workshops, warehouses, and assembly lines where reliable, precise, and efficient lifting is paramount.
Product Advantages
Compliance with International Standards
Engineered to meet rigorous FEM/ISO standards, ensuring the highest levels of quality, safety, and operational performance. This compliance guarantees a long service life and dependable operation in demanding industrial settings.
Lightweight and Modular Construction
The crane’s optimized, lightweight design reduces wheel pressure and minimizes structural stress on the building. Its modular nature simplifies transportation, installation, and maintenance, leading to lower overall costs.
Advanced Drive and Control Systems
Equipped with a compact “three-in-one” drive system (motor, reducer, brake) and variable frequency speed control, the crane offers smooth, stable, and quiet operation. This precision control minimizes load swing and allows for exact positioning.
High-Efficiency Hoisting Mechanism
Features a high-performance electric wire rope hoist that provides reliable and efficient lifting. The hoist is designed for durability and low maintenance, ensuring maximum uptime and productivity for your operations.
Enhanced Safety and Reliability
Multiple safety features, including overload protection, limit switches, and emergency stop functions, are integrated into the design. The robust construction and use of high-quality components ensure reliable performance and a safe working environment.
Application Scenarios
Manufacturing and Assembly Plants
Perfect for lifting and moving components, sub-assemblies, and finished products along production lines. Its precise control is ideal for delicate positioning tasks in automotive, electronics, and general manufacturing.
Warehousing and Logistics
Efficiently handles goods for loading, unloading, and stacking in warehouses and distribution centers. The crane’s wide span and high lift capacity maximize storage space and streamline material flow.
Workshops and Maintenance Facilities
An essential tool for machinery repair shops, maintenance bays, and fabrication workshops. It facilitates the lifting of heavy equipment, engines, and materials, improving workflow and worker safety.
Building Materials and Construction
Suitable for handling building materials in stores, production plants, and on construction sites. It reliably moves concrete blocks, steel beams, and other heavy materials, supporting efficient construction processes.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5t to 20t load range |
| Span Coverage | 6.5m to 28.5m maximum span |
| Lifting Height | 3m to 30m vertical range |
| Work Level Classification | A3 to A5 duty cycle rating |
| Hoisting Mechanism | Electric Wire Rope Hoist |
| Drive System | Three-in-one integrated drive device |
| Control System | Variable frequency speed regulation / Pendant / Remote Control |
| Power Supply | 380V 50Hz 3-phase (or customized) |
Features at a Glance
✓ Versatile Capacity: 0.5t to 20t lifting capacity suitable for a wide range of applications.
✓ Broad Span: Spans from 6.5m to 28.5m to cover extensive work areas.
✓ Variable Lifting Height: Customizable lifting heights from 3m to 30m.
✓ Durable Work Class: A3-A5 duty cycle rating for moderate to heavy industrial use.
✓ Flexible Control Options: Available with pendant control, wireless remote control, or cabin control.
✓ Efficient Power System: Standard 380V 50Hz 3-phase power supply, customizable to meet local requirements.
✓ Optimized Performance: Frequency conversion for smooth traveling speeds from 2 to 20 m/min.
FAQ
Q: What is the primary advantage of a crane built to FEM/ISO standards?
A: Cranes designed to FEM/ISO standards are globally recognized for their superior design, safety, and reliability. This ensures a higher-quality product with a longer operational life, lower maintenance needs, and enhanced performance compared to standard cranes.
Q: How does the variable frequency speed control benefit my operations?
A: Variable frequency control allows for smooth acceleration and deceleration, which reduces load swing and protects both the load and the crane structure from mechanical shock. It provides precise positioning capabilities, improves safety, and reduces energy consumption.
Q: Can the crane’s specifications be customized?
A: Yes. We offer full customization for key parameters including lifting capacity, span, lifting height, and power supply voltage to ensure the crane perfectly matches your facility’s specific requirements.
Q: What are the main differences between pendant, remote, and cabin control?
A: Pendant control is a hard-wired controller that hangs from the hoist, offering direct operation. Wireless remote control provides greater operator mobility and safety by allowing control from a distance. Cabin control offers the best protection and visibility for the operator in demanding or harsh environments.
Q: What kind of maintenance does this single girder overhead crane require?
A: The crane is designed for low maintenance. Regular inspections of the hoist, drive system, and electrical components are recommended, along with routine lubrication. The modular design simplifies access for any necessary service or parts replacement.
