LH Type Double Girder Overhead Crane 5–32 Ton | Workshop Duty, High Stability, CE-Compliant
Product Overview

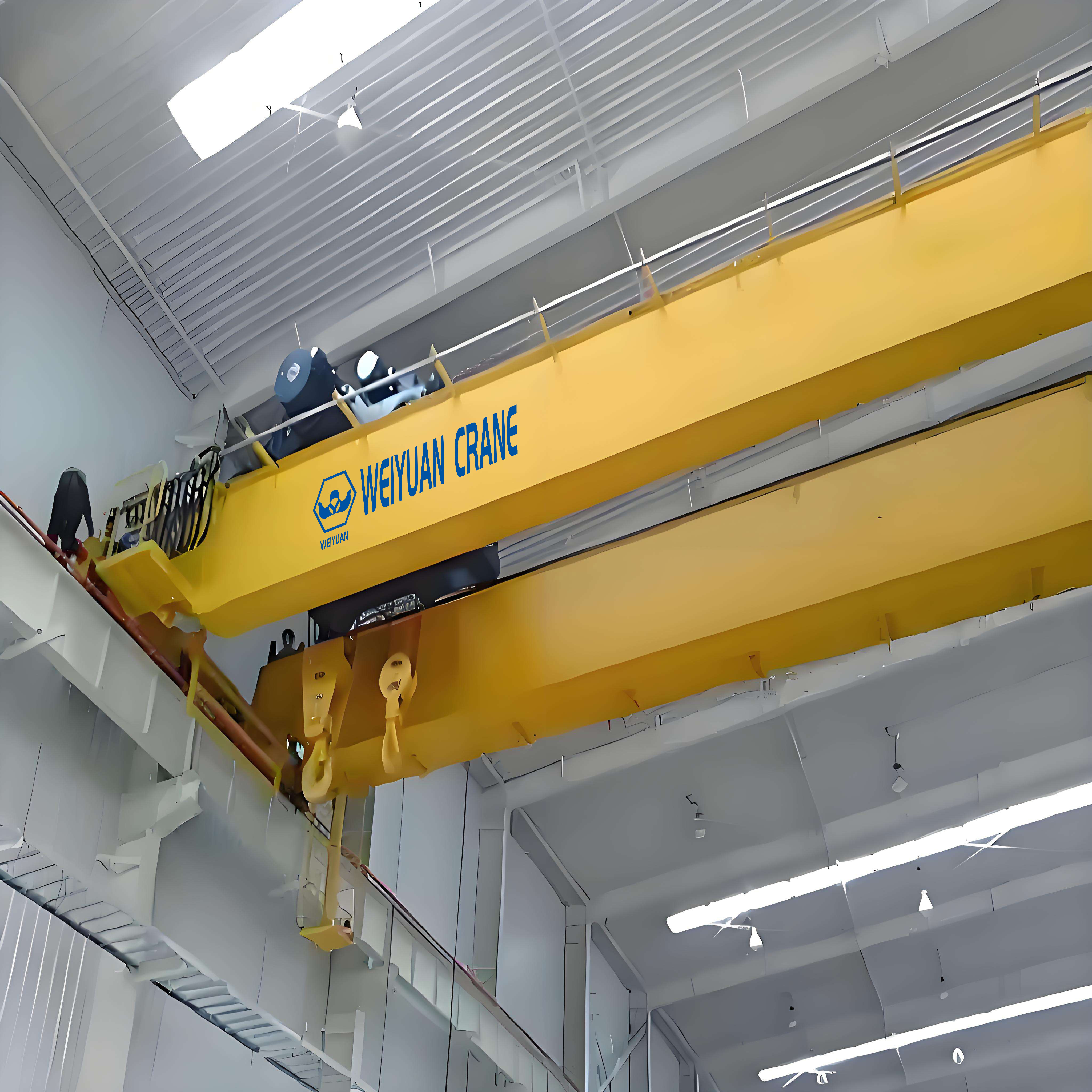

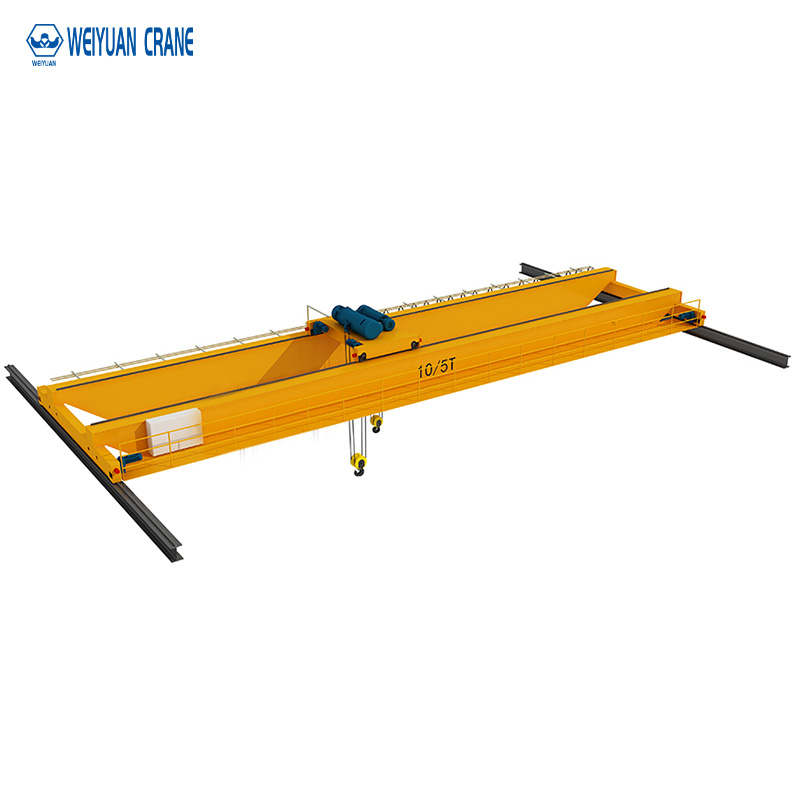

The LH Type Double Girder Overhead Crane is a robust and efficient lifting solution engineered specifically for workshop applications. It provides the superior strength and stability of a double-girder design while maintaining a compact profile, making it a significant upgrade over single-girder cranes for handling heavier loads. With typical capacities from 5 to 32 tons, this crane utilizes a standard CD/MD hoist trolley or a compact open winch running on top of the bridge beams. This configuration provides excellent lifting height and reliable performance for demanding industrial environments like manufacturing plants, machine shops, and assembly bays.
Product Advantages
- Superior Stability: The dual-girder structure offers exceptional torsional rigidity, significantly reducing sway and providing a more stable platform for lifting and transporting heavy or bulky loads safely.
- Increased Lifting Height: By placing the hoist trolley on top of the girders, the LH model achieves a greater hook height compared to an equivalent under-running single-girder crane, maximizing the vertical space in your workshop.
- Cost-Effective Heavy Lifting: This crane delivers the performance advantages of a double-girder system at a highly competitive price point by using standardized, readily available hoist trolley components.
- Durable and Reliable: Designed for A5 medium-duty work cycles, the LH crane is built with high-strength steel and proven components to ensure long-term durability and dependable operation in busy workshop environments.
- Enhanced Versatility: The strong, stable platform is ideal for adding various attachments, such as magnets, grabs, or turning devices, and it allows for true vertical lifts without the hook drift common in single-girder hoist designs.
Application Scenarios
- Manufacturing and Fabrication: A perfect workhorse for moving large fabrications, heavy steel plates, and machinery components with precision and stability in busy production areas.
- Machine Shops: Ideal for safely handling heavy molds, dies, and large workpieces, enabling efficient loading and positioning on heavy-duty CNC machines and presses.
- Assembly Plants: Provides the power and control needed to lift and assemble major components, such as engines, chassis, and heavy equipment frames.
- Maintenance Workshops: A reliable choice for lifting heavy industrial equipment, motors, and gearboxes for service, repair, and overhaul operations.
- Indoor Storage and Warehousing: Effectively handles heavy coils, structural steel bundles, and other oversized inventory in large-scale storage facilities.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 5t / 10t / 16t / 20t / 32t (Customizable) |
| Span | 10.5 m to 31.5 m (Customized to your workshop width) |
| Max. Lifting Height | 6 m to 30 m (Customized as per demand) |
| Work Duty | A5 (Medium Duty) |
| Lifting Speed | 1–10 m/min (Two-speed or VFD, speed varies with capacity) |
| Trolley Traveling Speed | 2–25 m/min (Two-speed or VFD) |
| Crane Traveling Speed | 20–80 m/min (Two-speed or VFD) |
| Hoist Type | CD/MD Wire Rope Hoist Trolley or Compact Open Winch Trolley |
| Hoist Motor | Dual-speed conical rotor brake motor or VFD-controlled motor |
| Travel Motors | Dual-speed or VFD-controlled gear motors |
| Control Methods | Cabin Control, Pendant Control, or Wireless Remote Control |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent premium brand |
| Safety Devices | Overload limiter, emergency stop, travel limiters, anti-collision system |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 (IP55 for demanding environments) |
| Paint/Finish | Sandblasted Sa2.5, anti-corrosion primer, and durable topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Forged steel wheels; Heavy-duty box-girder end carriages |
| Rail Size (typical) | P24, P38, P43 (Recommended for the application) |
| Braking | Electromagnetic disc brakes for all motors |
| Limit Switches | Included for all hoisting and travel motions |
| Documentation | Certificate of Conformity, Test Reports, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 25–40 days (negotiable for specific configurations) |
Features at a Glance
- LH type double girder crane optimized for workshop applications.
- Capacities from 5 to 32 tons for medium-duty lifting tasks.
- Provides superior stability and better lifting height.
- Cost-effective design utilizing reliable CD/MD hoist trolleys.
- CE-compliant and fully customizable for your specific operational needs.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
