LX Suspension EOT Crane 1–10 Ton | Factory Price, Space-Saving, CE-Compliant
Product Overview

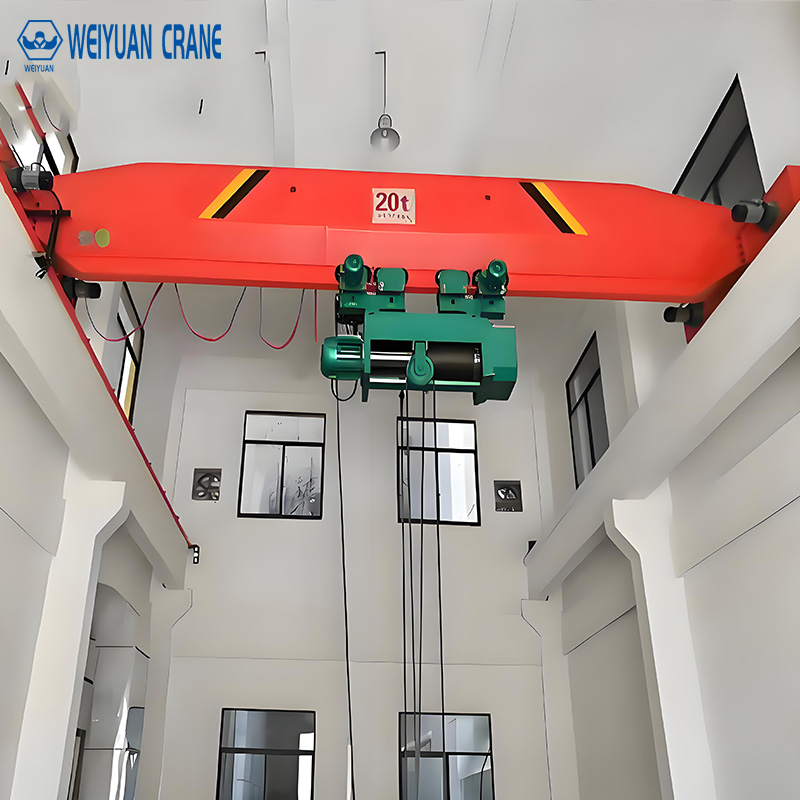

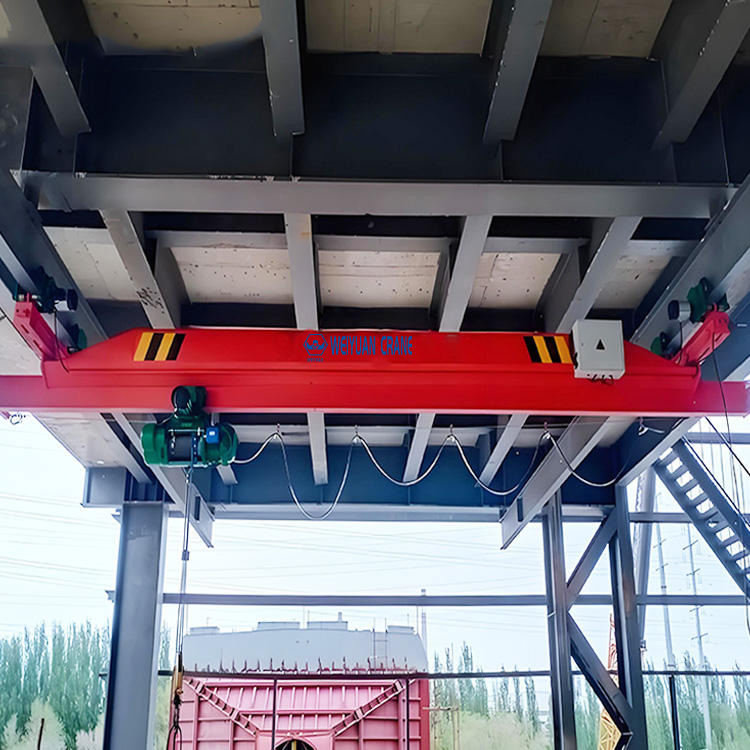

The LX Model EOT (Electric Overhead Travelling) Suspension Crane is a value-driven lifting solution designed to maximize efficiency in facilities with limited headroom. This under-running crane system operates by suspending the bridge from runway beams attached to the ceiling structure, which clears the factory floor of any support columns. Equipped with a reliable and cost-effective CD/MD type electric hoist, the LX model offers capacities from 1 to 10 tons. It is the ideal choice for workshops and warehouses seeking a high-performance, space-saving overhead crane at a competitive factory price.
Product Advantages
- Exceptional Value: Offered at a direct factory price, the LX model provides the benefits of an overhead crane system—such as clear floor space and improved safety—at a highly economical price point, ensuring a fast return on investment.
- Maximum Headroom and Space: The underslung design allows the crane to run closer to the ceiling, maximizing the available lifting height in facilities with low roofs. It can also utilize existing roof structures for support, eliminating the need for floor columns.
- Proven and Reliable Components: This crane uses the industry-standard CD/MD electric hoist, a proven workhorse known for its durability, simple design, and ease of maintenance, ensuring minimal downtime.
- Ideal for Light to Medium Duty: Engineered for A3-A4 work duties, it is perfectly suited for general-purpose lifting in manufacturing, assembly, and warehousing, providing reliable performance for everyday tasks.
- Compact and Efficient: The lightweight, single-girder construction and compact hoist design make it an efficient and practical solution for a wide range of indoor industrial environments.
Application Scenarios
- Low-Headroom Workshops: An excellent solution for older buildings or modern facilities with low ceilings, providing effective lifting where a top-running crane cannot.
- Light Manufacturing and Assembly: Perfect for moving components, tools, and sub-assemblies between workstations, improving workflow and reducing manual handling.
- Warehouse and Storage Bays: Efficiently lifts goods and pallets over shelving and racking systems, providing full coverage across a storage bay without obstructing aisles.
- Maintenance and Repair Facilities: Provides safe and easy lifting of parts and equipment in service bays where clear floor space is essential for vehicle or machinery access.
- Food Production and Clean Rooms: The suspended design without floor columns makes it easier to clean and maintain hygienic standards.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 1t / 2t / 3t / 5t / 10t (Customizable) |
| Span | 3 m to 22.5 m (Customized to your facility width) |
| Max. Lifting Height | 3 m to 12 m (Optimized for low-headroom applications) |
| Work Duty | A3–A4 (Light to Medium Duty) |
| Lifting Speed | 4–8 m/min (Single or dual speed) |
| Trolley Traveling Speed | 2–20 m/min (Single or dual speed) |
| Crane Traveling Speed | 10–40 m/min (Single or dual speed) |
| Hoist Type | CD (Single Speed) / MD (Dual Speed) Electric Wire Rope Hoist |
| Hoist Motor | Conical rotor brake motor |
| Travel Motors | “Three-in-one” soft start or conical rotor brake motors |
| Control Methods | Pendant Control (Standard), Wireless Remote Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent reliable brand |
| Safety Devices | Overload limiter (optional), emergency stop, travel limiters |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 |
| Paint/Finish | Industrial anti-corrosion primer and enamel topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Forged steel wheels for under-running operation |
| Rail Size (typical) | Suspended from I-beam or custom runway profile |
| Braking | Electromagnetic disc brakes for all motors |
| Limit Switches | Included for hoisting, cross travel, and long travel |
| Documentation | Certificate of Conformity, Test Reports, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 15–30 days (negotiable for specific configurations) |
Features at a Glance
- Economical LX model suspension crane offered at a competitive factory price.
- Space-saving under-running design is perfect for low-headroom facilities.
- Utilizes a reliable and easy-to-maintain CD/MD electric hoist.
- Keeps factory floors free of columns for maximum workspace.
- CE-compliant and customizable for light to medium-duty applications.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
