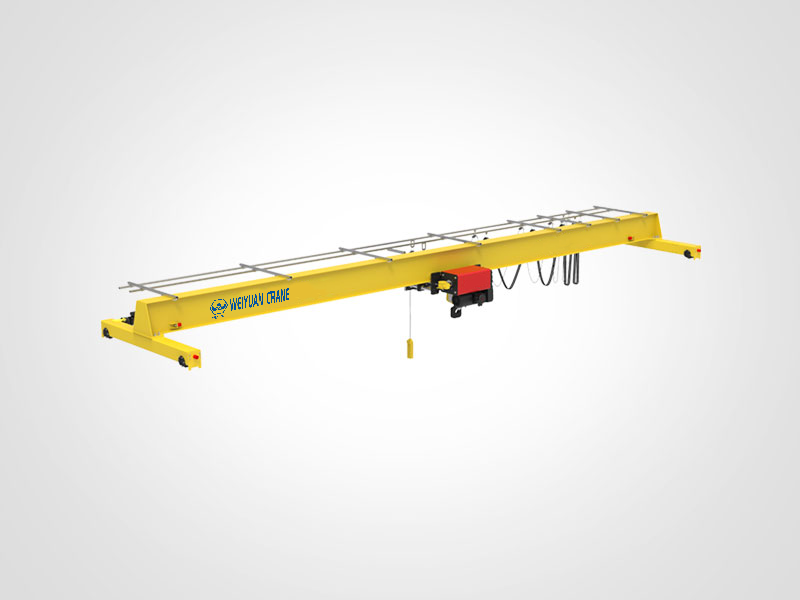

New Chinese Explosion-Proof Electric Single-Beam Crane
Product Overview
The New Chinese Explosion-Proof Electric Single-Beam Crane is a specialized material handling solution engineered by Weiyuan, featuring advanced explosion-proof technology combined with cutting-edge low-headroom electric hoist mechanisms for safe operation in hazardous environments. This sophisticated single-beam crane system incorporates superior performance, safety, reliability, energy efficiency, and environmental sustainability through innovative lightweight, modular, and parametric design principles specifically engineered for explosive atmospheres. The crane utilizes a New Chinese low-headroom explosion-proof electric hoist with state-of-the-art technology, featuring an original spatial rod support structure and classic “C” type hoisting device arrangement. The large-diameter drum group and coaxial three-in-one drive device ensure precise operational control in potentially explosive environments while maintaining optimal workspace utilization.
Product Advantages
Comprehensive Explosion-Proof Certification
Meets rigorous national standards including Explosion-proof Electric Hoist (JB/T 10222), Explosive Environment Part 1 (GB3836.1), and Explosive Environment Part 2 (GB3836.2), ensuring safe operation in explosive gas environments with explosion-proof levels up to ExdⅡCT4.
Independent and Controllable Core Technology
Developed in cooperation with key universities and research institutions, featuring completely independent manufacturing of core components with controllable product quality and delivery time, ensuring superior explosion-proof three-phase induction motors with variable frequency electromagnetic braking.
Advanced Modular Design
Features four hoisting drives and two running drives that can match with full series 1-20t New Chinese electric hoists, with the same hoisting devices usable in four structures: standard headroom mode, low headroom mode, crab running type mode, and fixed type mode.
Maintenance-Free and Energy-Efficient Design
Incorporates high-precision hardened face gear reducers pre-filled with premium lubricating oil, maintenance-free steel rope, high-strength nylon fairlead, electromagnetic disc brake with automatic clearance compensation, and 30% reduced motor power consumption compared to traditional electric hoists.
Intelligent Remote Monitoring
Features security monitoring, big data management with cloud platform connection, and real-time monitoring via mobile APP for enhanced operational oversight and predictive maintenance capabilities in explosion-proof environments.
Application Scenarios
Chemical and Petrochemical Industries
Essential for chemical processing plants, refineries, and petrochemical facilities requiring safe material handling in explosive atmospheres with gases such as hydrogen, acetylene, ethane, propane, and other hazardous substances up to 16t capacity.
Paint and Coating Manufacturing
Perfect for paint shops, coating operations, and solvent-based manufacturing where volatile organic compounds create explosive atmospheres requiring certified explosion-proof material handling solutions with precise single-beam control.
Pharmaceutical and Fine Chemical Production
Ideal for pharmaceutical facilities and fine chemical production where solvents and volatile compounds create hazardous environments requiring reliable explosion-proof lifting equipment with contamination-free operation and compact design.
Food Processing and Alcohol Production
Designed for food processing facilities, breweries, and alcohol production where organic vapors and combustible materials create explosive atmospheres requiring safe material handling with hygienic design considerations and minimal working blind areas.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1t to 16t load range |
| Span Coverage | 3m to 34.5m maximum span |
| Lifting Height | 6m to 30m vertical range |
| Work Level Classification | A5 duty cycle rating (M5 for hoist) |
| Operating Temperature | -20°C to +40°C environmental range |
| Explosion-Proof Rating | ExdⅡBT4 and ExdⅡCT4 certified |
| Hazardous Area Classification | Zone 1 and Zone 2 approved |
| Motor Protection Grade | IP65 with F-class insulation |
Features at a Glance
✓ Explosion-Proof Certification: ExdⅡBT4 and ExdⅡCT4 ratings for comprehensive hazardous gas compatibility
✓ Zone 1 & 2 Approved: Certified for operation in Zone 1 and Zone 2 hazardous areas with full safety compliance
✓ Compact Single-Beam Design: Large-diameter drums for increased hoisting height and reduced left/right limits
✓ Maintenance-Free Operation: Pre-filled reducers, maintenance-free steel rope, and automatic brake clearance compensation
✓ Energy-Efficient Performance: 30% reduced motor power with 20% increased work efficiency through frequency conversion technology
✓ Silent Operation: Noise levels below 70 dB with high-strength nylon components for clean operation
✓ Intelligent Monitoring: Security monitoring, big data management, and mobile APP real-time monitoring capabilities
FAQ
Q: Which hazardous gases are compatible with this explosion-proof crane?
A: The crane is certified for ExdⅡBT4 gases (ethane, propane, gasoline, acetone, benzene, methanol, toluene, vinyl chloride, etc.) and ExdⅡCT4 gases (hydrogen, water gas, acetylene), covering most industrial explosive atmospheres with ignition temperatures not lower than T4 (135°C).
Q: What makes the “C” type structure design advantageous for explosion-proof applications?
A: The classic “C” type structure with spatial rod support provides optimal load distribution, minimizes working blind areas, and ensures safe operation in explosive atmospheres while maximizing workspace utilization and reducing structural complexity.
Q: How does the maintenance-free design benefit explosion-proof operations?
A: The maintenance-free design reduces the need for frequent servicing in hazardous areas, minimizing personnel exposure to explosive atmospheres while ensuring continuous reliable operation through pre-filled reducers, maintenance-free components, and automatic systems.
Q: What intelligent monitoring capabilities are available for explosion-proof environments?
A: The crane features comprehensive security monitoring, big data management with cloud platform connectivity, and real-time mobile APP monitoring, enabling remote oversight while maintaining explosion-proof safety standards.
Q: How does the modular design enhance flexibility in explosion-proof applications?
A: The modular design allows the same hoisting devices to be configured in four different structural modes (standard headroom, low headroom, crab running, and fixed type), providing optimal solutions for diverse explosion-proof facility requirements.
