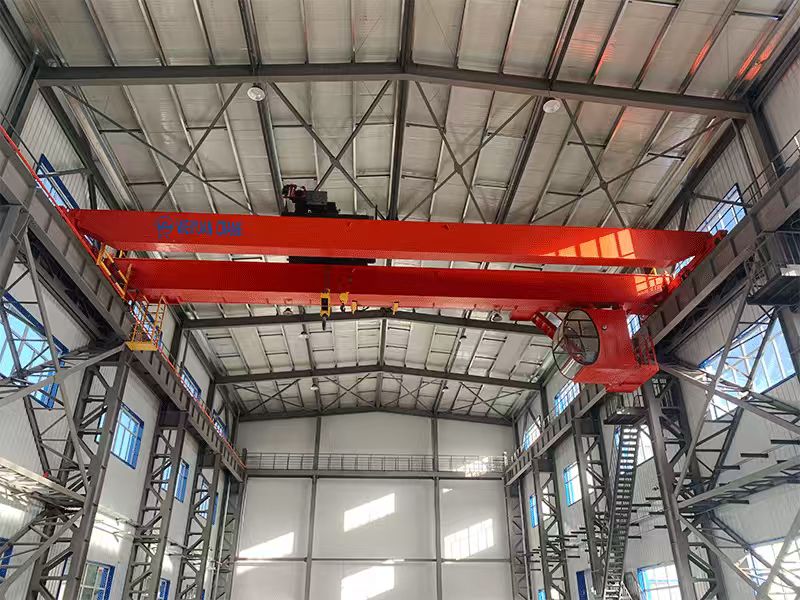

New Chinese Windlass Double-Beam Crane
Product Overview
The New Chinese Windlass Double-Beam Crane represents the pinnacle of heavy-duty material handling technology, engineered by Weiyuan with cutting-edge windlass crab hoisting mechanisms for exceptional performance in demanding industrial environments. This advanced double-beam crane system combines superior performance, safety, reliability, energy efficiency, and environmental sustainability through innovative lightweight, modular, and parametric design principles. The crane incorporates a sophisticated New Chinese windlass crab with high integration capabilities, while both trolley and crab traveling mechanisms utilize advanced three-in-one drive devices paired with state-of-the-art variable frequency speed regulation control systems for precise operational control across all lifting operations.
Product Advantages
High-Integration Windlass Crab System
Features advanced New Chinese windlass crab with exceptional integration capabilities, providing superior hoisting performance with enhanced reliability and reduced maintenance requirements for demanding heavy-duty applications.
Advanced Modular Architecture
Incorporates comprehensive modular design with 8 drive units compatible with 15 different motor power configurations, enabling flexible customization, simplified maintenance procedures, and reduced operational complexity for enhanced cost-effectiveness.
Dual Three-in-One Drive Systems
Utilizes sophisticated three-in-one drive devices for both trolley and crab traveling mechanisms, providing integrated transmission solutions with energy-saving performance and high efficiency across all crane movements.
Ultra-Heavy Capacity Performance
Engineered to handle exceptional loads from 5t to 320t with lifting heights up to 100m and spans reaching 60m, making it ideal for the most demanding industrial applications and large-scale operations.
Silent Transmission Technology
Features advanced silent drive systems with active noise cancellation, significantly reducing workshop noise pollution and creating comfortable working environments while meeting stringent industrial noise standards.
Application Scenarios
Heavy Industry and Steel Production
Essential for steel mills, foundries, and heavy manufacturing facilities requiring ultra-high capacity material handling with exceptional lifting heights for large-scale industrial processes and heavy component assembly.
Power Generation and Energy Infrastructure
Perfect for power plants, nuclear facilities, and renewable energy installations where reliable ultra-heavy lifting capabilities are crucial for turbine installation, reactor maintenance, and large equipment positioning.
Shipbuilding and Marine Construction
Ideal for shipyards, offshore construction, and marine facilities requiring heavy-duty lifting with extended spans for ship assembly, large component handling, and maritime infrastructure development.
Mining and Extractive Industries
Designed for mining operations, quarries, and extractive facilities where robust heavy-lifting capabilities with high work levels (A3-A7) ensure reliable performance in harsh industrial environments.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 5t to 320t load range |
| Span Coverage | 5m to 60m maximum span |
| Lifting Height | 5m to 100m vertical range |
| Work Level Classification | A3 to A7 duty cycle rating |
| Hoisting Mechanism | New Chinese windlass crab with high integration |
| Drive System | Dual three-in-one integrated drive devices |
| Control System | Variable frequency speed regulation |
| Structure Type | Lightweight modular parametric design |
Features at a Glance
✓ Ultra-Heavy Capacity: 5t to 320t lifting capacity with exceptional 100m lifting height capability
✓ Extended Span Coverage: Up to 60m span capacity for large-scale industrial operations
✓ High-Integration Windlass: Advanced windlass crab system with superior integration and reliability
✓ Dual Drive Systems: Three-in-one drive devices for both trolley and crab mechanisms
✓ Variable Work Levels: A3 to A7 duty cycle classifications for diverse operational requirements
✓ Silent Operation: Advanced transmission technology for reduced noise and environmental impact
✓ Intelligent Control Suite: Complete range of smart functions including anti-sway and multi-system coordination
FAQ
Q: What makes the windlass crab system superior for heavy-duty applications?
A: The New Chinese windlass crab features high integration design with superior load capacity, enhanced reliability, and reduced maintenance requirements, making it ideal for ultra-heavy lifting applications from 5t to 320t.
Q: How does this crane handle extreme lifting heights and spans?
A: The crane is engineered with advanced structural design and dual three-in-one drive systems to safely handle lifting heights up to 100m and spans up to 60m, providing exceptional performance for large-scale industrial operations.
Q: What work levels are available for different operational requirements?
A: The crane offers work level classifications from A3 to A7, accommodating everything from light intermittent use to heavy continuous duty cycles, ensuring optimal performance for diverse industrial applications.
Q: How do the dual three-in-one drive systems enhance performance?
A: The dual drive configuration for trolley and crab mechanisms provides integrated transmission with energy-saving performance, high efficiency, and enhanced control precision across all crane movements.
Q: Can this crane integrate with smart manufacturing systems?
A: Yes, optional wireless modules enable connection to the Crane Industrial Internet Platform, providing full lifecycle management, remote monitoring, and seamless integration with Industry 4.0 manufacturing systems.
