Overhead Crane for Casting
Product Overview

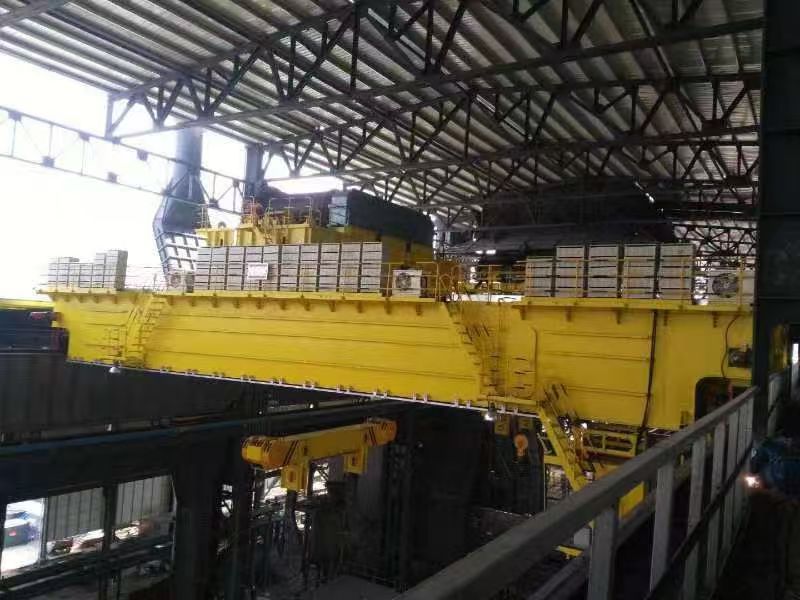

The Overhead Crane for Casting by Weiyuan is a specialized, heavy-duty lifting solution engineered specifically for lifting and transporting molten metal in the harsh environment of the metallurgical industry. This crane is designed with multiple layers of protection, redundant mechanisms, and advanced control technologies to ensure maximum safety and reliability. Featuring a special crab for metallurgy and robust travel mechanisms, it offers exceptional durability, efficiency, and convenience. With a very high work level (A7-A8), this crane is built for the most demanding, high-temperature, and critical applications in steel mills, foundries, and other metallurgical plants.
Product Advantages
Ultimate Safety and Reliability
Designed from the ground up for handling molten metal, this crane incorporates multiple protection measures and redundant mechanisms. This ensures that in the event of a component failure, a backup system is in place, providing the highest level of safety for a critical process.
Extreme Durability for Harsh Environments
Built to withstand the intense heat, dust, and continuous operation of a metallurgical plant. It uses special motors and reducers for metallurgy and a specialized crab designed for high-temperature environments, guaranteeing a long and durable service life.
High-Duty, High-Capacity Performance
With a work level of A7-A8 and lifting capacities up to 320 tons, this crane is engineered for the most severe and continuous industrial applications, providing efficient and relentless performance in foundries and steel mills.
Advanced and Precise Control
Utilizes advanced control systems, which can include various speed regulation options as required. Intelligent functions like electric anti-sway, inching, and zero-speed hover provide the precise, stable control necessary for safely pouring molten metal.
Multiple Protection Technologies
Integrates a comprehensive suite of safety technologies, including impact-proof limits, regional load limits to create no-go zones, and multi-hook coordination to ensure synchronized lifting, all contributing to a safer work environment.
Efficient and Convenient Operation
The combination of advanced controls, high speeds, and robust design makes the entire process of lifting and transporting ladles of molten metal both efficient and convenient, minimizing cycle times and maximizing productivity.
Application Scenarios
Steel Mills and Foundries
This is the crane’s primary application, where it is used for charging furnaces, transporting ladles of molten steel or iron, and performing teeming (pouring) operations in continuous casting.
Smelting and Refining Operations
Ideal for non-ferrous metallurgical plants, such as aluminum or copper smelters, for handling crucibles and ladles of molten metal during the smelting and refining processes.
Large-Scale Casting Facilities
Essential for any large-scale foundry that produces large castings, where heavy ladles must be transported safely and poured with high precision.
Hot Rolling Mills
Can be used in the initial stages of hot rolling mills for handling the transfer of molten metal to the casting machines before the rolling process begins.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 75t – 320t |
| Span | 10m – 40m |
| Lifting Height | 15m – 30m |
| Work Level Classification | A7 – A8 |
| Hoisting Mechanism | Special Crab for Metallurgy |
| Travel Mechanism | Special Motor Reducer for Metallurgy |
| Key Feature | Multiple protection and redundant systems |
Features at a Glance
✓ Extreme Duty Rating: A7-A8 work level for the most severe industrial use.
✓ Redundant Safety Systems: Multiple layers of protection for handling molten metal.
✓ High-Temperature Design: Engineered to operate reliably in extreme heat.
✓ Heavy Lifting Capacity: Handles loads from 75t up to 320t.
✓ Advanced Precision Control: VFD and intelligent functions for safe, accurate pouring.
✓ Durable Metallurgical Components: Uses specialized crabs and motors.
✓ Wireless Expansion Ready: Connects to the Weiyuan Crane Industrial Internet Platform.
FAQ
Q: What makes a casting crane different from a standard overhead crane?
A: Casting cranes are fundamentally different due to the critical nature of their load. They are built with higher safety factors, redundant systems (e.g., brakes, motors), heat shields, and specialized components designed to withstand the extreme heat and harsh conditions of a foundry. They have a much higher work-level classification (A7-A8) than general-purpose cranes.
Q: What does “redundant mechanism” mean?
A: A redundant mechanism means that critical components, like the braking system or parts of the hoist, have a backup. If one part fails, the backup system automatically engages to prevent the load from falling, which is an essential safety feature when handling molten metal.
Q: What is the work level of A7-A8, and why is it important?
A: A7 and A8 are very high-duty classifications that signify the crane is designed for near-continuous operation under severe conditions with heavy loads. This is crucial in a steel mill or foundry where the crane is a core part of a non-stop production process.
Q: How does the crane maintain stability while carrying a liquid load?
A: The crane uses advanced controls like a variable frequency drive (VFD) for smooth acceleration/deceleration and an electric anti-sway function. These systems work together to minimize swinging of the ladle, ensuring a stable and safe transport of the molten metal.
Q: Can this crane operate in a fully automated steel mill?
A: Yes. With its advanced control systems and the optional wireless expansion module, the casting crane can be fully integrated into an automated plant management system, performing its tasks based on commands from a central control room with minimal human intervention.
