General purpose overhead crane
Overhead Monorail Bridge Crane System | 20m Span, Customizable, CE-Compliant
Product Overview

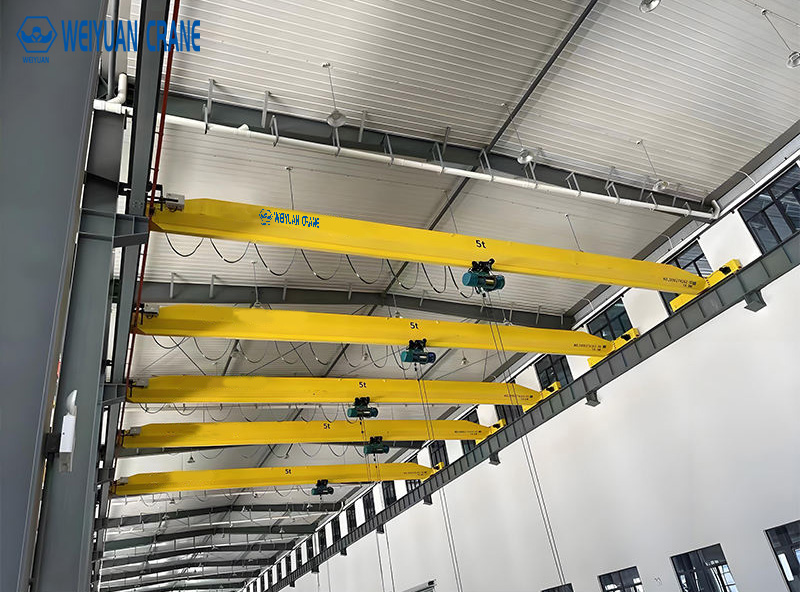

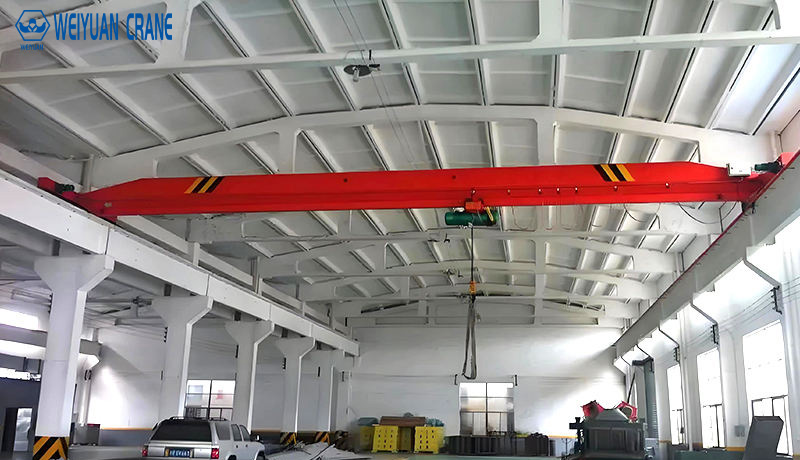

The Overhead Monorail System Bridge Crane is a complete, factory-engineered lifting solution designed for efficient material handling within a facility. This system includes a single girder bridge crane, typically with a span up to 20 meters, that travels along an elevated runway structure supported by the building’s columns. Equipped with a reliable CD/MD electric hoist, this crane provides full lifting coverage over its operational area. It is an essential, cost-effective system for workshops, warehouses, and production facilities that require safe and dependable overhead lifting capabilities.
Product Advantages
- Complete System Solution: This is a fully integrated system that includes the crane bridge, hoist, end carriages, and runway structure, ensuring perfect compatibility and streamlined procurement from a single source.
- Efficient Space Utilization: By operating overhead, the crane keeps the floor free from obstructions, maximizing usable workspace for production, storage, and personnel movement.
- Cost-Effective and Reliable: The proven single-girder design paired with a standard CD/MD hoist offers a highly economical solution for general-purpose lifting without compromising on reliability or safety.
- Smooth and Dependable Operation: Engineered for smooth travel along the runway, this system provides stable and efficient movement of loads throughout the crane’s coverage area, boosting productivity.
- Customized for Your Building: The entire system, including the runway length, span, and lifting height, is engineered to fit the specific dimensions and structural requirements of your facility.
Application Scenarios
- Manufacturing Plants: Ideal for moving materials and components along a production line, from raw material receiving to finished goods shipping.
- Warehouses and Logistics Centers: An essential tool for loading and unloading trucks, stacking heavy inventory, and moving goods within the facility.
- Maintenance Workshops: Perfect for lifting heavy machinery, engines, and other large components for service, repair, and overhaul.
- Assembly Bays: Provides reliable overhead lifting for assembling large products, aligning heavy parts, and streamlining the assembly process.
- General Fabrication Shops: A workhorse for handling steel plates, fabricated sections, and other materials in a busy workshop environment.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 1t / 2t / 3t / 5t / 10t (Customizable) |
| Span | Up to 20 m (Customized to your facility width) |
| Max. Lifting Height | 6 m to 30 m (Customized as per demand) |
| Work Duty | A3–A4 (Light to Medium Duty) |
| Lifting Speed | 4–8 m/min (Single or dual speed) |
| Trolley Traveling Speed | 2–20 m/min (Single or dual speed) |
| Crane Traveling Speed | 10–60 m/min (Single or dual speed) |
| Hoist Type | CD (Single Speed) / MD (Dual Speed) Electric Wire Rope Hoist |
| Hoist Motor | Conical rotor brake motor |
| Travel Motors | “Three-in-one” soft start or conical rotor brake motors |
| Control Methods | Pendant Control (Standard), Wireless Remote Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent reliable brand |
| Safety Devices | Overload limiter (optional), emergency stop, travel limiters |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 |
| Paint/Finish | Industrial anti-corrosion primer and enamel topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Forged steel wheels; Standard box-section end carriages |
| Rail Size (typical) | P24, P38 (Recommended for the application) |
| Braking | Electromagnetic disc brakes for all motors |
| Limit Switches | Included for hoisting, cross travel, and long travel |
| Documentation | Certificate of Conformity, Test Reports, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 20–35 days (negotiable for specific configurations) |
Features at a Glance
- Complete overhead monorail and bridge crane system.
- Economical single girder design with a reliable CD/MD hoist.
- Keeps facility floors clear for maximum operational space.
- Custom-engineered to fit your building’s specific dimensions.
- CE-compliant system for safe, efficient, and reliable performance.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
