Portable A-Frame Gantry Crane
Product Overview

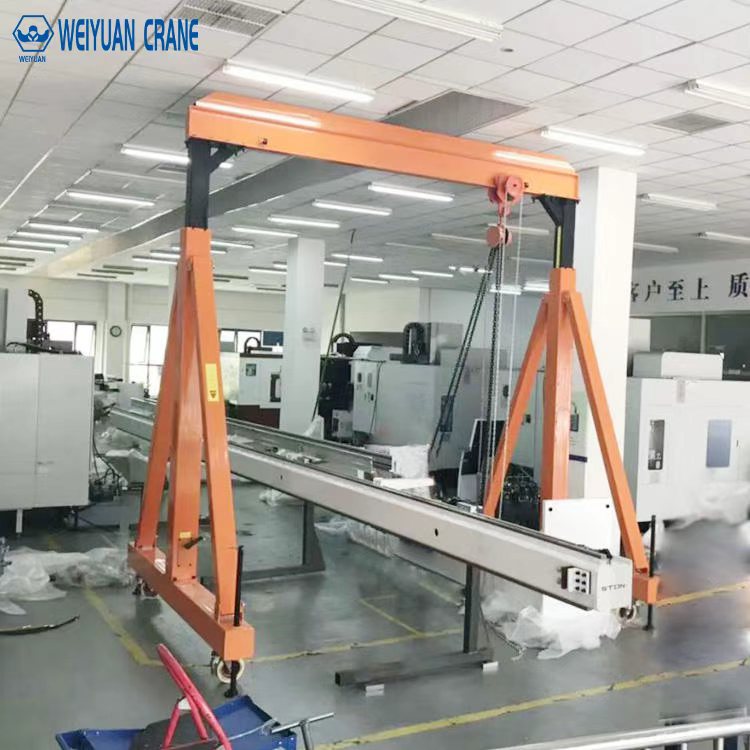

The Small Wheel-Type Single Beam Gantry Crane is a highly versatile and portable lifting solution perfect for facilities where a permanent overhead crane is not practical or necessary. This A-frame gantry crane features a single main beam supported by two steel legs equipped with durable polyurethane wheels, allowing it to be easily moved to any location. It can be configured for manual push movement or with electric travel motors for powered operation. Ideal for workshops, garages, and warehouses, it provides a flexible and cost-effective way to lift and move materials.
Product Advantages
- Maximum Mobility and Flexibility: Equipped with high-quality wheels, this gantry crane can be easily moved around your facility, providing lifting capability exactly where you need it, both indoors and outdoors.
- Cost-Effective Lifting Solution: A small gantry crane is an economical alternative to a permanent overhead crane, requiring no building structure support or fixed runway installation, saving on both initial investment and installation costs.
- Easy Assembly and Portability: The simple, bolted structure is easy to assemble, disassemble, and transport, making it perfect for temporary job sites, rental fleets, or facilities with changing layout needs.
- Adjustable and Versatile: Many models offer adjustable height and span, allowing the crane to pass through doorways and adapt to different work environments and lifting requirements.
- Safe and Reliable Operation: Despite its portability, this crane is built with a robust steel frame and can be paired with a reliable electric hoist, ensuring safe and efficient handling of loads up to 10 tons.
Application Scenarios
- Workshops and Garages: Ideal for lifting engines, transmissions, and heavy components out of vehicles for maintenance and repair.
- Manufacturing and Assembly: Perfect for moving parts, dies, and materials to and from workstations where overhead access is limited.
- Warehousing and Loading Docks: A flexible solution for lifting heavy items from trucks or moving inventory in areas not serviced by a forklift or overhead crane.
- Outdoor Job Sites: Easily transportable for on-site construction, installation, or maintenance tasks, such as lifting pumps, motors, or HVAC units.
- Rental Fleets: A popular choice for equipment rental companies due to its portability, versatility, and ease of setup.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 0.5t / 1t / 2t / 3t / 5t / 10t (Customizable) |
| Span | 2 m to 12 m (Customized to your workspace) |
| Max. Lifting Height | 2 m to 9 m (Adjustable height models available) |
| Work Duty | A3–A4 (Light to Medium Duty) |
| Lifting Speed | 4–8 m/min (Two-speed on hoist) or as specified |
| Trolley Traveling Speed | Manual push trolley or 2–20 m/min (Electric) |
| Crane Traveling Speed | Manual push or 5–20 m/min (Electric motorized) |
| Hoist Type | Electric Chain Hoist or Electric Wire Rope Hoist |
| Hoist Motor | Standard hoist motor with brake |
| Travel Motors | Optional gear motors for powered travel |
| Control Methods | Pendant Control for hoist, Manual push for travel |
| Power Supply | Single Phase 220V or 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent brand |
| Safety Devices | Overload limiter (optional on hoist), emergency stop |
| Working Temperature | -20°C to +40°C |
| Protection Class | IP54 |
| Paint/Finish | Industrial safety yellow primer and high-visibility topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Heavy-duty polyurethane wheels (swivel with brakes) |
| Rail Size (typical) | N/A (Operates on flat concrete floor) |
| Braking | Hoist electromagnetic brake; Wheel locking brakes |
| Limit Switches | Hoisting up/down limit switches |
| Documentation | Certificate of Conformity, Manuals, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 15–25 days (negotiable for specific configurations) |
Features at a Glance
- Portable A-frame design with capacities from 0.5 to 10 tons.
- Easily movable on durable, locking polyurethane wheels.
- Available in manual push or motorized travel configurations.
- Cost-effective alternative to fixed overhead cranes.
- CE-compliant, customizable design for indoor and outdoor use.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
