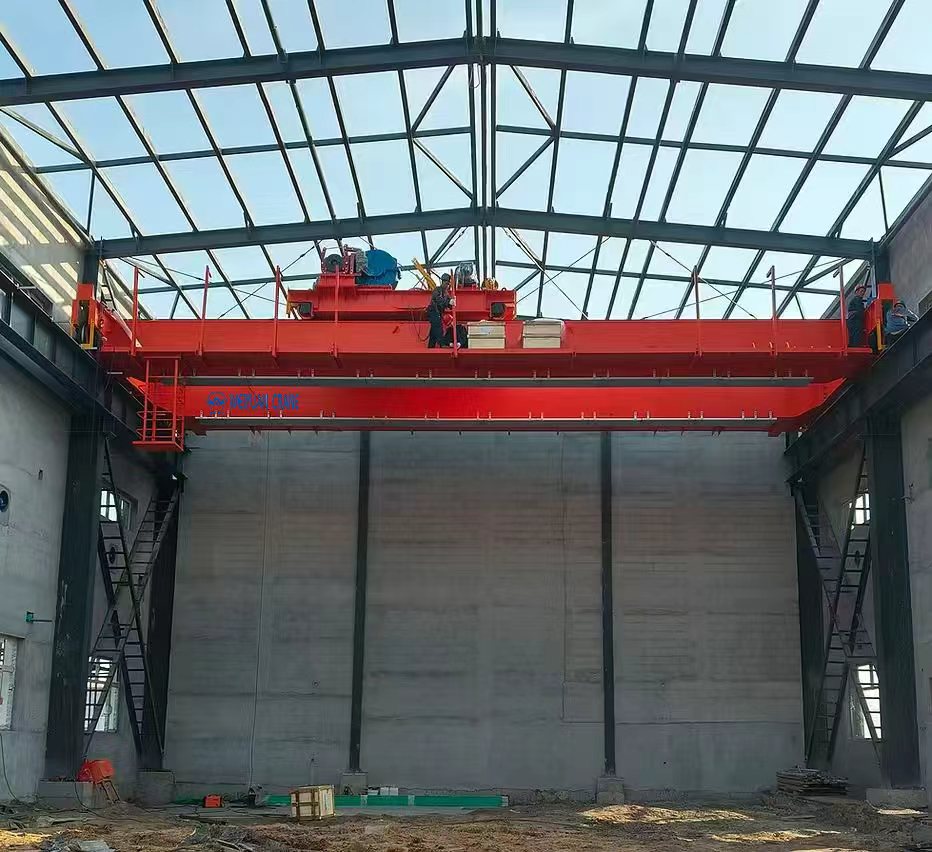

QY Insulated Overhead Crane
Product advantages
- The QY type insulated hook bridge crane is suitable for smelting workshops of non-ferrous metal electrolytic aluminum, magnesium, lead, zinc, etc.
- This crane is mainly composed of a bridge frame, a large vehicle operating mechanism, a small vehicle, electrical equipment, etc. In order to prevent the current on the live equipment from being transmitted to the crane through the lifted components during operation, which may endanger the life of the driver and the safety of the equipment, several insulation devices are installed at appropriate positions of the crane.
- This crane operates on a heavy-duty system.
To ensure lifting safety, the lifting mechanism is equipped with dual brakes. - All the movements and operations of the crane are completed in the driver’s cab.
Application scenarios
- Power Industry
- Installation and maintenance of high-voltage electrical equipment in substations and power plants.
- Lifting large transformers, high-voltage switchgear, reactors, and other equipment that may be live or prone to electrification.
- Electrical Manufacturing & Maintenance
- Used in motor manufacturing plants, transformer factories, and cable production workshops.
- For assembling, testing, or repairing components that may carry electrical current, reducing leakage risks.
- Rail Transit Power Supply Systems
- In metro, high-speed rail, and electrified railway substations or maintenance workshops.
- Lifting pantographs, high-voltage isolators, and power control cabinets.
- Metallurgy and Large Industrial Enterprises
- In steel plants or large factories with integrated high-voltage transmission systems.
- For transporting tools, spare parts, and equipment near energized electrical installations.
- Ports and Ship Electrical Systems
- In shipyards or port areas with high-voltage shore power supply systems.
- For hoisting ship generators, high-voltage distribution panels, and marine electrical equipment.
Product specifications and dimensions
| Specific parameters (take 20 tons as an example) | |||
| Crane traveling mechanism | WorkKing speed(m/min) | 20 Ground | |
| Speed ratio | 58.78 | ||
| Motor | Type | YSE90L-4 | |
| Power(Kw) | 4+1.5 | ||
| Rotation speed(n/min) | 7.5≤Ss≤31.5 | ||
| Lifting Mechanism(electri c hoist)&electric hoist traveling mechanism | Model ofeelectric hoist | CD1Model | MD1Model |
| Lifting speed(m/min) | 3.5 | 3.5/0.35 | |
| Hoisting height(m) | 9、12、、18、24、30 | ||
| Traveling speed(m/min) | 20 | ||
| motor | Cone squirrel-cage model | ||
| Working class | A3 | ||
| Electric current | 380V 50Hz three-phase | ||
| Wheel diameter | Φ270 | Φ370 | |
| Width of track | 51~70mm | ||
FEATURES AT A GLANCE
1. We have the most competitive price in the industry.
2. Design rules for cranes GB/T3811-2008.Safety rules for lifting appliances GB6067.1-2010.
3. Eleven safety systems will ensure your safety.
4. It is widely used in plants, warehouse, and material stocks to lift goods.
5. Customized services such as lifting capacity and lifting height will meet your needs to the greatest extent.
6. Perfect pre-sale and after-sale service to solve your worries.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
