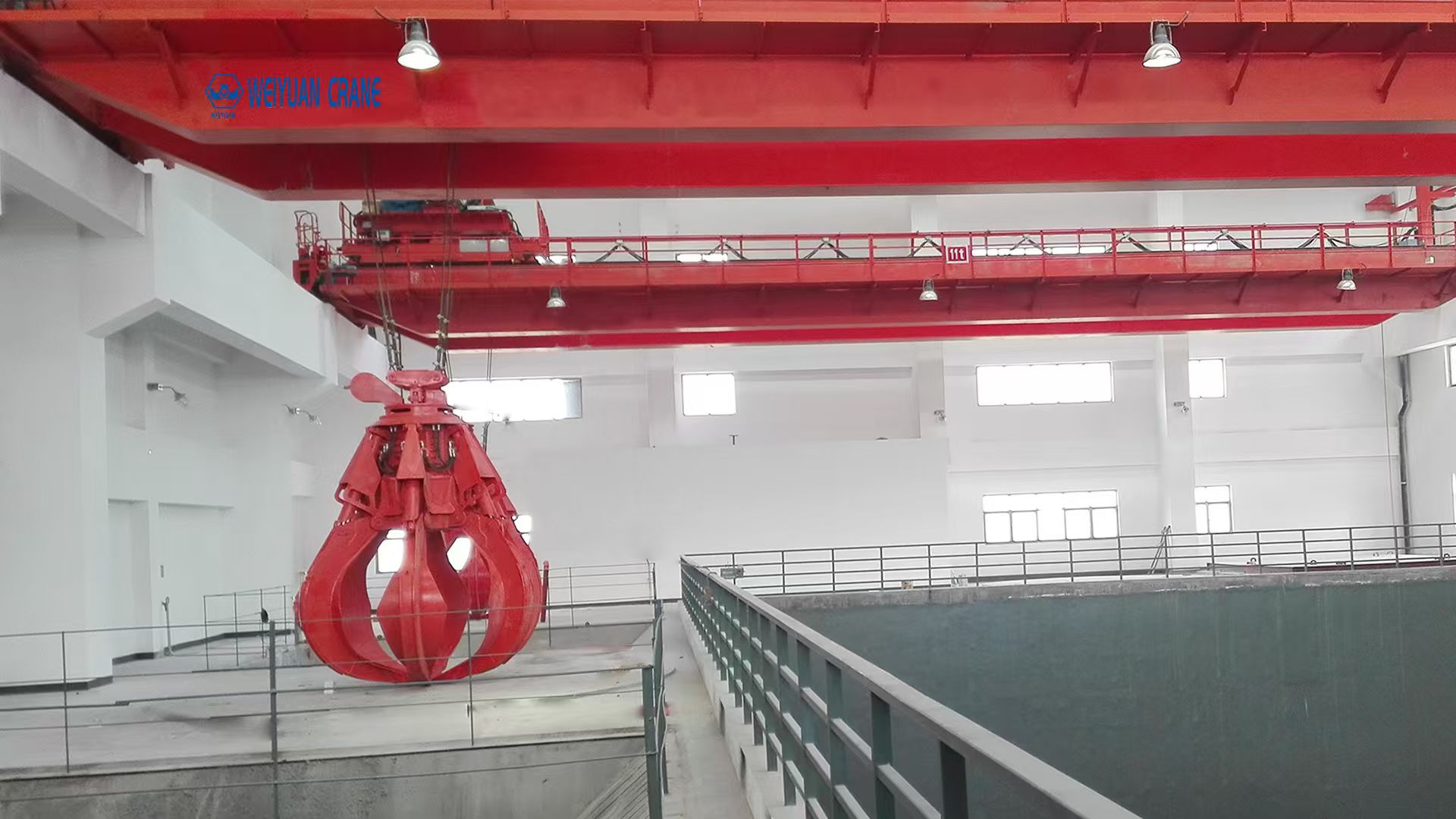

QZ grab bucket bridge crane
Product advantages
The design and manufacturing of QZ type grab bridge crane comply with international and general standards such as GB, FEM, IEC, etc.
Its structure includes a single-layer frame, a double-layer frame, single drum and double drum groups;
The comprehensive weighing accuracy is ≤± 1%;
It has three control modes: manual control, semi-automatic control, and fully automatic control. The three control modes can be freely switched and have manual priority function in any automatic mode.
Application scenarios
- Each crane is equipped with an independent PLC for individual control of the crane.
- Control all actions of the grab crane, such as material transfer, loading, and mixing, in the control room.
- The electrical control adopts a system of “PLC+touch screen+variable frequency speed regulation device” to achieve comprehensive monitoring, control and high-precision speed regulation functions of the whole machine.
- All mechanisms of the crane are equipped with digital frequency conversion speed control devices, and the whole machine is controlled by PLC, which can achieve manual/semi-automatic/fully automatic operation.
- It has real-time dynamic measurement of materials, crane fault diagnosis and alarm, and remote fault diagnosis functions.
Product specifications and dimensions
| Items | QZ Type Double Girder Grapple Bridge Crane | |||||
| Lifting Capacity | t | 5 | 10 | 16 | 20 | |
| Span | m | Max to 31.5 | ||||
| Working class | A6 | |||||
| Speed | Hoist | m/min | 40.1 | 40.7 | 41.8 | 48.6 |
| Trolley | 44.6 | 45.6 | 41.8 | 48.6 | ||
| Crane | 93.7 | 86.4 | 76 | 89 | ||
| Motor | Hoist closing | Kw | YZR225M-8/22*2 | YZR280S-10/37*2 | YZR315M-10/75*2 | YZR355M-10/90*2 |
FEATURES AT A GLANCE
Main Features of QZ model overhead crane:
1. Simple structure in linear type, easy for Installation and maintenance;
2. Running in a high automatization and intellectualization, no pollution;
3. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
4. EOT Grapple Crane Control method is cabin control or remote control;
5. High pressure double crank to control the die opening and closing. Depending on lifting cargo, EOT grapple crane can be
equipped with grab，bucket，grapple;
6.EOT Grapple Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane
work safe.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
