General purpose overhead crane
Remote Control Side Hanging Single Girder Steel Wire Rope Hoist Trolley Overhead Crane
Product Overview

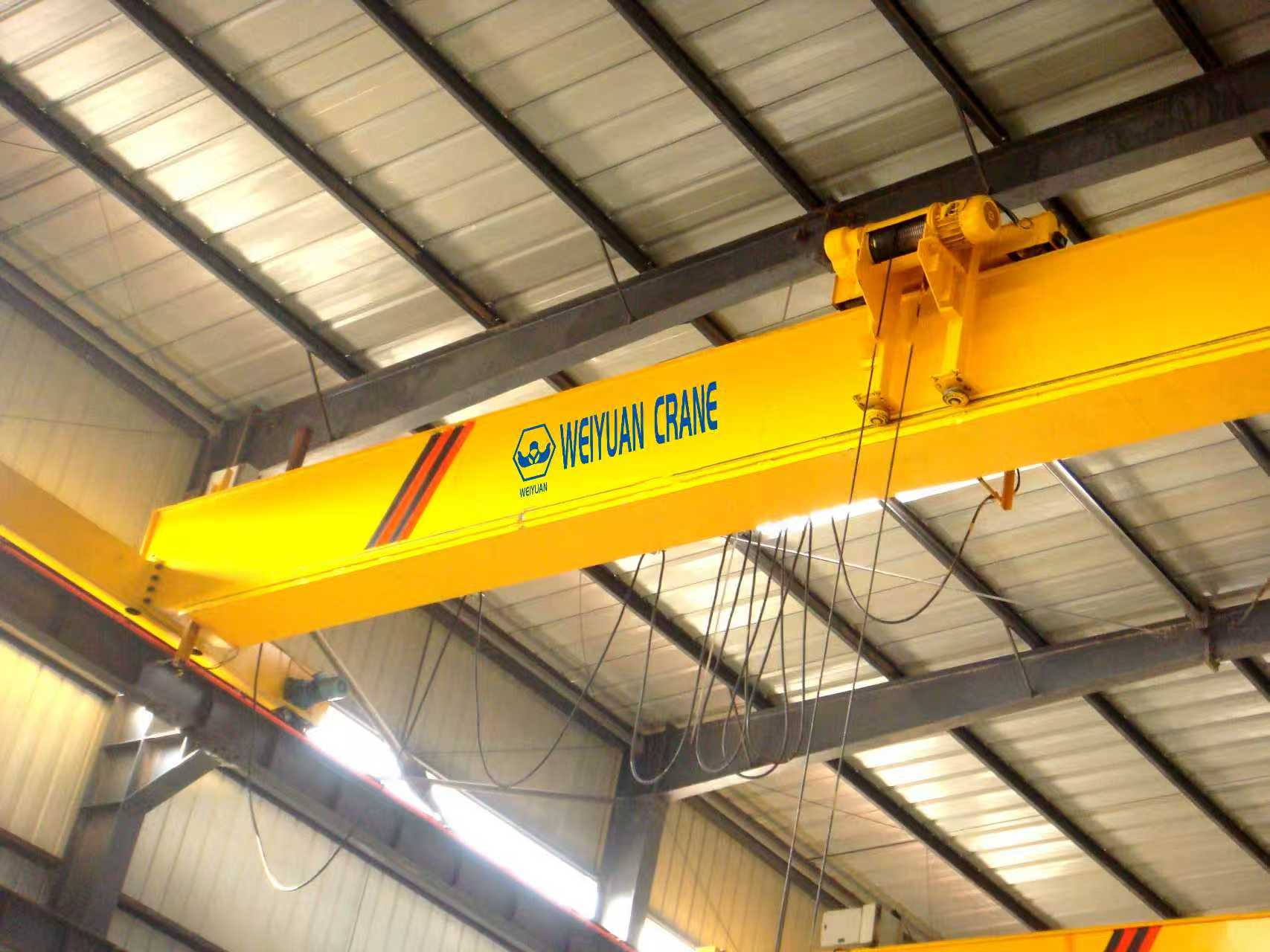

The Weiyuan LDP Model Single Girder Crane is a specialized lifting solution engineered for workshops and facilities with low headroom. Its innovative design features a partial-hanging electric wire rope hoist that runs on the side of the main girder, rather than underneath it. This configuration significantly increases the effective lifting height, allowing you to maximize your vertical space without compromising on power or performance. Composed of a robust box-shaped girder, end beams, and a high-performance hoist, this crane is both strong and lightweight. It provides safe, reliable, and smooth operation, making it the perfect choice for environments where every inch of height matters.
Product Advantages
Maximized Lifting Height
The key advantage of the LDP model is its side-hanging hoist design. By positioning the hoist on the side of the main girder, the crane achieves a much higher lifting altitude compared to traditional overhead cranes. This makes it the ideal solution for workshops with low ceilings or limited vertical clearance.
Lightweight and Strong Structure
Featuring a reasonably structured, box-shaped main girder welded by machine hand, the crane offers a high bearing capacity with a low dead weight. This light structure simplifies installation and reduces the overall load on your building’s support structure.
Safe and Reliable Operation
Safety is a core design principle. The crane is equipped with horizontal wheels on the top and bottom to ensure smooth travel and prevent rail gnawing. It can be outfitted with soft-start motors and inverter control for steady, jolt-free starting and stopping, protecting both your load and your equipment.
Flexible and High-Quality Configuration
The crane offers versatile control methods, including ground pendant, wireless remote, and cabin control. Key components, such as wheels, gears, and couplings, are processed by a CNC machine center for top quality control, and main electrical parts from Schneider ensure reliability.
Customizable to Your Application
Every workspace is unique. This crane can be fully customized, with options for span, lifting height, capacity, and control methods. We can tailor the design to meet your specific non-standard requirements, ensuring a perfect fit for your operations.
Application Scenarios
Low-Headroom Workshops
Specifically designed for facilities where vertical space is restricted. Its ability to maximize lifting height makes it invaluable in workshops, garages, and manufacturing plants with low ceilings.
Manufacturing and Assembly
Ideal for production lines and assembly bays where components need to be lifted high and positioned accurately. The smooth, stable operation is perfect for handling sensitive parts and heavy machinery.
Warehouses with Limited Space
Provides an efficient lifting solution in warehouses where maximizing storage height is crucial. It can operate above aisles and workstations without taking up valuable floor space.
Maintenance and Repair Facilities
An excellent choice for service bays and maintenance shops, allowing technicians to lift heavy equipment and parts higher and more easily than with conventional cranes in a height-restricted environment.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1T, 2T, 3T, 5T, 10T, 16T, 20T |
| Span | 7.5m – 31.5m (Customizable) |
| Lifting Height | 6m, 9m, 12m, 18m, 24m, 30m |
| Work Duty | A3 – A5 |
| Lifting Mechanism | Partial Side-Hanging Electric Wire Rope Hoist |
| Control Method | Ground Control + Wireless Remote Control |
| Lifting/Traveling Speed | Single Speed, Dual Speed, or Inverter Control |
| Power Supply | 3-Phase 220V-440V, 50/60Hz or Customized |
| Main Electrical Parts | Schneider Brand |
| Working Temperature | -10°C to +45°C |
Features at a Glance
✓ Low Headroom Design: Maximizes lifting height in space-constrained facilities.
✓ Strong Box-Type Girder: Provides high strength with a lightweight structure.
✓ Side-Hanging Hoist: Uniquely configured to increase effective lift.
✓ Smooth and Safe Operation: Options for soft-start motors and inverter control.
✓ High-Quality Components: CNC-processed mechanical parts and Schneider electrics.
✓ Fully Customizable: Tailor the span, capacity, and height to your exact needs.
✓ Versatile Control: Available with pendant, remote, and cabin control options.
FAQ
Q: What is the main advantage of this “Side Hanging” crane?
A: The primary advantage is its ability to maximize lifting height. By placing the hoist on the side of the girder instead of underneath it, the LDP crane can lift loads significantly higher than a standard LDA model crane within the same facility, making it perfect for workshops with low ceilings.
Q: Can this crane be installed if I have special requirements?
A: Yes. This crane is designed for customization. We can create a non-standard design based on your specific needs for span, lifting height, and capacity to ensure it fits your workspace perfectly.
Q: What control methods are available?
A: We offer three main operating modes to suit your needs: a wired pendant controller for ground operation, a wireless remote control for increased flexibility and safety, and a dedicated operator’s cabin (available in open or closed configurations).
Q: Can the crane’s travel speed be adjusted?
A: Yes. While single-speed motors are standard, we can equip the crane’s traveling motor with a soft-start motor or a Variable Frequency Drive (VFD) for adjustable-speed control. This allows the crane to start steadily and run more smoothly.
Q: How do you ensure the crane’s quality?
A: We have a perfect quality-control system. We have passed CE, GOST, SGS, and ISO certifications. All cranes are built with top-quality components, rigorously tested, and can be provided with a machinery test report and video inspection before shipment. We also offer installation guidance and training from our senior engineers.
