General purpose overhead crane
Specially Customized Workshop Warehouse Modular Bridge Crane
Product Overview

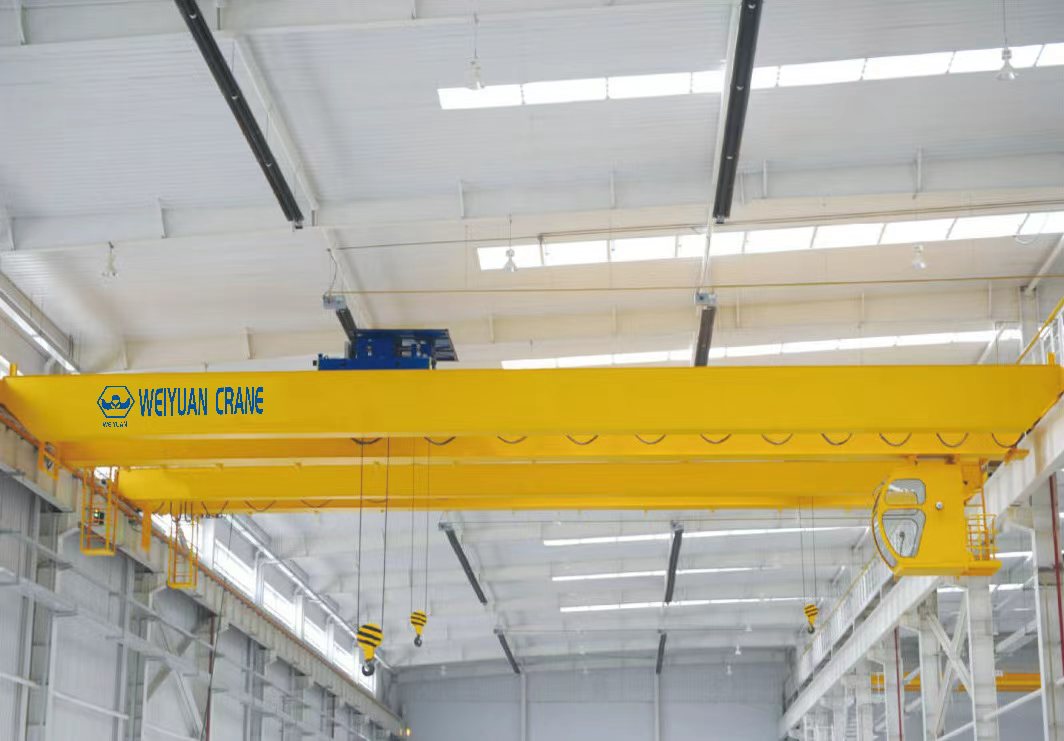

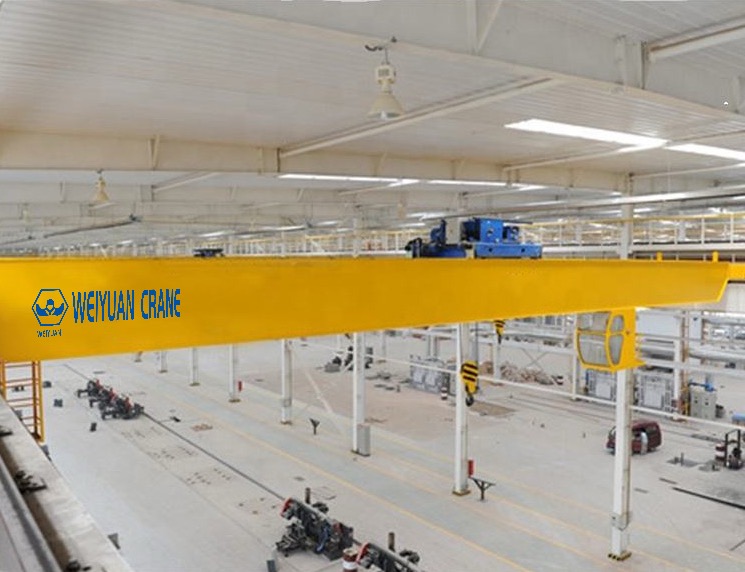

The 2024 Specially Customized Modular Bridge Crane is a versatile and robust material handling solution engineered by Weiyuan for modern workshop and warehouse environments. This crane is available in single or double girder configurations, offering exceptional flexibility to meet specific operational demands. Designed with modularity and customization at its core, it supports lifting capacities from 5 to 50 tons. The system utilizes an advanced electric hoist for its lifting mechanism and offers multiple control methods, including remote and cabin control, to ensure safe and efficient operation. With a durable design, a comprehensive range of spans and lifting heights, and adherence to high work duty standards (A3-A5), this bridge crane is an ideal choice for enhancing productivity and reliability in various industrial settings.
Product Advantages
Modular and Customizable Design
Engineered for flexibility, this crane can be specially customized as a single or double girder system, with spans from 7.5m to 31.5m and lifting heights from 6m to 50m to perfectly fit your facility’s requirements.
Versatile Lifting Capacities
With a rated lifting capacity ranging from 1 to 50 tons, the crane is suitable for a wide array of tasks, from light-duty workshop jobs to heavy-duty material handling in large warehouses.
Advanced Control Systems
Offers a choice between remote control for enhanced operator mobility and safety, or cabin control for complex operations requiring a dedicated viewpoint, ensuring precise and efficient handling.
High-Performance Hoisting
Equipped with a reliable electric hoist as the primary lifting mechanism, providing smooth and steady lifting and lowering operations for improved safety and productivity.
Durable and Reliable Construction
Built to withstand demanding industrial environments with a working duty classification of A3-A5 and an operational temperature range of 33 to 46 degrees Celsius, ensuring long-term performance.
Efficient Power and Drive
Powered by a standard three-phase AC system (220-690V, 50Hz) and featuring robust core components like bearings, gearboxes, and motors for consistent, energy-efficient operation.
Application Scenarios
Workshop and Manufacturing
Ideal for assembly lines, fabrication shops, and general manufacturing facilities where reliable and precise lifting of components, materials, and finished goods is essential for maintaining workflow.
Warehouse and Logistics
Perfect for warehouses and distribution centers needing to efficiently load, unload, and stack heavy materials, maximizing storage space and streamlining logistical operations.
Maintenance and Repair Facilities
Provides the necessary lifting power for heavy equipment maintenance, vehicle repair shops, and industrial service centers, facilitating the safe handling of large parts and machinery.
Storage Yards and Open-Air Operations
The durable construction and adaptable design make it suitable for outdoor storage yards and construction sites where robust lifting capabilities are required to handle materials in various weather conditions.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1t to 50t load range |
| Span Coverage | 7.5m to 31.5m |
| Lifting Height | 6m to 50m vertical range |
| Work Level Classification | A3-A5 duty cycle rating |
| Hoisting Mechanism | Electric Hoist |
| Control Method | Remote Control or Cabin Control |
| Power Supply | Three-phase AC 220-690V 50Hz |
| Configuration Options | Single Girder or Double Girder |
Features at a Glance
✓ Customizable Capacity: 5, 10, 15, 20 up to 50-ton lifting capacity for various applications
✓ Flexible Configurations: Available in both single and double girder models
✓ Wide Span Range: Spans from 7.5m to 31.5m to cover large work areas
✓ Multiple Control Options: Remote control and cabin control for operational flexibility
✓ High Work Duty: A3-A5 classification for reliable, continuous use
✓ OEM Accepted: Full customization available to meet unique requirements
✓ Comprehensive Warranty: 12-month warranty with online technical support and free parts replacement
FAQ
Q: What is the difference between a single girder and a double girder crane?
A: A single girder crane is generally more lightweight and cost-effective, ideal for lifting capacities up to 20 tons and shorter spans. A double girder crane offers greater stability and lifting height, making it suitable for heavier loads (up to 50 tons and beyond) and longer spans.
Q: How do I choose between remote control and cabin control?
A: Remote control offers better visibility and mobility for the operator, increasing safety when handling loads around obstacles. Cabin control is preferred for high-speed, heavy-duty cycles in a fixed location, as it provides a protected environment and a consistent vantage point.
Q: Can the crane’s specifications be customized?
A: Yes, this is a “Specially Customized” model. Weiyuan can tailor the lifting capacity, span, lifting height, control method, and other features to match your specific application and facility layout. OEM services are accepted.
Q: What is the lead time for a customized crane?
A: For orders of 1-3 units, the estimated lead time is approximately 30 days. For larger quantities, the delivery schedule will be determined based on the production plan and should be confirmed with our sales team.
Q: What kind of after-sales support is provided?
A: We provide a 1-year warranty that includes free replacement of parts and complimentary online technical support to assist with any operational or maintenance questions.
