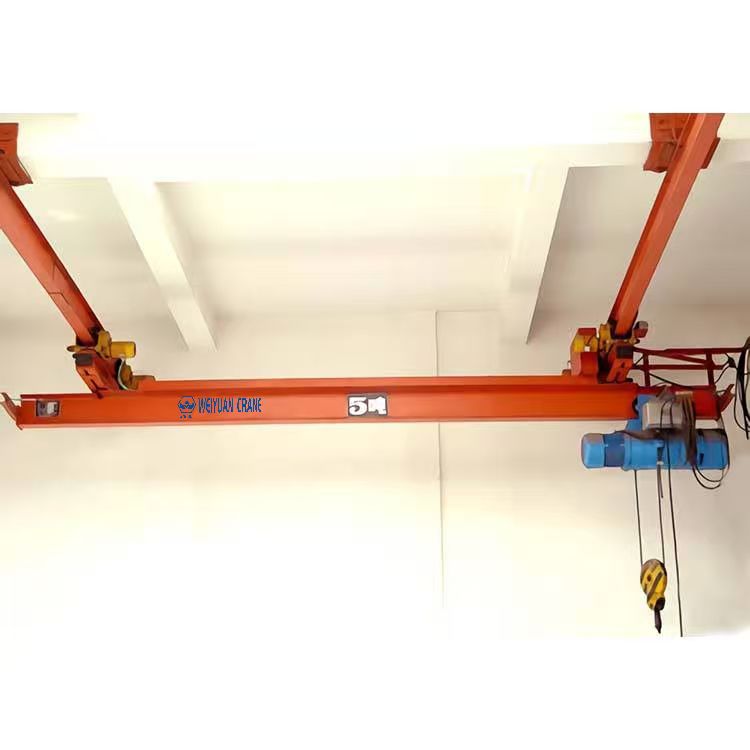

Suspension Electric Hoist Single Girder Bridge Crane
Product Overview
The Weiyuan Suspension Electric Hoist Single Girder Bridge Crane is a high-performance, lightweight lifting solution designed for modern industrial environments. This crane operates by running on the lower flange of an I-beam track suspended from the workshop roof or a supporting structure, eliminating the need for floor columns. This design maximizes workspace and is perfect for facilities where ground space is limited. Ideal for material handling, assembly lines, and maintenance tasks, our suspension crane provides reliable, efficient, and safe lifting operations, enhancing productivity across various applications.
Product Advantages
Space-Saving and Efficient Design
By mounting directly to the existing ceiling structure, this crane frees up valuable floor space. Its compact structure and low headroom design make it an optimal choice for workshops with height restrictions, allowing for greater lifting height within a limited space.
Robust and Lightweight Construction
Engineered with high-strength steel, the single girder design offers an excellent strength-to-weight ratio. This reduces the load on the building structure while ensuring durability and a long service life, providing a cost-effective and reliable lifting system.
Smooth and Stable Operation
Equipped with advanced frequency conversion control, the crane ensures smooth starting, running, and braking. This minimizes load swing and provides precise positioning, enhancing operational safety and protecting valuable materials and equipment from damage.
Superior Safety Features
Safety is our priority. The crane is fitted with multiple safety mechanisms, including overload protection, emergency stop systems, limit switches for hoisting and traveling, and a high-quality braking system to ensure secure and dependable performance under all conditions.
Customizable for Your Needs
Weiyuan offers fully customizable solutions to meet your specific operational requirements. We can tailor the lifting capacity, span, lifting height, and control methods (pendant or remote control) to perfectly integrate with your workflow and facility layout.
Application Scenarios
Manufacturing and Assembly Lines
Ideal for moving components along a production line, this crane facilitates efficient assembly processes and material transport between workstations, boosting overall production speed and workflow.
Warehousing and Logistics
Perfect for loading and unloading goods in warehouses where floor space is at a premium. The suspension design allows for unobstructed movement of forklifts and personnel below.
Maintenance and Repair Workshops
Provides a safe and effective way to lift and position heavy machinery, engines, and parts for maintenance and repair tasks, improving safety and reducing manual labor in garages and service centers.
Material Processing Plants
Well-suited for handling raw materials and finished products in processing facilities. Its precise control and stable operation make it excellent for applications requiring careful positioning.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1-20t (customizable) |
| Span Coverage | 3-22.5m (customizable) |
| Lifting Height | 6-30m (customizable) |
| Work Level | A3-A5 |
| Hoisting Speed | 2-8 m/min or variable frequency |
| Traveling Speed | 20/30 m/min or variable frequency |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V, 50Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider/Siemens |
| Motor Brand | ABB/SIEMENS/Domestic Brands |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ Optimized Workspace: Suspension design clears floor space for other operations.
✓ Customizable Capacity: Lifting capacity from 1 to 20 tons to suit your application.
✓ Flexible Dimensions: Span and lifting height are fully customizable.
✓ Durable Construction: Built with high-strength steel for longevity and reliability.
✓ Smooth Performance: Frequency conversion control for precise and stable movement.
✓ Comprehensive Safety: Includes overload protection, limit switches, and emergency stop.
✓ Versatile Control: Options for both pendant and wireless remote control for operational flexibility.
FAQ
Q: What is the main advantage of a suspension bridge crane over a standard overhead crane?
A: The primary advantage is that it doesn’t require floor-mounted columns. It hangs from the roof structure, which maximizes floor space and is ideal for buildings that cannot support a runway structure for a top-running crane.
Q: Can this crane be installed in an existing building?
A: Yes, it is designed for installation in existing facilities. However, a structural assessment of your building’s roof support structure is necessary to ensure it can safely bear the load of the crane and its rated capacity. We can assist with these requirements.
Q: What are the power supply requirements for the suspension crane?
A: The standard power supply is 380V, 50Hz, 3-Phase. We can also customize the power supply to match your country’s specifications or your facility’s electrical system.
Q: Are explosion-proof options available for this crane?
A: Yes, Weiyuan can design and manufacture explosion-proof suspension cranes suitable for use in hazardous environments, such as chemical plants or gas facilities. Please specify your environmental requirements when you inquire.
Q: How do you ensure the quality of your cranes?
A: With nearly 40 years of manufacturing experience, Weiyuan operates under a strict ISO-compliant quality control system. Our professional QC team inspects every stage of production, and all equipment undergoes rigorous testing before shipment. We provide a full test report with every order to guarantee quality and performance.
