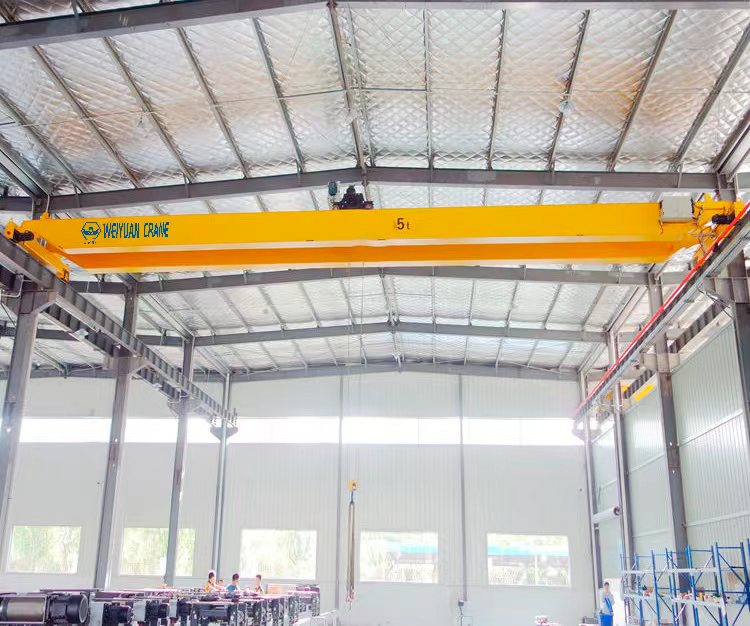

Weiyuan 5 Ton Overhead Crane with Mobile Rail Trolley
Product Overview
The Weiyuan 5 Ton Overhead Crane with Mobile Rail Trolley is a compact, efficient lifting system designed for workshops, warehouses, and light-to-medium manufacturing. The single-trolley overhead configuration offers smooth, precise handling for daily operations, while the flexible control options and customizable spans/heights make it easy to adapt to existing bays. It’s an ideal upgrade for facilities seeking reliable 5-ton lifting with minimal footprint and straightforward maintenance.
Product Advantages
- Compact, Space-Efficient Design
Optimized structure and trolley layout deliver strong performance with low headroom and minimal bay modifications. - Smooth, Reliable Operation
Matched hoist, motors, wheels, and reducers provide steady acceleration and controlled stops; optional VFD improves fine positioning. - Easy Installation and Service
Modular beams and bolted interfaces simplify transport, erection, and ongoing maintenance. - Safety Built-In
Overload limiter, end-travel limits, emergency stop, and electrical protections enhance operator safety and equipment reliability. - Flexible Configuration
Custom span, lifting height, speeds, power supply, and control mode (pendant/remote) to fit your site and workflow.
Application Scenarios
- Workshops and fabrication cells: Part transfer, station-to-station moves
- Warehouses and logistics: Loading/unloading, staging, put-away
- Maintenance bays: Engines, gearboxes, and component handling
- Light manufacturing: Repetitive material handling with 5t capacity
- General industry: Cost-effective, everyday lifting needs
Product Specifications
| Parameter | Details |
|---|---|
| Rated Capacity | 5 ton |
| Configuration | Overhead crane with mobile rail trolley |
| Span | Typical 7.5–22.5 m (customizable to bay) |
| Lifting Height | Commonly up to 10–16 m (per configuration) |
| Work Duty | A3–A4（light to medium） |
| Lifting Mechanism | Electric wire rope hoist (single/dual speed optional) |
| Main Hoisting Speed | Model-dependent; single/dual-speed or VFD |
| Trolley Travel Speed | Configurable; VFD optional |
| Bridge Travel Speed | Configurable; typical light–medium ranges |
| Power Supply | 3-phase AC per local standard（e.g., 380V/50Hz） |
| Control Methods | Pendant / Wireless Remote |
| Main Electrical Parts | Industrial-grade components（e.g., Schneider class） |
| Documentation | Wiring diagrams, test reports, outgoing inspection video |
Features at a Glance
- Compact overhead layout with efficient headroom utilization
- Smooth trolley/bridge travel for accurate positioning
- Integrated safety: overload, travel limits, emergency stop
- Modular design for faster installation and simplified maintenance
- Optional VFD on bridge/trolley/hoist for fine control and reduced sway
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
