General purpose overhead crane
Weiyuan Construction Equipment Bridge Crane
Product Overview
The Weiyuan Construction Equipment Bridge Crane is a heavy-duty, high-performance crane engineered specifically for the rigorous demands of construction, heavy manufacturing, and large-scale industrial projects. Designed for superior strength, stability, and operational efficiency, this industrial lifting solution features a robust double-girder structure capable of handling immense loads over wide spans. As a critical piece of construction equipment, this bridge crane is equipped with a high-capacity hoist trolley or open winch, ensuring the safe, precise, and reliable movement of heavy materials, prefabricated sections, and machinery. It is the definitive choice for steel fabrication yards, precast concrete plants, and large-scale assembly facilities where power and durability are paramount.
Product Advantages
Superior Strength for Construction Demands

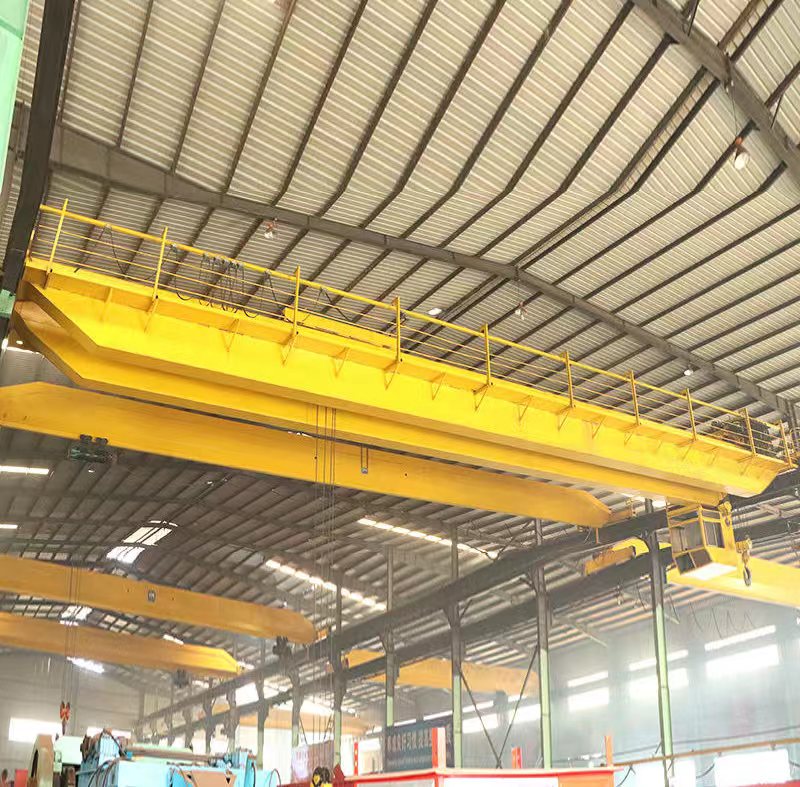

The double-girder box frame design provides exceptional torsional rigidity and structural integrity, a critical feature for a high-performance crane. This robust construction minimizes deflection and ensures maximum stability when lifting heavy and irregularly shaped construction materials, making it a safer and more reliable choice for demanding job sites.
Optimized Lifting Height and Clearance
Our construction equipment bridge crane features a hoist trolley that travels on top of the two girders. This design maximizes the hook’s lifting height, which is essential for handling tall components, stacking materials high, and operating in facilities that require significant vertical clearance.
High-Performance and Precision Handling
Powered by a heavy-duty electric hoist or open winch and equipped with advanced motor systems, this industrial lifting solution delivers powerful yet smooth operation. Optional Variable Frequency Drives (VFDs) provide stepless, precise control over all movements, reducing load sway and allowing for the accurate placement of critical construction components.
Engineered for Durability and Longevity
Built from high-grade Q345B steel and featuring world-class components, the Weiyuan crane is designed for heavy-duty service (A5-A7). Its robust construction guarantees a long service life with minimal maintenance, even in the harsh and dusty environments typical of construction and heavy manufacturing.
Comprehensive Safety Systems
Safety is fundamental to all Weiyuan industrial lifting solutions. This construction equipment bridge crane is equipped with a full suite of advanced safety features, including overload protection limiters, dual travel limit switches, emergency stop systems, and high-performance brakes to ensure fail-safe operation and protect your valuable assets and personnel.
Application Scenarios
Prefabrication and Modular Construction
This high-performance crane is essential for prefabrication yards, where it is used to lift and assemble large building modules, wall panels, and structural steel sections with precision and efficiency before they are transported to the construction site.
Steel Fabrication and Storage Yards
Perfectly suited for handling long steel beams, heavy plates, and fabricated structural components. The Weiyuan construction equipment bridge crane can manage massive loads, streamlining the production and storage process in steel service centers and fabrication shops.
Precast Concrete Plants
Ideal for lifting and moving heavy precast concrete elements such as beams, columns, and slabs. The crane’s strength and precision are crucial for safely stripping forms, stacking finished products, and loading them onto trucks for delivery.
Heavy Equipment Manufacturing
Provides the core lifting power needed to assemble large construction equipment, industrial machinery, and turbines. Its high capacity and precise control are vital for moving heavy chassis, engines, and other major components along the production line.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 10 Ton – 500 Ton (Customizable) |
| Crane Span | 10.5m – 35.5m (Customizable) |
| Lifting Height | Up to 50m (Customizable) |
| Crane Type | Double Girder Construction Equipment Bridge Crane |
| Work Level | A5, A6, A7 (Heavy to Severe Duty) |
| Hoisting Mechanism | Heavy-Duty Electric Wire Rope Hoist Trolley / Open Winch Trolley |
| Crane Travel Speed | 20-45 m/min (VFD control available) |
| Control Method | Cabin Control / Wireless Remote Control / Pendant Control |
| Power Supply | 380V/415V/440V/480V, 50/60Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider, Siemens, ABB or equivalent reputable brands |
| Material | High-Strength Q345B Steel |
| Operating Environment | -25°C to +40°C, suitable for outdoor and indoor construction environments |
Features at a Glance
✓ Heavy-Duty Capacity: Designed for loads from 10 tons up to 500 tons.
✓ Superior Stability: Double girder design ensures maximum rigidity for safe lifting.
✓ Optimized Workspace: Maximizes lifting height for handling large construction elements.
✓ Fully Customizable: Span and height are engineered to fit your specific project needs.
✓ Advanced Hoisting Options: Choose from a high-performance hoist or powerful open winch.
✓ High-Duty Performance: Rated for heavy-duty (A5) to severe-duty (A7) service cycles.
✓ Multiple Control Options: Cabin, wireless remote, and pendant controls available for safe operation.
FAQ
Q: Why is a double girder crane recommended for construction equipment applications?
A: A double girder construction equipment bridge crane is recommended for its superior strength, stability, and higher load capacities. These features are critical for safely lifting the heavy, often unbalanced, loads common in construction and heavy fabrication, making it a more reliable industrial lifting solution.
Q: Can this high-performance crane be used outdoors?
A: Yes. Weiyuan designs its construction equipment bridge cranes for both indoor and outdoor service. Outdoor models are equipped with protective features such as rain covers for the hoist and motors, durable paint systems, and wind-speed monitoring devices to ensure safe and reliable operation in all weather conditions.
Q: What is the benefit of cabin control for a crane of this type?

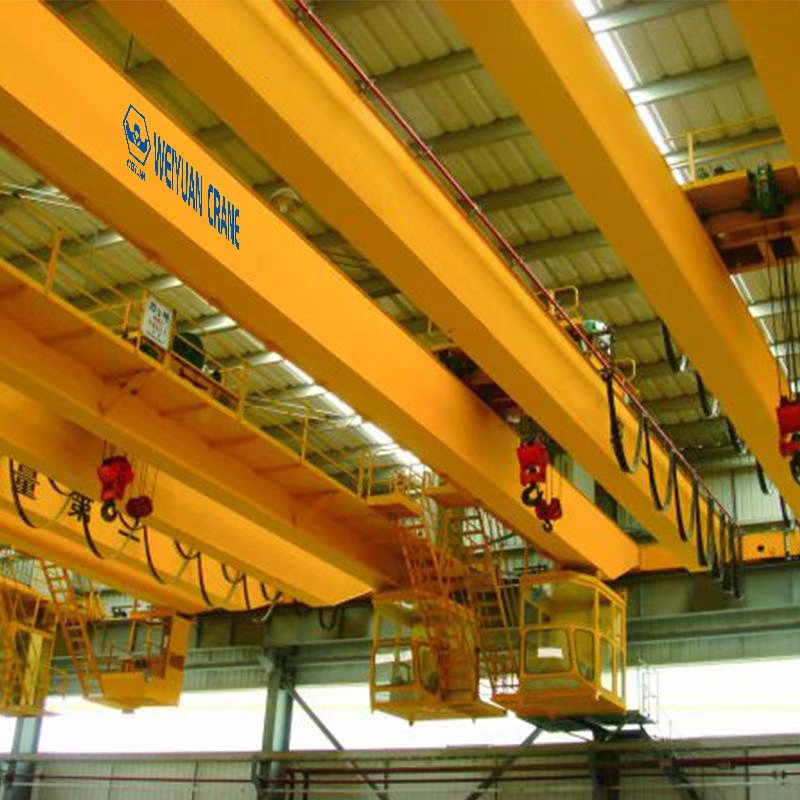

A: Cabin control is highly recommended for cranes with long spans, high travel speeds, and those operating in outdoor or harsh environments. It provides the operator with a safe, protected vantage point, offering the best visibility and control over the lifting operations, which is critical for site safety.
Q: What structural preparations are needed to install a Weiyuan bridge crane?
A: A construction equipment bridge crane requires a robust runway system supported by either the building’s columns or an independent steel structure. A certified structural engineer must verify that the foundation and support structure can safely handle the crane’s wheel loads. Weiyuan provides all necessary technical data for this crucial evaluation.
Q: How does Weiyuan ensure the quality of its industrial lifting solutions?
A: As a leading manufacturer, Weiyuan adheres to strict ISO-certified quality management systems. Each construction equipment bridge crane is engineered by experts, fabricated from certified high-strength steel, and fitted with components from world-class suppliers. Before shipment, every crane undergoes rigorous inspections and full-load testing to guarantee it meets international safety and performance standards.
