Weiyuan Electromagnetic Overhead Crane | CE/ISO Certified, Efficient, Safe Steel Handling
Product Overview

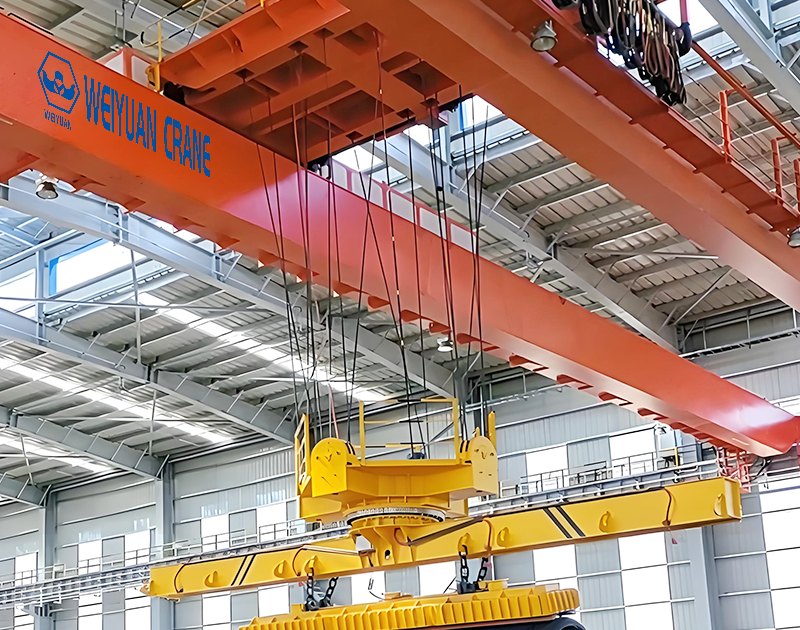

The Weiyuan QC Type Electromagnetic Overhead Crane is a specialized, CE and ISO-certified lifting solution designed for the efficient and safe handling of ferrous metal materials. This crane is built on a robust double or single girder frame and features a powerful, detachable electromagnet as its primary lifting device. It is engineered to lift and transport steel plates, billets, bars, scrap, and other magnetic materials without the need for slings or hooks, significantly improving handling speed and safety. Trust Weiyuan to deliver a certified, high-performance magnetic crane that streamlines your metal handling workflow.
Product Advantages
- Efficient and Fast Handling: The electromagnet allows for the instant pickup and release of materials, drastically reducing cycle times compared to manual rigging with hooks or slings.
- Enhanced Safety: Eliminates the need for personnel to work in close proximity to the load during attachment and detachment, reducing the risk of accidents in busy industrial environments.
- Damage-Free Lifting: The magnetic force is distributed over a large surface area, allowing for the gentle handling of steel plates and other finished products without causing scratches, dents, or deformation.
- CE and ISO Certified Quality: As a Weiyuan product, this crane is manufactured to meet stringent international quality and safety standards, ensuring reliability, durability, and compliance.
- Backup Power for Safety: The crane is equipped with a backup battery system for the electromagnet, which ensures the magnet remains powered for a short period in case of a sudden power failure, preventing the load from dropping.
Application Scenarios
- Steel Mills: Ideal for transporting steel billets, slabs, plates, and coils throughout the production facility, from the casting area to the rolling mill and storage yards.
- Shipyards: Efficiently moves large steel plates and fabricated sections for hull construction and assembly.
- Steel Service Centers and Warehouses: Perfect for loading and unloading trucks, and for stacking and organizing steel plates, pipes, and structural beams.
- Heavy Machinery Manufacturing: Used to lift and position heavy steel components, machine beds, and counterweights during the assembly process.
- Scrap Yards: While grab cranes are common, magnetic cranes are also used for sorting and handling ferrous scrap, especially for loading shredders or balers.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Weiyuan |
| Rated Capacity | 5t to 50t (Does not include magnet weight) |
| Span | 10.5 m to 35 m (Customized for your facility) |
| Max. Lifting Height | Up to 40 m (Customized as per demand) |
| Work Duty | A5–A7 (Medium to Heavy Duty) |
| Magnet Type | Circular or Rectangular Electromagnet (Customized) |
| Magnet Power Backup | Standard (Provides >10 minutes of hold time) |
| Lifting Speed | Customized with optional VFD control |
| Trolley Traveling Speed | Customized with optional VFD control |
| Crane Traveling Speed | Customized with optional VFD control |
| Control Methods | Cabin Control (Standard), Wireless Remote Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Certifications | CE, ISO |
| Safety Devices | Overload limiter, backup battery for magnet, emergency stop, travel limiters |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 / IP55 |
| Steel Grade | Q235B / Q355B High-Strength Carbon Steel |
| Warranty | 1 Year |
| Lead Time | 30–60 days (Negotiable) |
Features at a Glance
- CE and ISO certified Weiyuan electromagnetic crane for safe steel handling.
- Powerful electromagnet for fast, efficient, and damage-free lifting.
- Standard backup battery system prevents load drops during power outages.
- Robust double-girder design for heavy-duty applications.
- Fully customizable to suit specific materials and facility layouts.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
