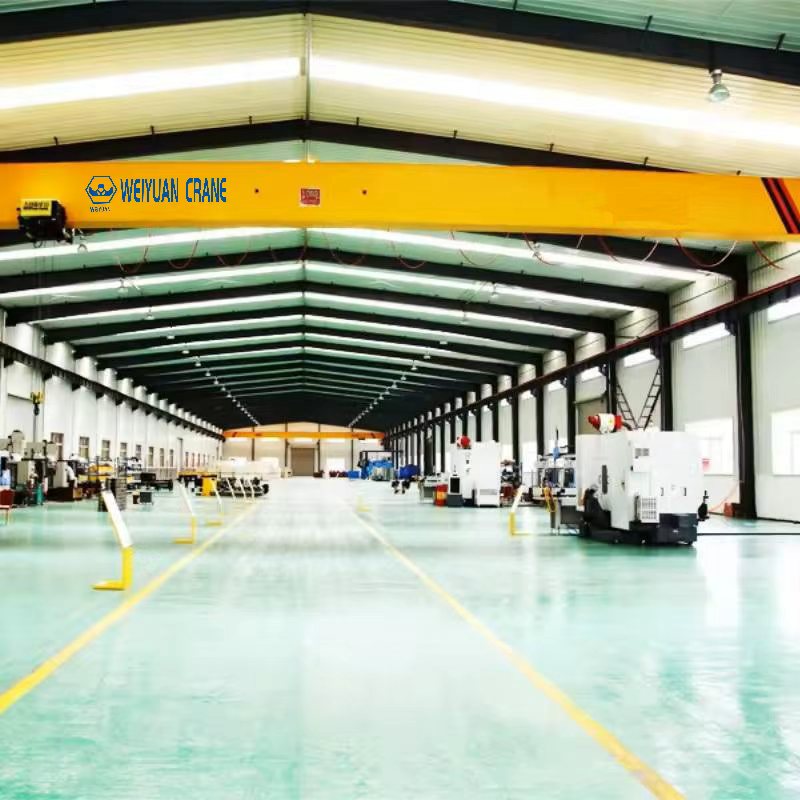

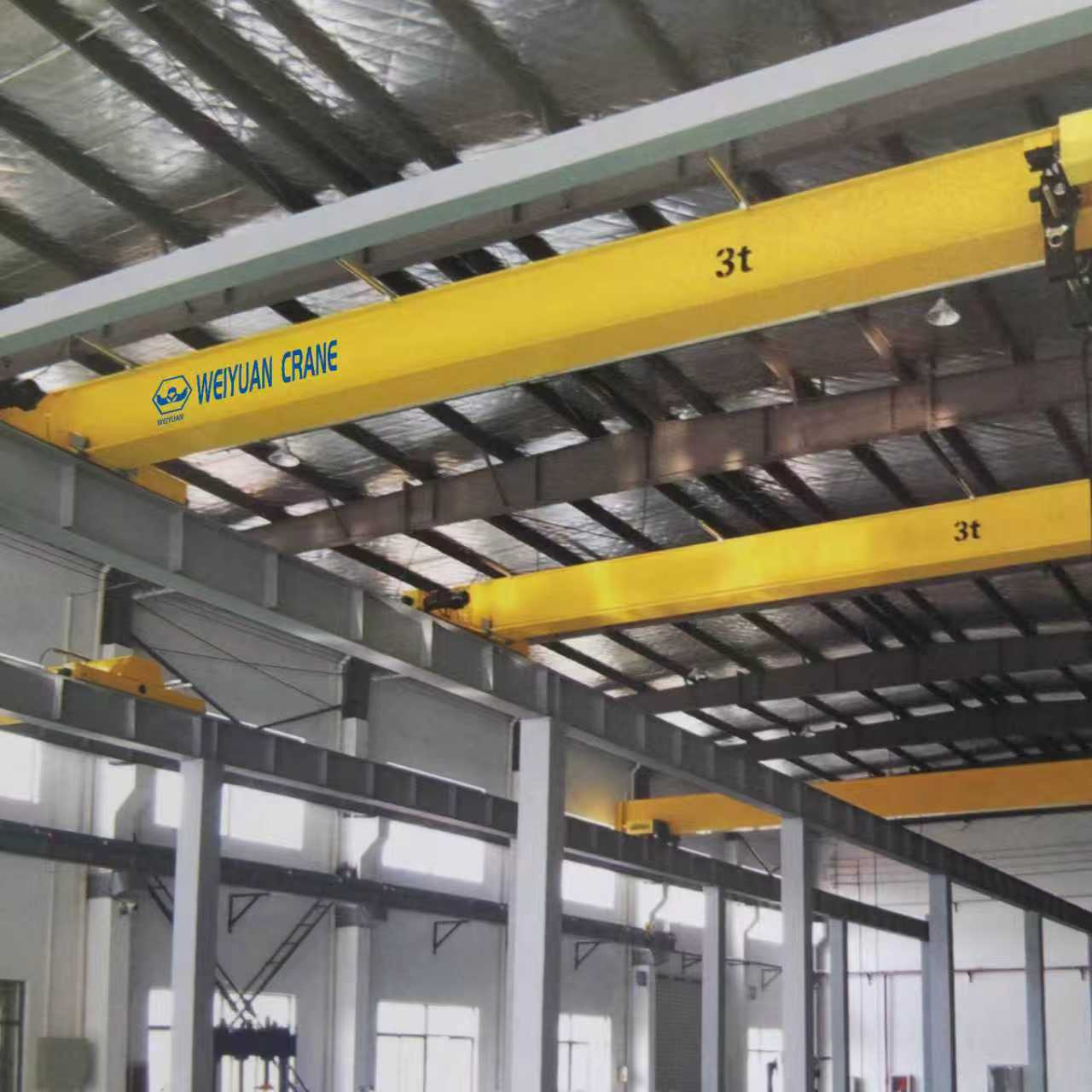

Weiyuan HD Model Electric Single Girder Crane
Product Overview
The Weiyuan HD Model Electric Single Girder Crane is a high-performance crane that embodies the next generation of industrial lifting solutions. Based on advanced European design standards, this crane offers superior efficiency, a compact structure, and intelligent operation. Engineered for modern workshops, high-tech manufacturing, and facilities demanding precision and reliability, the HD model is significantly lighter and more energy-efficient than traditional cranes. It features a low-headroom European-style hoist and standard Variable Frequency Drives (VFDs) for all movements, making it the premium choice for businesses seeking a safe, smart, and low-maintenance lifting system.
Product Advantages
Advanced Lightweight and Compact Design
Utilizing sophisticated FEM (Finite Element Method) analysis, the Weiyuan HD Model crane features an optimized, lightweight structure with smaller dimensions and lower wheel loads. Its signature low-headroom hoist design maximizes the effective lifting height, making it the perfect high-performance crane for modern, space-efficient buildings with limited vertical clearance.
Superior Performance with Standard VFD Control
This crane comes standard with Variable Frequency Drives (VFDs) for hoisting, trolley travel, and bridge travel. This provides smooth, stepless speed control, which eliminates load shock, minimizes swing, and allows for the precise and gentle positioning of valuable or delicate components. This leads to safer operations and reduced mechanical wear on the crane.
High Efficiency and Energy Savings
The advanced, high-efficiency motors and VFD systems consume significantly less power during operation. Combined with the crane’s lightweight design, this reduces overall energy consumption, leading to lower electricity bills and a more environmentally friendly operation, making it a truly sustainable industrial lifting solution.
Enhanced Durability and Low Maintenance
Engineered for A5 medium-duty performance, this crane features high-quality hardened gear motors, premium-grade wire ropes, and electrical components from world-leading brands like Schneider and Siemens. The robust, modular construction ensures a long service life with minimal maintenance requirements, maximizing your facility’s uptime and productivity.
Comprehensive Safety and Intelligent Features
Safety is at the core of the HD Model’s design. This high-performance crane is equipped with a full suite of safety features, including an overload protection limiter, dual lifting and travel limit switches, an anti-sway system, and high-performance electromagnetic brakes, ensuring fail-safe operation and protecting both personnel and property.
Application Scenarios
High-Tech Manufacturing and Automotive
Ideal for modern manufacturing plants where precision is crucial. The HD Model is used for handling molds, assembling components, and moving finished products with exceptional accuracy and control, such as in automotive or aerospace assembly lines.
General Engineering and Machine Shops
Perfect for machine shops that require precise loading and unloading of workpieces onto CNC machines. The smooth VFD control of this industrial lifting solution protects both expensive machine tools and the parts from accidental impact.
Clean Rooms and Pharmaceutical Facilities
With its smooth, quiet operation and minimal dust generation from brake wear, the Weiyuan HD Model crane can be adapted for use in controlled environments where cleanliness and precision are critical.
Warehousing and High-Value Logistics
An excellent choice for warehouses handling high-value or fragile goods. The gentle and precise movement provided by the VFDs ensures that sensitive products are handled safely, drastically reducing the risk of damage during storage and transit.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1t, 2t, 3t, 5t, 10t, 16t, 20t |
| Crane Span | 6.5m – 28.5m (Customizable) |
| Lifting Height | Up to 18m (Customizable) |
| Crane Type | HD Model European Electric Single Girder Crane |
| Work Level | A5 (Medium Duty) |
| Hoisting Mechanism | European Low-Headroom Wire Rope Hoist |
| Lifting Speed | Dual Speed with VFD (e.g., 0.8/5 m/min) |
| Travel Speed | VFD Stepless Control (e.g., 2-20 m/min) |
| Control Method | Wireless Remote Control (Standard), Pendant Control (Optional) |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider, Siemens, ABB, or equivalent reputable brands |
| Protection Class | IP55 for motors, IP65 for electric cabinet |
Features at a Glance
✓ European Standard Design: Advanced, lightweight, and highly efficient.
✓ Versatile Capacities: From 1t to 20t for a wide range of modern industrial needs.
✓ Standard VFD Control: For smooth, precise, and safe operation on all axes.
✓ Low-Headroom Hoist: Maximizes lifting height in space-constrained buildings.
✓ Energy-Efficient Motors: Reduces operational costs and environmental impact.
✓ High-Quality Components: Ensures long life, reliability, and low maintenance.
✓ Comprehensive Safety Systems: Overload protection and dual limit switches included.
FAQ
Q: What makes the Weiyuan HD Model different from a standard single girder crane?
A: The Weiyuan HD Model is a European-style high-performance crane. It is designed to be lighter, more compact, and more energy-efficient. Key differences include its low-headroom hoist for greater lifting height, standard VFD controls for all movements for superior precision, and the use of high-performance, maintenance-free components for a lower lifetime operating cost.
Q: Is the HD Model crane more expensive than a traditional crane?
A: While the initial investment for an HD Model crane may be higher than a traditional one, its total cost of ownership is often significantly lower. This is due to its lower energy consumption, reduced structural requirements for the building, minimal maintenance needs, and longer, more reliable service life.
Q: What is the main benefit of having VFD control on all crane movements?
A: Standard VFD control provides extremely smooth acceleration and deceleration. This minimizes load swing, reduces stress on the crane structure, and allows the operator to position loads with exceptional accuracy. It’s a major advantage for safety, especially when handling fragile or expensive items.
Q: What kind of runway and support structure is required for this crane?
A: The HD Model runs on an elevated runway beam system supported by your building’s columns or an independent steel structure. Because this industrial lifting solution is lighter, it imposes smaller loads on the building, which can sometimes lead to savings in the cost of the runway system and building foundations. A professional structural evaluation is always required.
Q: How does Weiyuan ensure the quality of its HD Model cranes?
A: Weiyuan combines its decades of manufacturing experience with advanced European crane technology. Each HD Model crane is engineered by our expert team, fabricated under strict ISO-certified quality controls using certified steel, and equipped with world-class components. We conduct comprehensive performance and load testing to ensure every crane meets the highest international standards for safety and reliability.
