Weiyuan LX Type Electric Single Girder Suspension Overhead Crane
Product Overview

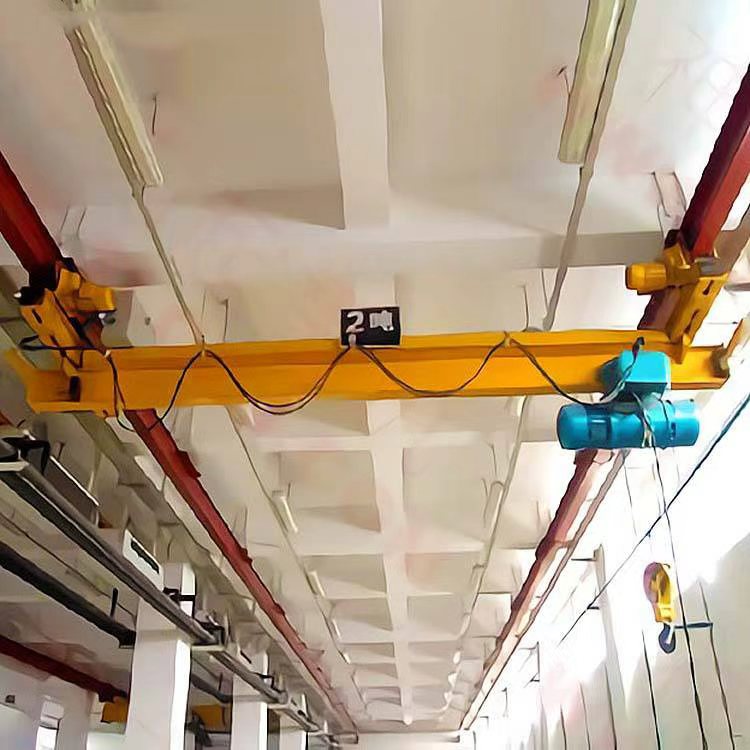

The Weiyuan LX Type Electric Single Girder Suspension Overhead Crane is a lightweight and highly efficient lifting solution engineered for modern workshops and plants with limited space. This crane utilizes the building’s existing roof structure as the support track, running directly underneath I-beam rails—completely freeing up valuable floor space. Paired with a reliable CD/MD electric hoist, the LX suspension crane excels with its compact size, low headroom requirement, light dead weight, and minimal wheel load, making it the ideal choice for efficient material handling in constrained environments.
Product Advantages
Maximized Space Utilization
By suspending directly from the overhead track, this crane eliminates the need for floor supports, providing more room for production, equipment layout, and personnel movement. It is particularly suitable for facilities with low or crowded workspaces.
Lightweight and Cost-Effective Design
The LX crane features an optimized single girder structure, making it simple and lightweight. Compared to conventional bridge cranes, it imposes less load on your building structure, thus saving on construction costs. Its standardized manufacturing also ensures an excellent return on investment.
Smooth Operation and Precise Positioning
Running steadily on I-beam rails and driven by a reliable electric hoist, this crane delivers precise lifting and smooth material transport. Optional remote control allows operators to work from a safer, more visible position, increasing efficiency and safety.
Highly Customizable
Every solution from Weiyuan is tailored to customer needs. We offer bespoke configurations for lifting capacity, span, lifting height, and travel speed—guaranteeing the crane integrates perfectly into your production workflow.
Application Scenarios
- Machining and Assembly Workshops: Ideal for overhead lifting and component transfer on production lines, increasing throughput.
- Warehouses and Storage Areas: Efficiently moves goods in spatially limited warehouses, optimizing logistics.
- Maintenance Stations: Perfect for lifting engines, molds, or heavy parts for repair areas without occupying floor space.
- Low-Clearance Facilities: Specially suited for buildings with limited headroom, offering a practical lifting solution where spaces are tight.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Lifting Capacity | 0.5t, 1t, 2t, 3t, 5t, 10t (customizable) |
| Span | 3m – 16m (customizable) |
| Lifting Height | 6m, 9m, 12m, 18m (customizable) |
| Work Duty | A3 – A5 |
| Hoist Type | CD/MD wire rope electric hoist |
| Control Method | Pendant control / wireless remote control |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-phase |
| Ambient Temperature | -20°C to +40°C |
Features at a Glance
✓ Suspension design: Releases 100% of your floor space for production
✓ Compact structure: Ideal for low-headroom applications
✓ Lightweight engineering: Reduces load on the building structure
✓ Smooth operation: Ensures safety and accuracy in handling
✓ Fully customizable: Tailor-made for your unique operational needs
✓ Safety assured: Equipped with overload protection, emergency brakes, and more
FAQ
Q: What is a suspension overhead crane and how is it different from a standard single girder bridge crane?
A: A suspension overhead crane (LX type) runs on rails mounted beneath the roof trusses of a building, with the crane body suspended below. In comparison, a standard single girder crane (LDA type) runs on runway beams supported by columns or brackets. The LX type is more space-efficient and especially suitable for facilities without pre-installed support brackets.
Q: What are the building requirements for installing this crane?
A: Your building must have adequately load-bearing roof structures or I-beam girders to support the crane and its runway tracks. Weiyuan will provide detailed load data and technical guidance to help your structural engineer evaluate compatibility during the design phase.
Q: Can this crane be used in explosive or corrosive environments?
A: The standard LX configuration is not suitable for use in flammable, explosive, or highly corrosive environments. However, Weiyuan can provide custom explosion-proof models for special requirements—please contact us for details.
Q: How can I get a quote for a 5-ton suspension crane?
A: To receive an accurate offer, please provide the following information: 1) Required lifting capacity (e.g., 5 tons); 2) Desired span (distance between runway centers); 3) Desired lifting height; 4) Your facility’s power supply. We will respond promptly with a detailed and customized proposal.
