Weiyuan Type Double Girder Overhead Crane | Heavy-Duty, High-Performance, Customizable
Product Overview

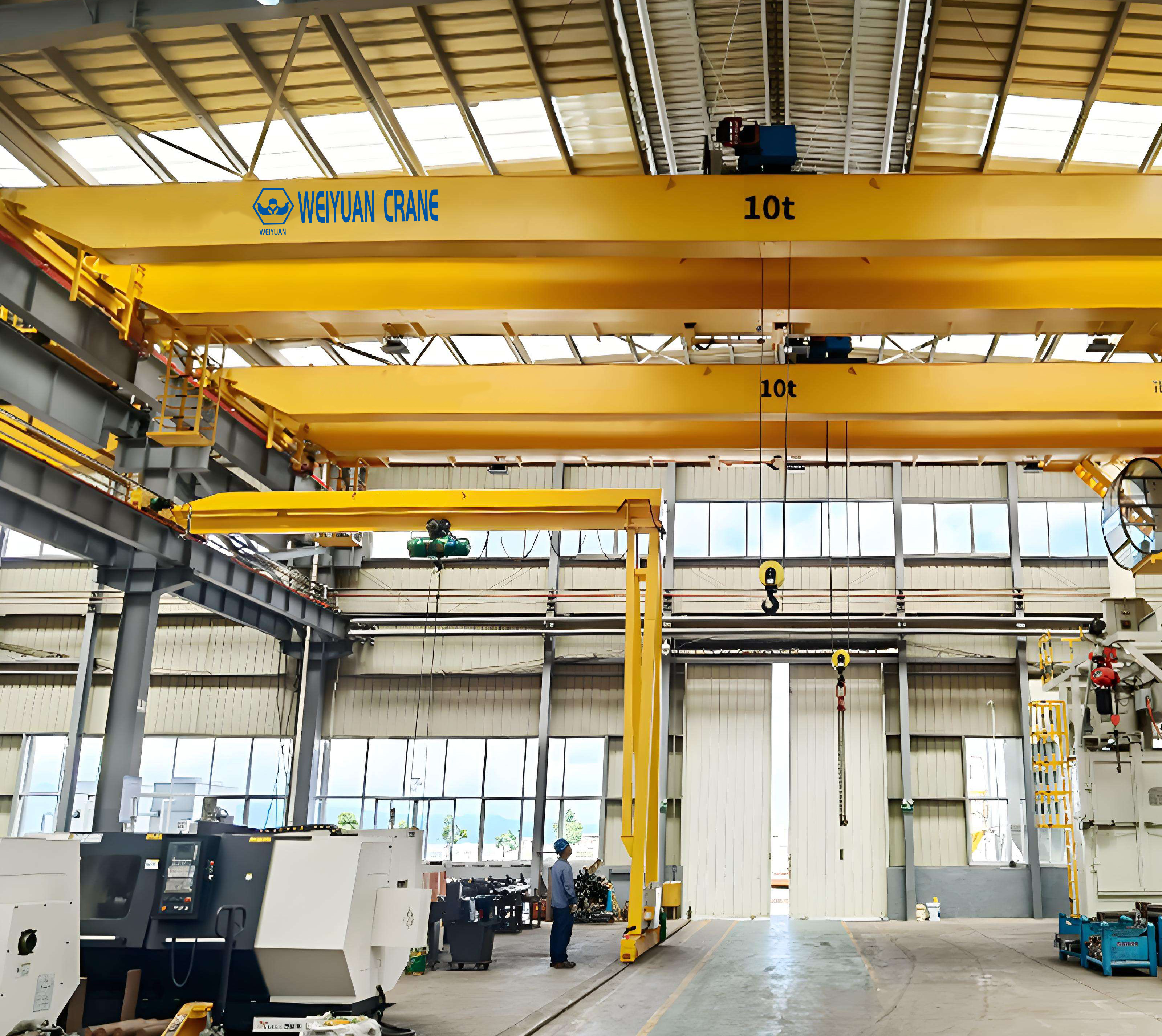

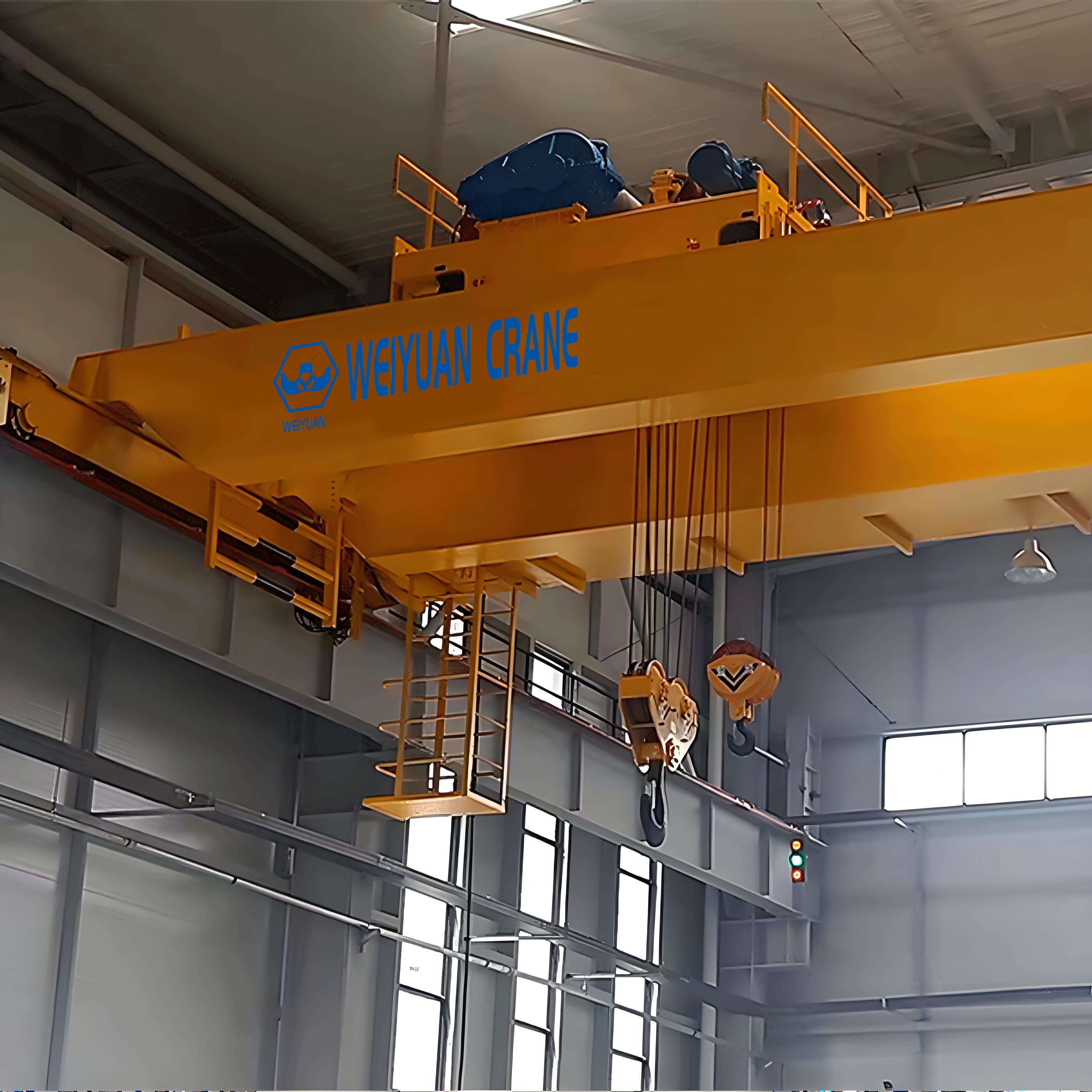

The Weiyuan Type Double Girder Overhead Crane is engineered for heavy-duty lifting and high-frequency use in demanding industrial environments. Featuring a robust double-beam bridge structure, this crane provides exceptional stability and strength for handling substantial loads. The trolley, equipped with a powerful electric hoist, travels along rails on top of the two main girders, allowing for maximum lifting height and superior performance. Ideal for steel mills, large manufacturing plants, and heavy fabrication shops, the QD model is the definitive solution for safe and efficient heavy material handling.
Product Advantages
- Exceptional Strength and Stability: The double girder design provides a strong, rigid structure that minimizes deflection under heavy loads, ensuring precise and stable lifting operations.
- High Lifting Capacity and Height: Built to handle capacities ranging from 5 to over 550 tons, this crane’s design allows the hook to be raised between the two girders, maximizing the available lifting height within your facility.
- Heavy-Duty Performance: With a working duty classification from A5 to A8, the Weiyuan crane is designed for continuous, high-intensity operations in the toughest industrial settings.
- Customizable for Your Needs: Each crane is engineered to your exact specifications, including capacity, span, lifting height, and control method. Options for cabin control, wireless remote, and advanced features are available.
- Enhanced Safety and Reliability: Equipped with a full suite of safety devices, including overload protection, emergency stop systems, and multiple limit switches. The use of high-quality components ensures long-term reliability and low maintenance.
Application Scenarios
- Steel Mills and Metal Processing: Perfectly suited for handling heavy steel coils, slabs, billets, and finished products throughout the production process.
- Heavy Manufacturing and Assembly: Provides powerful lifting for large machinery, engines, turbines, and other oversized components on assembly lines.
- Power Plants: Essential for maintenance and installation tasks, including the lifting of generators, turbines, and other heavy equipment.
- Large Warehouses and Stockyards: Efficiently moves heavy inventory, dies, and molds in storage and distribution centers.
- Paper Mills: Capable of handling heavy paper rolls and machinery with the required precision and power.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 5t to 550t (Customized to your needs) |
| Span | 10.5 m to 31.5 m (Customized to your facility width) |
| Max. Lifting Height | Up to 50 m (Customized as per demand) |
| Work Duty | A5–A8 (Heavy to Severe Duty) |
| Lifting Speed | Variable, customized for application needs |
| Trolley Traveling Speed | Variable, customized for application needs |
| Crane Traveling Speed | Variable, customized for application needs |
| Control Methods | Cabin Control (Standard), Wireless Remote Control, Pendant Control |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Electrical Components | Schneider, Siemens, or equivalent premium brands |
| Safety Devices | Overload limiter, emergency stop, travel and lifting limit switches, anti-collision system |
| Working Temperature | -25°C to +40°C (Special designs for other temperatures available) |
| Protection Class | IP54 / IP55 |
| Steel Grade | Q235B / Q355B High-Strength Carbon Steel |
| Braking System | Hydraulic and electromagnetic disc brakes for all movements |
| Warranty | 1 Year |
| Lead Time | 30–60 days (negotiable for specific configurations) |
Features at a Glance
- High-performance Weiyuan type double girder crane for heavy-duty applications.
- Exceptional lifting capacity and height for maximum operational flexibility.
- Fully customizable design with multiple control options.
- Robust construction and advanced safety features for reliable performance.
- Supported by expert installation, training, and after-sales service.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
