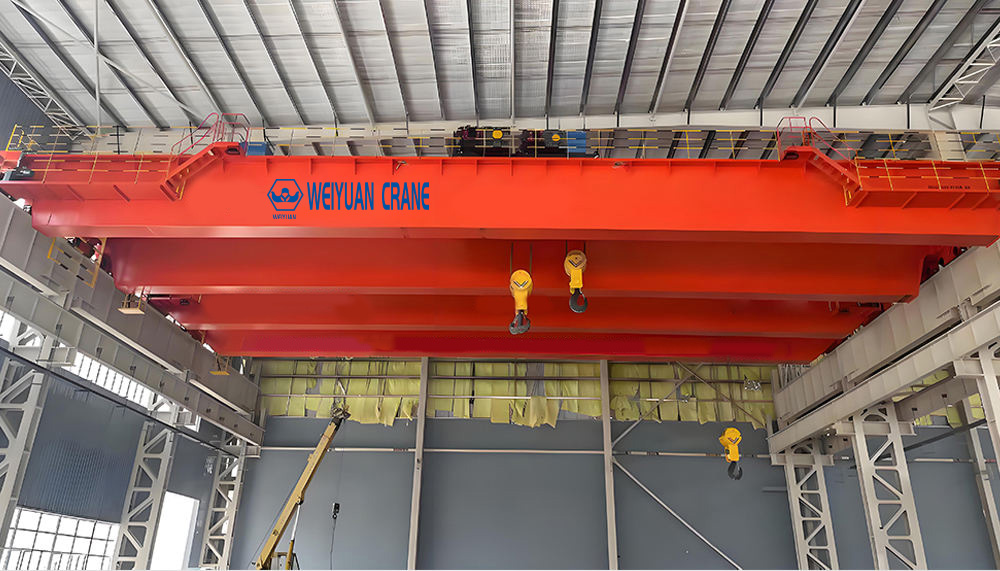

Weiyuan Weiyuan QD Type Overhead Crane for Steel Mills | Heavy-Duty, Heat-Resistant, High-Performance
Product Overview
The Weiyuan Weiyuan QD Type Overhead Crane for Steel Mill Applications is a specialized, heavy-duty lifting solution engineered to thrive in the extreme conditions of the metal production industry. Built for high-frequency, high-temperature, and dust-filled environments, this crane features a robust double-girder structure for maximum stability and strength. It is equipped with advanced, heat-resistant components, including specialized hoists and motor insulation, to ensure reliable performance when handling molten metal, steel slabs, and coils. This crane is the definitive choice for steel mills demanding uncompromising safety, durability, and efficiency.
Product Advantages
- Engineered for Extreme Environments: Designed with high thermal resistance, dust-proofing, and protective features to operate reliably in the harsh conditions of a steel mill, including proximity to furnaces and casting areas.
- Superior Safety for Critical Lifts: Equipped with redundant safety systems, such as dual brakes on main lifting mechanisms, overload limiters, temperature monitoring, and emergency stops, to ensure the highest level of safety when handling molten metal and other critical loads.
- Robust and Durable Construction: The crane’s structure uses high-strength steel (Q355B or higher) and features a heavy-duty trolley and end carriages, providing exceptional durability and a long service life under continuous, heavy-load operation (A7-A8 work duty).
- High-Performance and Precision: Features powerful motors with variable frequency drives (VFD) for smooth, precise control over all movements. This allows for gentle acceleration and deceleration, minimizing load swing and enhancing operational accuracy.
- Customization for Specific Mill Tasks: Can be configured as a casting crane, charging crane, slab handling crane, or coil handling crane, with specialized lifting attachments like ladles, magnets, or C-hooks to meet the unique demands of each process stage.
Application Scenarios
- Casting Bays: Safely transports and pours ladles of molten steel or iron into molds with precision and stability.
- Furnace Charging: Reliably lifts and feeds scrap metal and other raw materials into electric arc furnaces (EAF) or basic oxygen furnaces (BOF).
- Slab and Billet Handling: Efficiently moves hot or cold steel slabs, billets, and blooms from the continuous caster to the rolling mill or storage yard.
- Rolling Mills: Positions heavy steel sections for entry into rolling stands and transports finished products.
- Coil and Plate Storage Yards: Manages the lifting, stacking, and transportation of heavy steel coils and plates using specialized magnets or C-hooks.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 20t to 550t (Customized for specific application) |
| Span | 10.5 m to 35 m (Engineered to fit your plant layout) |
| Max. Lifting Height | Up to 60 m (Customized for facility requirements) |
| Work Duty | A7–A8 (Severe, Continuous Duty) |
| Lifting Speed | Customized with VFD control for smooth operation |
| Trolley Traveling Speed | Customized with VFD control for smooth operation |
| Crane Traveling Speed | Customized with VFD control for smooth operation |
| Control Methods | Air-conditioned Cabin Control (Standard), Wireless Remote (Auxiliary) |
| Power Supply | 3-Phase 380V-480V, 50/60Hz |
| Motor Insulation Class | Class H (Heat-resistant for high-temperature areas) |
| Safety Devices | Dual braking system, overload limiter, temperature alarms, anti-collision, emergency stop, advanced limit switches |
| Working Temperature | Up to +60°C or higher with special design |
| Protection Class | IP55 or higher |
| Steel Grade | Q355B or higher High-Strength Carbon Steel |
| Braking System | Hydraulic and electromagnetic disc brakes with redundancy |
| Warranty | 1.5 Years |
| Lead Time | 45–90 days (Based on customization complexity) |
Features at a Glance
- Specialized Weiyuan Weiyuan QD type double girder crane for heavy-duty steel mill applications.
- Heat-resistant and dust-proof design for extreme working conditions.
- Advanced, redundant safety features for handling molten metal and critical loads.
- A7-A8 work duty classification for continuous, high-frequency use.
- Fully customizable with VFD controls and specialized lifting attachments.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
