Weiyuan Workshop Double Girder Overhead Crane
Product Overview

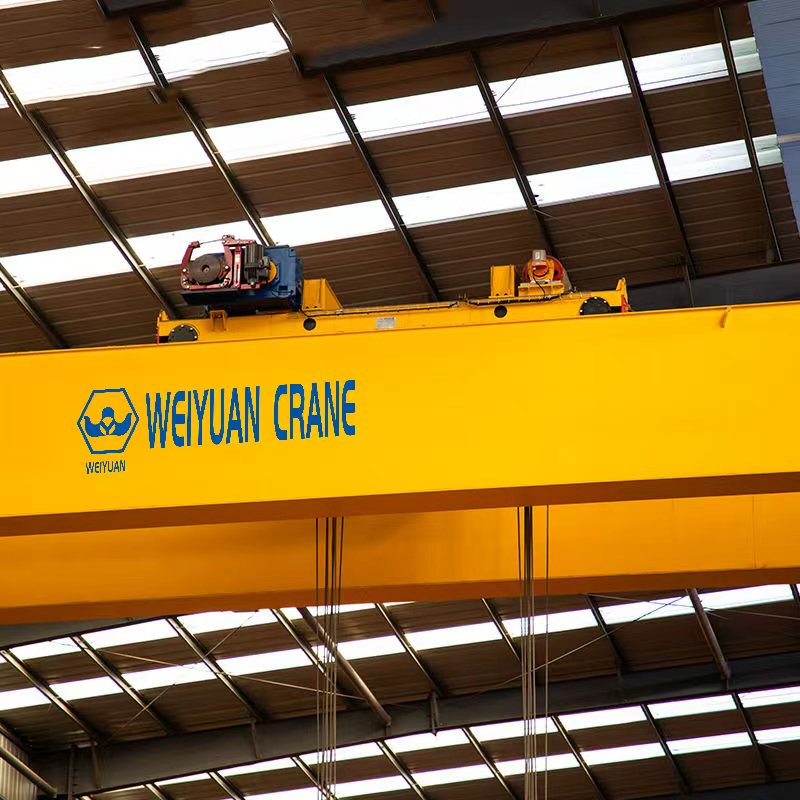

The Weiyuan LH Model Double Girder Overhead Crane is the quintessential lifting solution for modern workshops and manufacturing facilities. Engineered for efficiency and reliability, this crane combines a strong, lightweight design with powerful performance. Featuring a robust double-girder bridge and a high-performance hoist trolley, it is designed to handle loads from 5 to 32 tons with precision and ease. Its adaptable nature makes it an invaluable asset for assembly, maintenance, and material handling tasks, helping to boost productivity and ensure a safe, streamlined workflow.
Product Advantages
Optimized for Workshop Environments
The LH model is specifically designed with workshop applications in mind. Its structure provides excellent lifting height and stability, while the double-girder frame ensures superior strength for handling a variety of loads. This configuration is ideal for mechanic processing workshops, subsidiary metallurgical mills, and warehouses where reliable and frequent lifting is a daily requirement.
Robust and Lightweight Construction
Engineered for an A3-A5 work duty, this crane is built to last. The main girders feature a strong, box-type steel structure that provides excellent rigidity without excessive dead weight. This balance of strength and low weight reduces the load on your building’s structure and ensures smooth, efficient travel along the runway, contributing to a longer service life with less wear.
Flexible and Safe Control Systems
Operator control and safety are integral to the design. The crane offers versatile control methods, including a comfortable, enclosed cabin for a protected, panoramic view, or a wireless remote control that allows the operator to manage the lift from the safest possible vantage point. A comprehensive suite of safety features, including overload protection, emergency stop, and travel limit switches, ensures every operation is secure.
Fully Customizable for Your Workspace
We believe your crane should be a perfect fit for your operations. The Weiyuan LH model is fully customizable. You can specify the lifting capacity, span (from 10.5m to 31.5m), lifting height, and power supply. We can also tailor the control method and color to seamlessly integrate the crane into your existing workshop environment and workflow.
Application Scenarios
- Manufacturing Plants: Ideal for moving heavy parts, die sets, and finished goods between workstations, boosting production efficiency.
- Machinery Repair Shops: Excellently suited for lifting engines, transmissions, and other heavy components with the precision needed for maintenance and assembly.
- General Warehousing: Perfect for loading, unloading, and organizing heavy inventory, streamlining logistics and material flow.
- Steel Fabrication Shops: Provides the power and stability required to handle raw steel, fabricated sections, and other materials in a demanding environment.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Lifting Capacity | 5T, 10T (Customizable up to 32T) |
| Span | 10.5m – 31.5m (Customizable) |
| Lifting Height | 6m, 9m, 15m (Customizable) |
| Work Duty | A3 – A5 (Light to Medium Duty) |
| Lifting Mechanism | Electric Hoist Trolley |
| Lifting Speed | Up to 7 m/min |
| Crane Traveling Speed | 20 m/min |
| Control Method | Cabin Control + Wireless Remote Control (Customized) |
| Main Electrical Parts | Schneider, Siemens (or equivalent brands) |
| Power Supply | 3-Phase 380V 50Hz (Customizable) |
Features at a Glance
✓ Workshop Optimized Design: High stability and efficiency for manufacturing environments.
✓ A3-A5 Work Duty: Built for reliable performance in light to medium-duty applications.
✓ Robust Double Girder Frame: Ensures structural integrity and safe load handling.
✓ Comprehensive Safety Systems: Equipped with overload protection and limit switches for secure operation.
✓ Dual Control Options: Available with cabin and wireless remote control for operational flexibility.
✓ Fully Tailored Solution: Customize capacity, span, and height to fit your workshop’s exact needs.
Frequently Asked Questions
Q: What is the benefit of a double girder crane for a 10-ton capacity in a workshop?
A: A double girder design provides greater stability and higher hook height compared to a single girder crane. This is particularly advantageous in workshops where you might need to lift and flip large objects or require maximum vertical clearance. The two girders create a more rigid platform for the hoist trolley, reducing sway and enabling more precise load placement.
Q: What does the A3-A5 work duty rating mean for this crane?
A: The work duty classification indicates the crane’s suitability for different levels of operational intensity. An A3-A5 rating means this crane is perfectly engineered for light to medium service, handling intermittent lifting cycles in typical workshop environments. It ensures a long operational life under normal manufacturing and maintenance conditions.
Q: Can this crane be installed on my existing workshop’s support structure?
A: Yes, in most cases. The LH model is designed for installation on standard runway systems. Our engineering team will work with you to review your workshop’s structural drawings and specifications to confirm that the columns and beams can safely support the crane and its maximum rated load.
Q: How do I get a quote for a 10-ton workshop crane?
A: For an accurate quote, please provide our team with your key requirements: the lifting capacity (10 tons), the span of your workshop bay, the necessary lifting height, your facility’s power supply details, and your preferred control method. We will promptly prepare a detailed technical proposal and quotation for you.
