Gantry crane

Product Overview

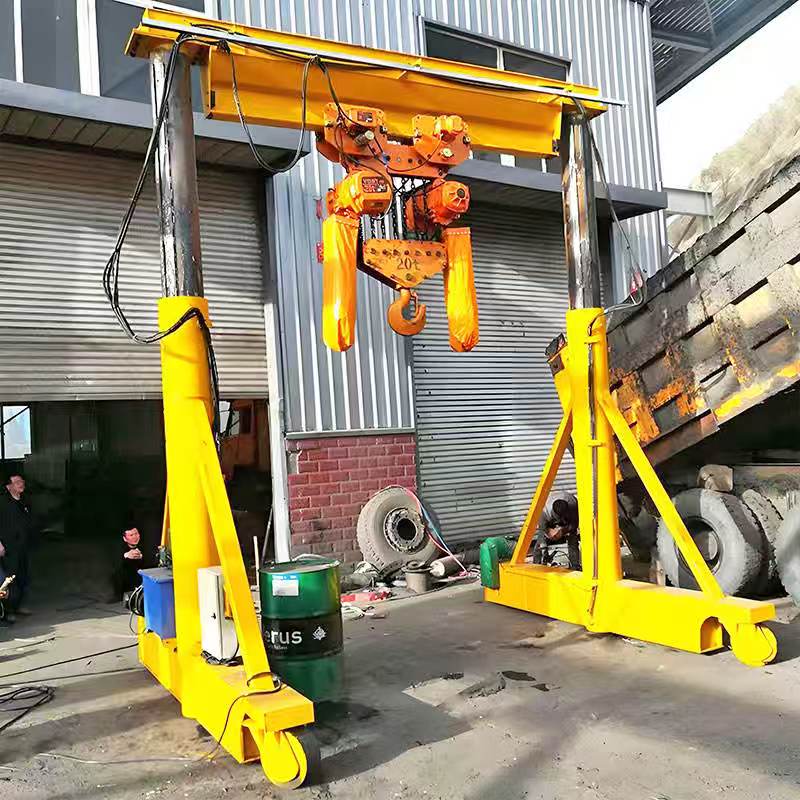

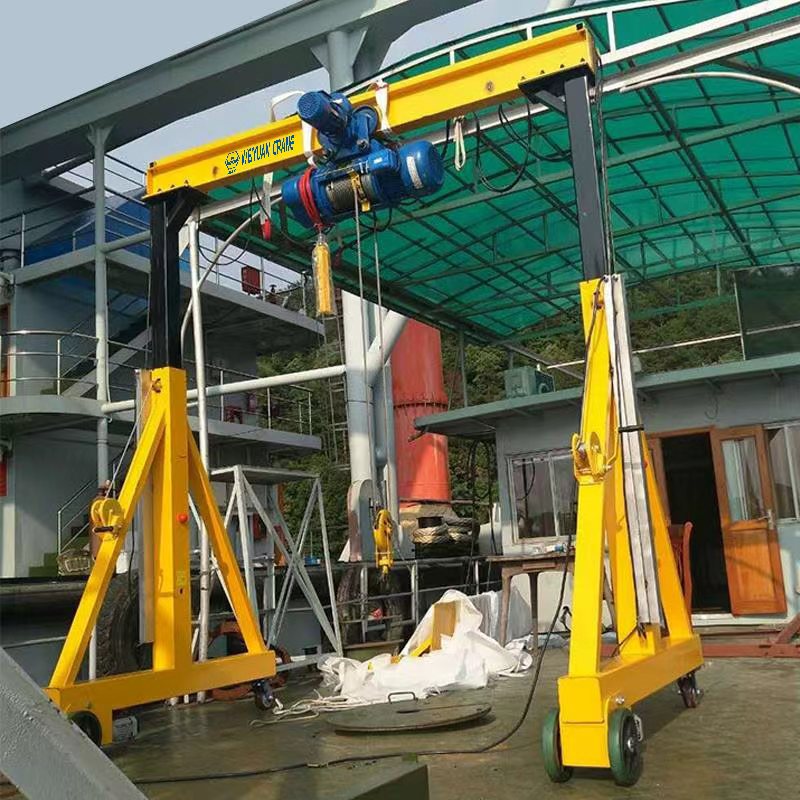

The Weiyuan Adjustable Height Span Portable Gantry Crane is a highly versatile and robust material handling solution designed for dynamic indoor and workshop environments. This trackless, mobile gantry crane is engineered to provide exceptional lifting flexibility where it’s needed most. Featuring an easily adjustable height and span, it can be perfectly tailored to a wide range of tasks, from lifting heavy materials in a warehouse to precise positioning in a construction application. The system is equipped with a high-performance electric hoist and can be operated via pendant or remote control, offering both power and precision. Its ability to move freely without rails makes it one of the most popular and practical lifting solutions available.

Product Advantages

Fully Adjustable Design

This crane offers exceptional adaptability with both adjustable lifting height and span. This allows it to be customized for specific jobs, navigate through doorways and around obstacles, and be configured for a variety of workspace layouts, ensuring maximum utility.

Trackless Mobility

Equipped with universal casters featuring a durable brake device, the crane can be moved manually or with an electric drive system. This trackless design provides ultimate freedom of movement on any flat surface, eliminating the need for costly and permanent rail installations.

Versatile Control Options

Operators can choose between a standard pendant control for direct, hands-on management or a wireless remote control for enhanced safety and visibility. This flexibility ensures precise and safe operation in any scenario.

Wide Capacity Range

Engineered to handle a broad spectrum of lifting needs, this portable gantry crane is available in capacities ranging from 0.5 to 10 tons. This makes it a suitable choice for everything from small workshop tasks to more demanding industrial lifting.

Simple and Efficient

The crane’s straightforward design allows for quick assembly and easy operation. Paired with a reliable electric hoist, it streamlines material handling processes, boosts productivity, and reduces the physical strain on your workforce.

Application Scenarios

Manufacturing and Assembly Workshops

Ideal for workshop workstations where lifting and moving heavy components, dies, or finished products is a regular task. Its mobility allows it to serve multiple areas without the need for a fixed overhead crane.

Warehouses and Material Delivery

Perfect for loading, unloading, and repositioning heavy goods in warehouses. Its trackless design allows it to navigate aisles and access areas that are difficult to reach with other equipment.

Construction and Installation Sites

A valuable asset on construction sites for lifting building materials, tools, and equipment. Its portable nature means it can be easily transported to and set up at various job sites as needed.

Indoor Maintenance and Repair

Excellent for maintenance departments that need a reliable lifting solution for servicing heavy machinery or equipment. The adjustable height provides the clearance needed for a variety of repair tasks.

Product Specifications and Dimensions

Specification	Parameters
Lifting Capacity	0.5t to 10t load range
Span Coverage	3m to 10m adjustable span
Lifting Height	Up to 10m adjustable height
Work Level	A3 – A6
Lifting Mechanism	Electric Hoist
Control Method	Pendant control or Remote control
Voltage	380V/50HZ/3Ph AC (or customized)
Working Environment	-20°C to 40°C

Features at a Glance

✓ Adjustable Height & Span: Fully customizable dimensions to fit diverse operational needs.

✓ Trackless and Mobile: Moves freely on universal casters with a secure braking system.

✓ Electric Hoist Powered: Delivers reliable and efficient lifting for loads up to 10 tons.

✓ Flexible Control: Options for both pendant and wireless remote control for safe operation.

✓ Broad Application: Designed for use in workshops, warehouses, and construction sites.

✓ Customizable Power: Voltage can be tailored to meet customer-specific requirements.

✓ Durable Construction: Built for A3-A6 duty cycles, ensuring reliability in various industrial environments.

FAQ

Q: What is the main benefit of a trackless gantry crane?

A: The primary benefit is flexibility. Without the need for fixed rails, the crane can be moved anywhere on a flat, solid surface. This makes it ideal for facilities where lifting needs change or for serving multiple workstations with a single piece of equipment.

Q: How is the height adjusted on this crane?

A: The height can be adjusted using a manual or electric winch system built into the support legs, allowing for quick and easy changes to the beam height to accommodate different lifting requirements or pass-through low clearance areas.

Q: Is this crane suitable for outdoor use?

A: While primarily designed for indoor use in workshops and warehouses, it can be used outdoors on a firm, level surface. Custom paint and protective measures can be added for enhanced durability in outdoor environments.

Q: What information do I need to provide to get a customized crane?

A: To ensure the crane meets your needs, please provide your required maximum lifting capacity (in tons), the desired span (width), the maximum lifting height, and your local power source standard (e.g., 380V, 50Hz, 3-phase).

Q: Can I choose the color of the crane?

A: Yes, we offer color customization. You can select a color based on your company’s branding or safety standards.
