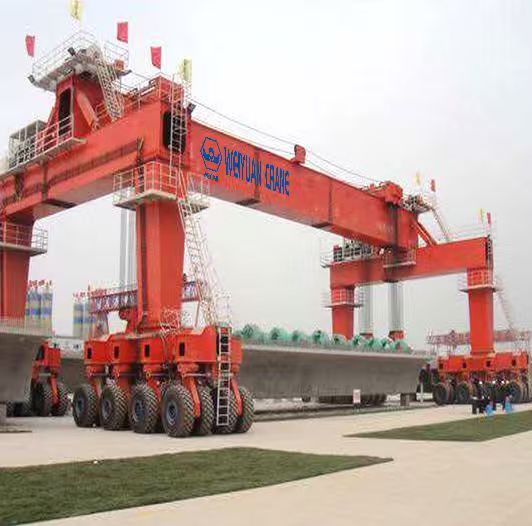

Gantry crane
Electric Single Beam Gantry Crane
Product Overview
The Weiyuan Electric Single Beam Crane, available in capacities from 10 to 25 tons, is a highly efficient and versatile lifting solution designed for modern industrial environments. This overhead crane, also known as a bridge crane, provides exceptional performance for a wide range of applications, including workshops, warehouses, manufacturing facilities, and assembly lines. Its streamlined single-girder design makes it lightweight, cost-effective, and easy to install. Paired with a robust electric hoist, this crane is engineered to enhance productivity, improve workflow safety, and provide reliable material handling for all your medium to heavy-duty lifting needs.
Product Advantages
Cost-Effective and Efficient Design
The single-girder structure is optimized for strength while using less material than a double-girder crane, making it a highly economical choice. Its lighter weight reduces the structural load on your building’s runway beams, which can significantly lower installation costs and time.
Robust and Durable Construction
Built from high-quality Q235B or Q345B steel, the main beam and end carriages are fabricated for maximum strength and a long service life. The crane is engineered to handle its full rated capacity with a high safety factor, ensuring dependable performance in demanding work cycles.
Smooth and Precise Operation
Equipped with a high-performance electric hoist and advanced drive motors, the crane delivers smooth and stable movement across all three axes. For applications requiring greater precision, optional Variable Frequency Drives (VFDs) provide stepless speed control, reducing load swing and enabling accurate positioning.
Optimized Workspace Utilization
By running on elevated runway beams, this crane keeps your factory floor completely clear and free from obstructions. The compact, low-headroom design of the hoist maximizes the vertical lifting height, allowing you to make the most of your available workspace.
High Reliability and Low Maintenance
Featuring standardized, high-quality components from globally trusted brands like Schneider and Siemens, this crane is built for reliability and requires minimal maintenance. The simple design provides easy access to all key parts, simplifying routine inspections and service to reduce downtime.
Application Scenarios
General Manufacturing and Workshops
A perfect workhorse for fabrication shops, machine shops, and industrial plants. It is ideal for lifting and moving raw materials, heavy components, and finished products between workstations.
Warehousing and Logistics
An excellent tool for loading and unloading heavy goods from trucks, organizing inventory, and moving stock within a warehouse. It can efficiently handle heavy pallets, crates, and equipment up to 25 tons.
Assembly and Production Lines
Provides crucial support for progressive assembly operations where heavy parts need to be moved accurately from one station to the next. It reduces manual handling, improves safety, and accelerates production cycles.
Steel Service Centers
Well-suited for handling steel plates, coils, and structural sections in steel distribution and service centers. It helps to streamline operations and improve overall productivity in metalworking environments.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 10 Ton, 16 Ton, 20 Ton, 25 Ton (Customizable 1t to 32t) |
| Span Coverage | 7.5m – 31.5m (Customizable) |
| Lifting Height | Up to 30m (Customizable) |
| Material | High-Strength Q235B / Q345B Steel |
| Work Level | A3, A4, A5 (Light to Medium Duty) |
| Hoisting Mechanism | CD/MD Model Electric Wire Rope Hoist / European Hoist |
| Lifting Speed | 0.3/3.5 m/min to 0.8/8 m/min (Dual Speed) |
| Crane Travel Speed | 20 m/min or 30 m/min (VFD option available) |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V/415V/440V, 50/60Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider, Siemens, or equivalent reputable brands |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ Versatile Capacity: Available from 10 to 25 tons for a range of heavy tasks.
✓ Economical Single Girder: A cost-effective and highly reliable lifting solution.
✓ Durable Steel Construction: Ensures a long service life and dependable performance.
✓ Smooth and Stable Operation: Quality motors and hoist for precise material handling.
✓ Space-Saving Overhead Design: Keeps your workshop floor clear of obstructions.
✓ Fully Customizable: Span, height, and speeds tailored to your workshop’s needs.
✓ Flexible Control Options: Available with pendant or wireless remote control for safety and convenience.
FAQ
Q: When should I choose a single girder crane over a double girder crane?
A: A single girder crane is the ideal and most economical choice for lifting capacities up to 25-32 tons and for standard spans. A double girder crane is more suitable if you require a much higher capacity (over 32 tons), a very long span, faster lifting speeds, or need to perform extremely heavy-duty work (A6-A8 duty cycle).
Q: What information do I need to provide to get an accurate quotation?
A: To provide a precise quote and the best solution, we need to know the required lifting capacity (e.g., 10 ton, 25 ton), the crane span (the distance between the runway rails), the lifting height (from floor to hook), and your local power supply details (Voltage, Hz, Phase).
Q: Can this crane be installed in my existing building?
A: Yes. We can design the crane to fit your existing workshop. However, it is essential that a professional engineer verifies that the building’s support columns and runway structure can safely handle the loads imposed by the crane. We provide all necessary wheel load data for this evaluation.
Q: What safety features are included on the 10-25 Ton Single Beam Crane?
A: Safety is fundamental to our design. The crane comes standard with an overload protection system, main lifting and travel limit switches, an emergency stop button, and a high-quality braking system to ensure safe and reliable operation at all times.
Q: How does Weiyuan ensure the quality of its single beam cranes?
A: With nearly 40 years of manufacturing experience, Weiyuan has a mature, ISO-certified quality control system. From raw material inspection to final fabrication, every step is strictly monitored. All welds undergo non-destructive testing, and the completed crane is put through a comprehensive load test before shipment to guarantee it meets all international safety and performance standards.
