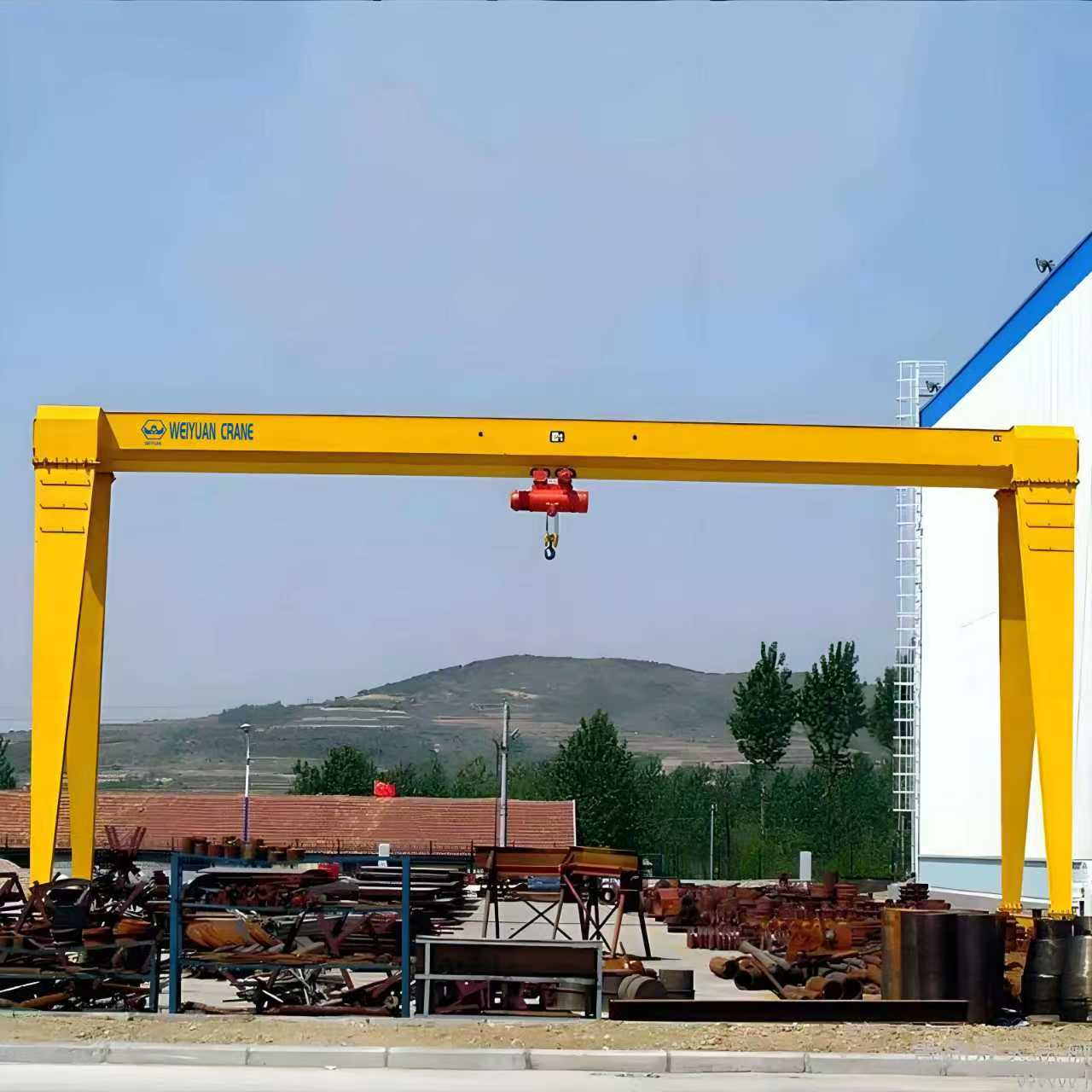

Electric Single Beam Gantry Crane 10 Ton
Product Overview
The Weiyuan Electric Single Beam Gantry Crane with a 10-ton capacity is a highly versatile and economical lifting solution designed for superior performance in both indoor and outdoor environments. Engineered for efficiency and reliability, this crane is perfect for workshops, warehouses, precast concrete yards, and logistics hubs where robust material handling is essential. Its streamlined single-girder structure makes it easy to install, operate, and maintain, providing a powerful lifting capability that enhances productivity and safety without the significant investment required for a double-girder system.
Product Advantages
Cost-Effective and Highly Efficient
The single-girder design is simpler and lighter, making it more economical to manufacture, transport, and install. This crane offers a powerful 10-ton lifting capacity that improves workflow efficiency, delivering a fast return on investment for your business.

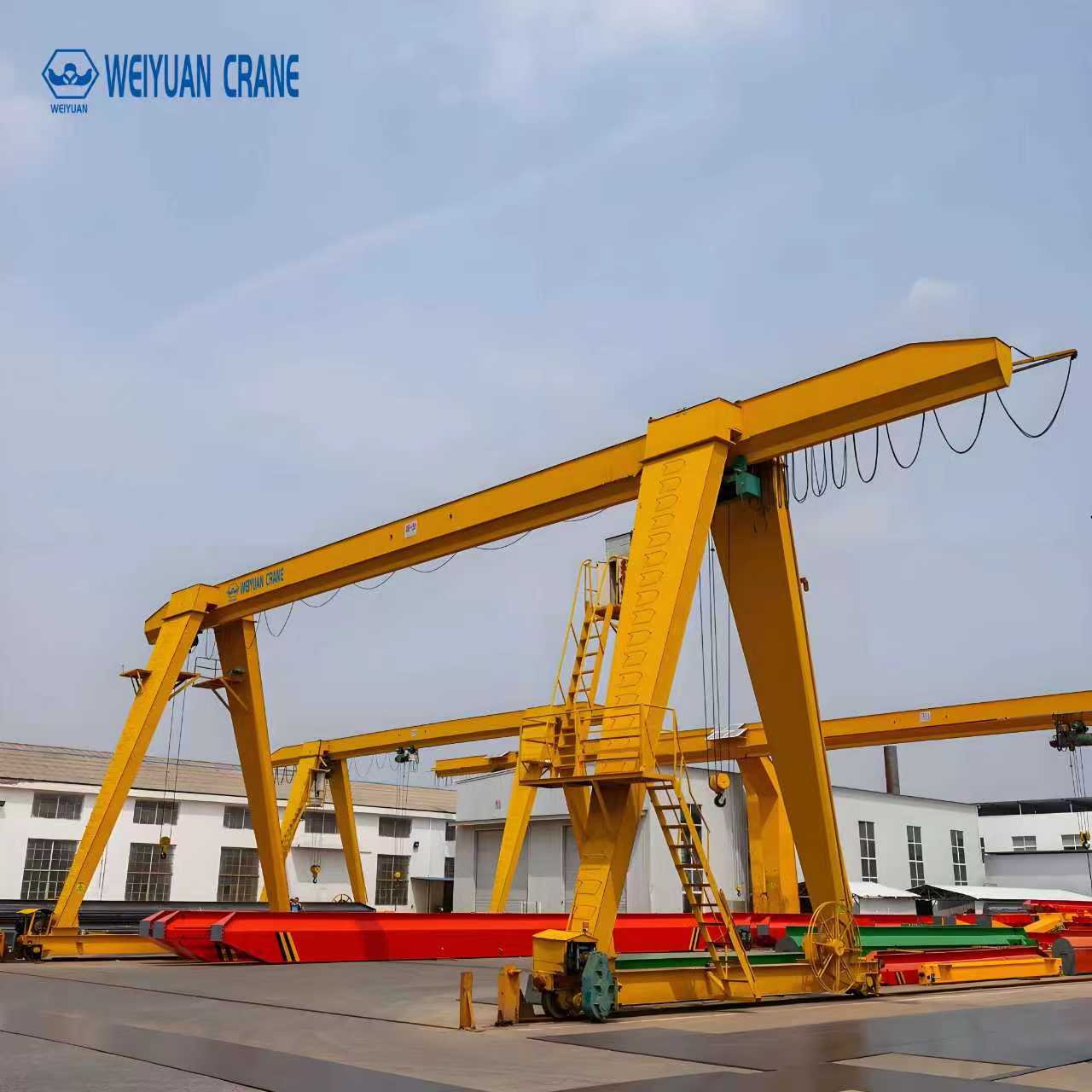

Robust A-Frame Structure
Built with a high-strength steel A-frame structure, the crane ensures exceptional stability and safety during lifting operations. The robust construction provides a durable platform, minimizing sway and ensuring reliable performance even under a full 10-ton load.
Versatile Application for Indoor and Outdoor Use
This gantry crane is designed for adaptability. It can be installed in outdoor stockyards, railway sidings, and open workshops where overhead runway beams are not practical. Its weather-resistant finish ensures long-term durability against the elements.
Simple Installation and Low Maintenance
Featuring a straightforward design with fewer components than more complex cranes, the single-beam gantry crane is quick to assemble. This structural simplicity also makes routine inspections and maintenance easy, reducing downtime and lowering the total cost of ownership.
Reliable and Safe Operation
Equipped with a high-performance electric hoist, high-quality motors, and dependable safety features like overload limiters and emergency stop functions, the crane ensures secure and reliable handling of materials. Control options include a user-friendly pendant or a wireless remote for enhanced operator safety.
Application Scenarios
Manufacturing and Assembly Workshops
Ideal for lifting heavy machinery, molds, and large components on the factory floor. The 10-ton capacity is perfect for moving items between workstations and supporting assembly processes.
Precast Concrete and Stone Yards
An excellent solution for handling heavy precast concrete elements, marble slabs, and granite blocks. Its robust structure can easily manage the demands of the stone and construction materials industry.
Warehousing and Logistics
Perfect for loading and unloading heavy goods from trucks and organizing inventory in warehouses and storage yards. It efficiently handles large crates, pallets, and other bulky materials up to 10 tons.
Steel Distribution and Fabrication
Provides efficient lifting and transport of steel plates, coils, and structural beams in steel service centers and fabrication shops, helping to streamline operations and improve productivity.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 10 Ton (Customizable from 1-20t) |
| Span Coverage | 8-30m (Customizable) |
| Lifting Height | 6-12m (Customizable) |
| Work Level | A3-A5 |
| Hoisting Mechanism | CD/MD Electric Wire Rope Hoist |
| Crane Travel Speed | 20-30 m/min |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 380V, 50Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider or equivalent reputable brands |
| Motor Brand | ABB/SIEMENS or domestic leading brands |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ 10-Ton Lifting Capacity: Perfectly suited for medium to heavy-duty lifting tasks.
✓ Customizable Dimensions: Span and lifting height are engineered to fit your site.
✓ Economical Single Girder: Provides a cost-effective lifting solution.
✓ Durable Steel Construction: A-frame design ensures stability and a long service life.
✓ Reliable Electric Hoist: Ensures safe, smooth, and efficient lifting.
✓ Indoor/Outdoor Versatility: Designed to perform in various environments.
✓ User-Friendly Controls: Available with pendant or wireless remote options for safe operation.
FAQ
Q: Is the 10-ton single girder gantry crane suitable for outdoor use?
A: Yes, absolutely. This crane is designed for both indoor and outdoor applications. For outdoor use, it is finished with a special anti-corrosion paint system, and we can add protective rain covers for the electric hoist and motors to ensure durability in all weather conditions.
Q: What is the difference between a full gantry and a semi-gantry crane?
A: A full gantry crane, like this model, has two legs that run on rails installed on the ground, making it a fully independent structure. A semi-gantry crane has one leg on a ground rail and the other side running on an elevated runway beam attached to a building wall or column, which is useful for saving space on one side of the work area.
Q: Can the crane’s span and height be customized?
A: Yes. Weiyuan specializes in providing customized solutions. We will design the crane’s span and lifting height to precisely match your facility’s dimensions and operational requirements, ensuring it fits your workspace perfectly.
Q: What type of foundation is required for this gantry crane?
A: The gantry crane runs on steel rails that must be installed on a solid, level concrete foundation. The foundation needs to be adequately prepared to support the weight of the crane and its 10-ton load. We can provide detailed foundation drawings and specifications to guide your civil work.
Q: How does Weiyuan ensure the quality of its 10-ton gantry cranes?
A: With nearly 40 years of manufacturing experience, Weiyuan operates under a strict ISO-certified quality control system. Every crane undergoes rigorous testing, including a full load test, before it leaves our factory. We provide a complete set of quality assurance documents and a detailed test report with every purchase to guarantee its safety, reliability, and performance.
