Gantry crane

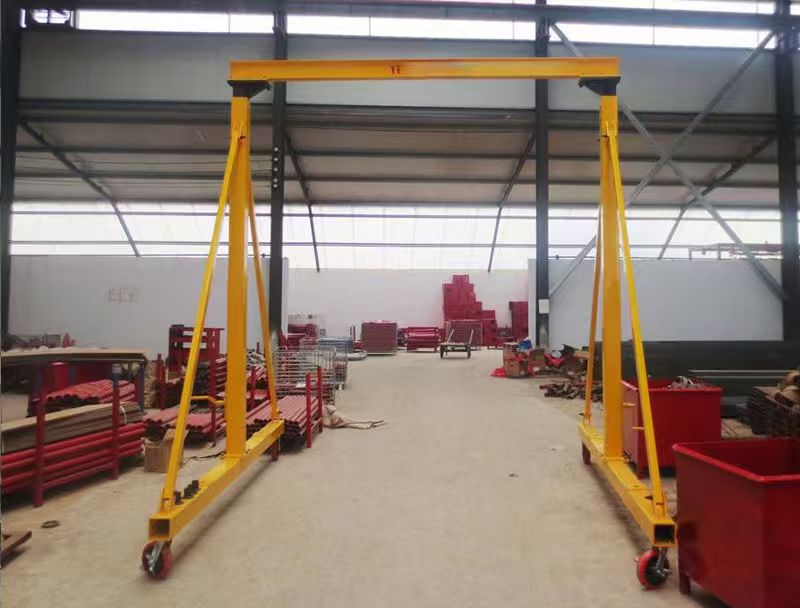

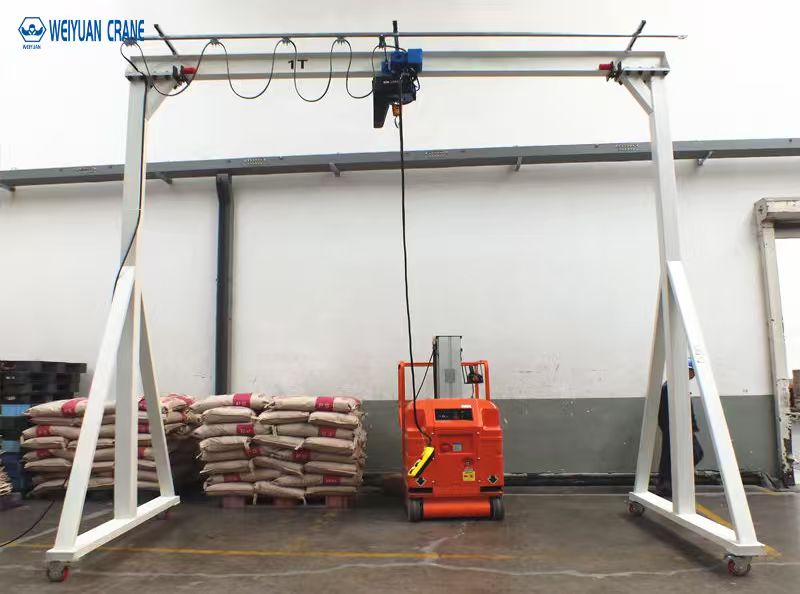

Hot Selling Mini Portable Gantry Crane
Product Overview
The Weiyuan Mini Portable Gantry Crane is a robust, versatile, and cost-effective lifting solution designed for dynamic work environments. Engineered for easy mobility and setup, this crane is perfect for workshops, garages, light manufacturing, and on-site jobs where a permanent lifting structure isn’t practical. Constructed from high-strength steel, it offers exceptional durability and stability for lifting loads up to 5 tons. With adjustable height and easy-to-move casters, this portable gantry crane brings powerful lifting capabilities exactly where you need them, boosting efficiency and workplace safety.
Product Advantages
Robust Steel Construction
Built with high-quality, heavy-gauge steel, this gantry crane provides superior strength and durability. The solid frame is designed to handle its rated capacity with a high safety factor, ensuring stable and secure lifting operations for years to come.
Fully Portable and Mobile
Equipped with four heavy-duty, industrial-grade casters, the crane can be effortlessly pushed by a single person to any location in your facility. The 360-degree swivel casters, complete with reliable brakes, allow for smooth maneuverability and firm positioning during lifts.
Adjustable Height for Versatility
The crane features a user-friendly adjustable height mechanism. This allows you to easily raise or lower the I-beam to accommodate different load sizes, navigate through doorways, and adapt to various overhead clearance constraints, making it highly versatile for multiple tasks.
Simple Assembly and Disassembly
Designed for convenience, the crane’s simple bolt-together structure allows for quick assembly and disassembly. This makes it easy to transport to different job sites or store away when not in use, offering maximum flexibility for your operations.
Cost-Effective Lifting Solution
This portable gantry crane provides the lifting power you need without the significant expense and permanent installation of an overhead bridge crane. It is an economical choice for businesses looking to enhance their lifting capabilities with a flexible, multi-purpose tool.
Application Scenarios
Automotive and Repair Shops
Ideal for lifting engines, transmissions, and vehicle bodies. Its mobility allows technicians to easily position the crane over a vehicle for maintenance and repair tasks, improving safety and efficiency.
Manufacturing and Assembly
Perfect for lifting heavy components, dies, and molds in manufacturing settings. It can be moved between workstations to support assembly lines and machine loading, reducing manual strain.
Warehousing and Loading Docks
An excellent tool for loading and unloading trucks, moving heavy pallets, and positioning goods in areas where forklifts have limited access. It provides a reliable lifting point for various logistical tasks.
HVAC and Utilities Maintenance
Provides a portable solution for lifting pumps, motors, and HVAC units into place. It can be easily transported to a job site and assembled for installation or maintenance work.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5t – 5t (Customizable) |
| Lifting Height | Up to 6m (Adjustable, Customizable) |
| Span Coverage | Up to 7.5m (Customizable) |
| Material | High-Strength Q235B / Q345B Steel |
| Work Level | A3 |
| Hoisting Mechanism | Electric Chain Hoist / Electric Wire Rope Hoist / Manual Hoist |
| Crane Travel | Manual Push (Electric Travel option available) |
| Control Method | Pendant Control / Wireless Remote Control |
| Power Supply | 220V/380V/440V, 50/60Hz, 3-Phase or Customized for Hoist |
| Casters | Heavy-Duty Polyurethane Swivel Casters with Brakes |
| Operating Temp. | -20°C to +40°C |
Features at a Glance
✓ Wide Capacity Range: Available from 0.5 to 5 tons to match your lifting needs.
✓ Durable Steel Frame: Ensures robust performance and a long service life.
✓ Adjustable Height: Easily adapts to different lifting heights and environments.
✓ Highly Mobile: Heavy-duty casters provide smooth movement around the workspace.
✓ Simple to Assemble: Bolt-together design for quick setup and takedown.
✓ Economical and Versatile: A flexible lifting solution for a variety of applications.
✓ Customizable Dimensions: Span and height can be tailored to your specific requirements.
FAQ
Q: Can this portable gantry crane be used outdoors?
A: Yes, it can. The crane is finished with a durable, anti-corrosive paint system. For long-term outdoor use, we can provide additional weatherproofing options, such as rain covers for the electric hoist, to enhance its durability.
Q: What is the difference between this steel gantry crane and an aluminum one?
A: A steel gantry crane, like this model, offers higher load capacities and greater rigidity at a more economical price. An aluminum gantry crane is significantly lighter and more portable, making it ideal for lower-capacity jobs that require frequent transport and assembly by one person.
Q: Do I need a special foundation to use this crane?
A: No, a special foundation is not required. This portable gantry crane is designed to operate on any flat, hard, and level industrial floor that can support the combined weight of the crane and its maximum load.
Q: Can the crane be moved while it is under load?
A: For safety reasons, it is strongly recommended not to move the gantry crane while it is lifting a load. The load should be lifted, moved to its destination, and then lowered, with the crane being repositioned only when it is unloaded.
Q: How does Weiyuan ensure the quality of its gantry cranes?
A: With nearly 40 years of experience, Weiyuan manufactures all products under a strict ISO-compliant quality control system. Each gantry crane is fabricated from certified steel and undergoes thorough load testing and inspection before shipment to guarantee its safety, reliability, and performance.
