MG Type Double Girder Gantry Crane | Heavy-Duty, Outdoor, CE-Compliant
Product Overview

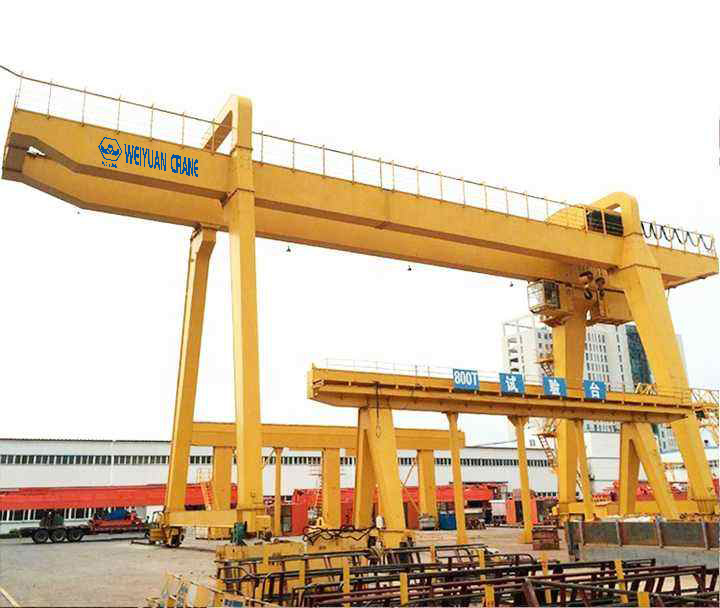

The MG Type 40-Ton Double Girder Gantry Crane is a powerful and robust material handling system engineered for heavy-duty outdoor applications. This rail-mounted gantry crane features a classic double-girder A-frame design, providing exceptional strength and stability for lifting and moving substantial loads. It operates on ground-level rails, delivering extensive lifting coverage across stockyards, construction sites, and industrial facilities without the need for a supporting building structure. With its high-performance hoist, durable construction, and weather-resistant features, the MG Type crane is a reliable workhorse for your most demanding lifting challenges.
Product Advantages
- Robust Heavy-Duty Performance: Built to an A5-A6 work duty classification, the MG Type crane is designed for frequent, heavy lifting. Its strong double-girder frame ensures superior load stability and long-term structural integrity.
- Ideal for Outdoor Environments: With an IP55 protection rating, a multi-layer anti-corrosion paint system, and weather-resistant components, this crane is built to withstand the rigors of outdoor use, including rain, dust, and wind.
- Powerful and Efficient: A high-capacity hoist and powerful travel motors deliver efficient lifting cycles. The system can be configured with two-speed controls or advanced Variable Frequency Drives (VFDs) for smooth, precise handling of 40-ton loads.
- Cost-Effective Infrastructure: As a ground-based system, it eliminates the need for an expensive indoor runway and building support columns, offering a lower total investment for heavy lifting capability over a large area.
- Enhanced Safety as Standard: Equipped with a full range of safety features, including overload limiters, rail clamps, an anemometer for wind-speed monitoring, and anti-collision devices, ensuring maximum operational safety.
Application Scenarios
- Precast Concrete and Construction Yards: Perfectly suited for lifting and moving large precast beams, panels, and other heavy construction materials with power and precision.
- Outdoor Steel Stockyards: An essential tool for handling heavy steel coils, plates, structural sections, and pipes in open-air storage and processing facilities.

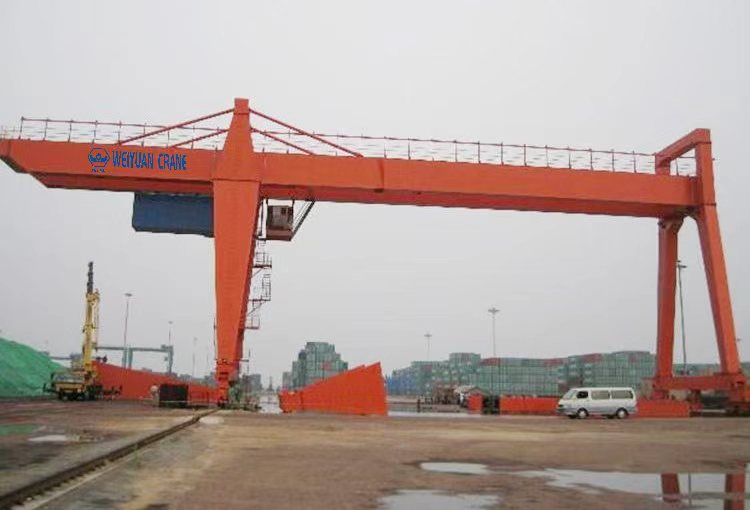

- Port and Rail Terminals: Efficiently handles heavy cargo, machinery, and containers for loading and unloading operations in logistics and transshipment hubs.
- Heavy Manufacturing: Provides powerful lifting support for assembling large equipment and moving heavy fabrications in outdoor assembly areas.
- Bridge and Infrastructure Projects: Used in laydown yards for handling large girders, segments, and other major components during bridge construction.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 40 Ton (Other capacities available) |
| Span | 12 m to 35.5 m (Customized to your facility layout) |
| Max. Lifting Height | 6 m to 30 m (Customized as per demand) |
| Work Duty | A5–A6 (Medium to Heavy Duty) |
| Lifting Speed | 0.8–6 m/min (Two-speed or VFD, speed varies with capacity) |
| Trolley Traveling Speed | 2–25 m/min (Two-speed or VFD) |
| Crane Traveling Speed | 20–80 m/min (Two-speed or VFD) |
| Hoist Type | Open Winch Trolley or Heavy-Duty Wire Rope Hoist Trolley |
| Hoist Motor | Heavy-duty dual-speed or VFD-controlled motor |
| Travel Motors | Dual-speed or VFD-controlled gear motors |
| Control Methods | Cabin Control (Standard), Wireless Remote Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent premium brand |
| Safety Devices | Overload limiter, emergency stop, anemometer, rail clamps, anti-collision system |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP55 |
| Paint/Finish | Sandblasted Sa2.5, epoxy primer, and polyurethane topcoat for outdoor use |
| Steel Grade | Q355B High-Strength Carbon Structural Steel |
| Wheel/End Carriage | Forged steel wheels; Heavy-duty box-girder end carriages |
| Rail Size (typical) | P43, QU70, QU80 (Recommended for the application) |
| Braking | Electromagnetic and/or hydraulic brakes for all movements |
| Limit Switches | Included for all hoisting and travel motions |
| Documentation | Certificate of Conformity, Test Reports, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 15–40 days (negotiable for specific configurations) |
Features at a Glance
- Classic MG type double-girder gantry with 40-ton capacity.
- Engineered for heavy-duty (A5–A6) outdoor performance.
- IP55-rated with weather-resistant finishes for maximum durability.
- Customizable span and height to cover large operational yards.
- CE-compliant design with a full suite of safety features for reliable operation.
