Mobile Portable Gantry Crane 5 Ton | Quick Assembly, Compact, CE-Compliant
Product Overview

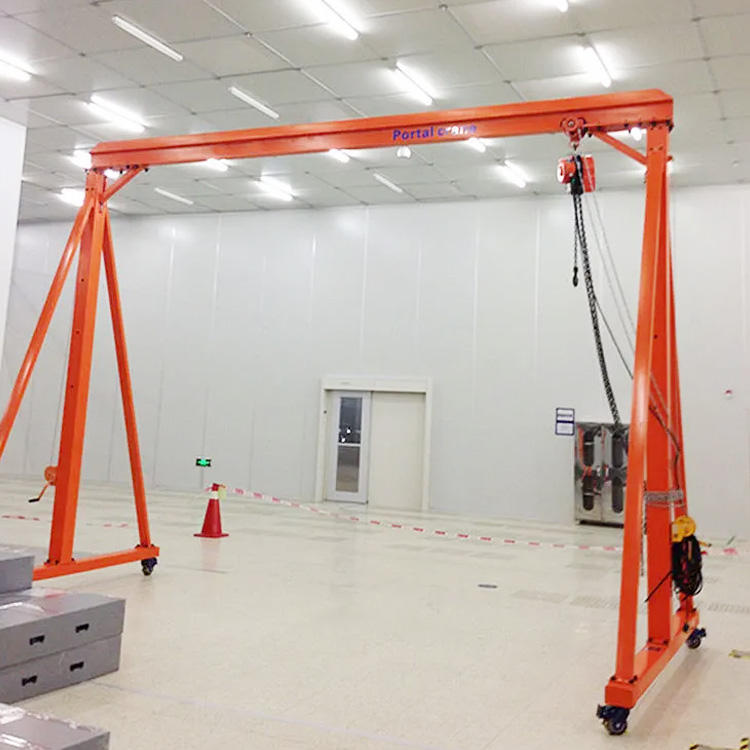

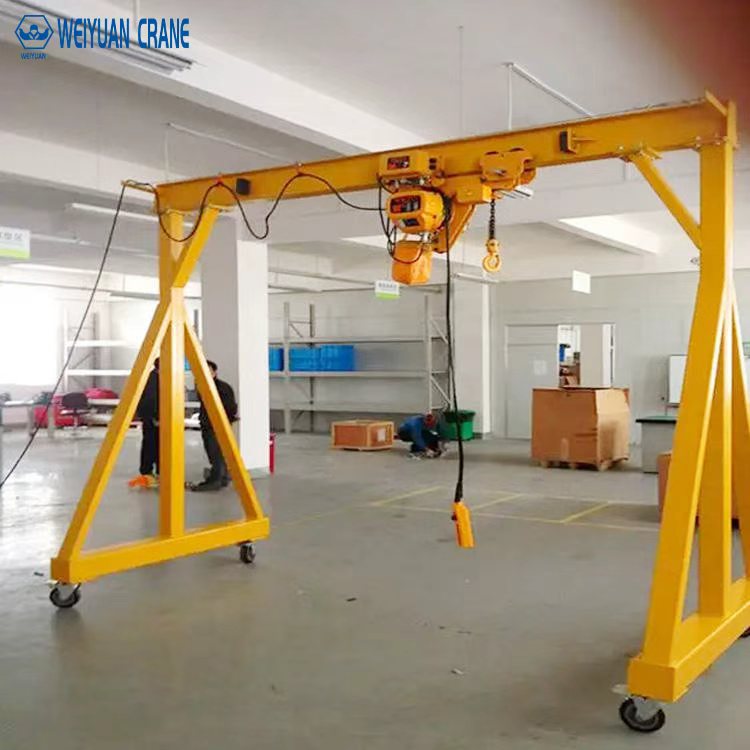

The 5-Ton Mobile Portable Gantry Crane is a compact, knock-down style lifting solution engineered for exceptional versatility and ease of use. Its intelligent, bolted-frame design allows for rapid assembly and disassembly, making it easy to transport and set up on any job site. This crane moves freely on heavy-duty rubber wheels with reliable brakes, providing a powerful 5-ton lifting capacity wherever you need it. As a cost-effective alternative to fixed installations, it is the perfect choice for rental fleets, maintenance crews, and workshops requiring a flexible, non-permanent lifting system.
Product Advantages
- Rapid Assembly (Knock-Down Design): The simple, bolted structure can be quickly assembled or disassembled by a small team, making it extremely easy to transport in a standard truck and set up on-site.
- Ultimate Portability: Mounted on durable, smooth-rolling rubber casters with brakes, this gantry can be effortlessly pushed into position, even in tight spaces, providing lifting capability on demand.
- Cost-Effective and Independent: Get 5 tons of lifting power without the expense and permanence of a fixed crane. This system requires no foundation or structural support, saving you significant installation costs.
- Adaptable to Your Needs: The crane is available with manual push travel or can be equipped with optional electric travel motors for powered movement. Adjustable height models are also available to fit under obstacles.
- Robust and Safe: Constructed from high-strength steel and paired with a reliable electric hoist, this crane provides a stable and secure lifting platform for indoor and outdoor use.
Application Scenarios
- Rental Fleets and Contractors: Its easy transport and quick setup make it a highly profitable item for rental companies and contractors moving between job sites.
- HVAC and Rooftop Maintenance: Can be disassembled, transported to a rooftop in a service elevator, and reassembled for lifting HVAC units, chillers, and other equipment.
- On-Site Assembly and Installation: Provides temporary lifting power for installing machinery, aligning components, or performing construction tasks in the field.
- Workshop and Garage Use: Ideal for lifting engines, heavy parts, and materials in areas where a permanent crane is not feasible or desired.
- Data Centers and Clean Rooms: Perfect for carefully lifting and placing delicate server racks and sensitive equipment with precision.
Product Specifications
| Parameter | Specification |
|---|---|
| Rated Capacity | 5 Ton (Other capacities available) |
| Span | 2 m to 9 m (Customized to your workspace) |
| Max. Lifting Height | 2 m to 7.5 m (Adjustable height models available) |
| Work Duty | A3–A4 (Light to Medium Duty) |
| Lifting Speed | 4–8 m/min (On electric hoist) |
| Trolley Traveling Speed | Manual push trolley or 2–20 m/min (Electric) |
| Crane Traveling Speed | Manual push or 5–15 m/min (Electric motorized option) |
| Hoist Type | Electric Chain Hoist or compact Electric Wire Rope Hoist |
| Hoist Motor | Standard hoist motor with electromagnetic brake |
| Travel Motors | Optional gear motors for powered gantry travel |
| Control Methods | Pendant Control for hoist; Manual push for travel |
| Power Supply | Single Phase 220V or 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Control Voltage | 24V / 36V / 48V (Safe control voltage) |
| Electrical Components | Schneider, Siemens, or equivalent reliable brand |
| Safety Devices | Overload limiter (optional), emergency stop on pendant |
| Working Temperature | -20°C to +40°C |
| Protection Class | IP54 |
| Paint/Finish | Industrial safety yellow primer and durable topcoat |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Wheel/End Carriage | Heavy-duty rubber wheels with swivel locks and brakes |
| Rail Size (typical) | N/A (Operates on flat concrete floor) |
| Braking | Hoist motor brake; Manual locking brakes on all wheels |
| Limit Switches | Hoisting up/down limit switches on hoist |
| Documentation | Certificate of Conformity, Assembly/Operating Manuals, CE/ISO Certificates |
| Warranty | 1 Year |
| Lead Time | 15–25 days (negotiable for specific configurations) |
Features at a Glance
- 5-ton capacity in a compact, quick-assembly knock-down frame.
- Highly portable for easy transport and use on multiple job sites.
- Moves easily on heavy-duty, locking rubber wheels.
- Available in manual push or optional motorized configurations.
- CE-compliant design for safe, reliable lifting indoors and outdoors.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
