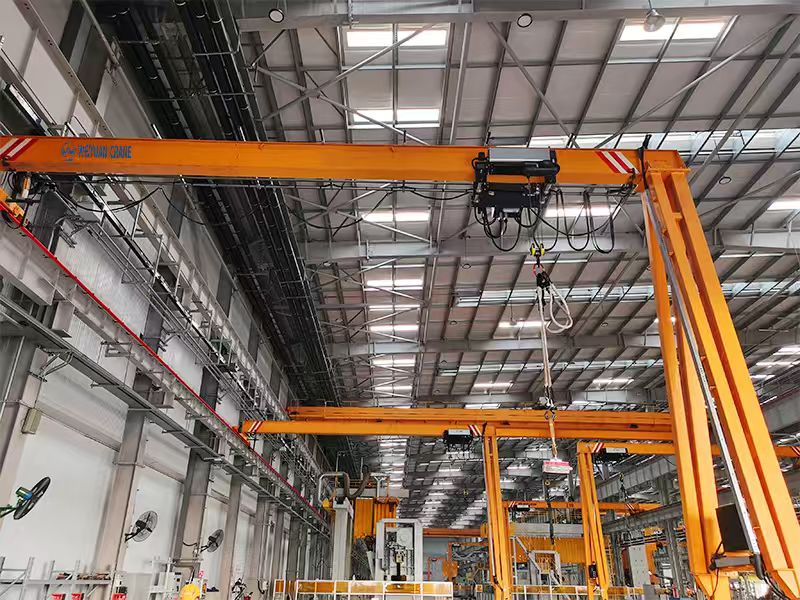

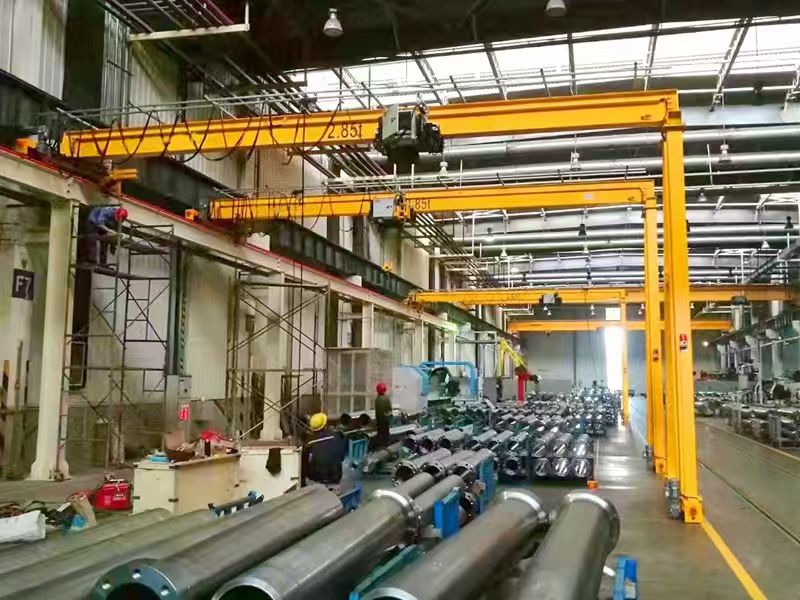

New Chinese Semi-Gantry Crane (Hoist Mode)
Product Overview
The New Chinese Semi-Gantry Crane (Hoist Mode) is an innovative material handling solution engineered by Weiyuan, featuring advanced lightweight, modular, and customized design principles specifically tailored for space-efficient outdoor operations. This semi-gantry crane system incorporates cutting-edge NR mode low-headroom electric hoist technology with exceptional performance capabilities and advanced engineering. The crane utilizes a sophisticated three-in-one drive device for the trolley traveling mechanism, paired with an advanced variable frequency speed regulation control system for precise operational control. Designed to maximize workspace utilization while delivering superior performance, safety, reliability, and energy efficiency, this crane represents the perfect solution for facilities requiring partial outdoor coverage with building-integrated support.
Product Advantages
Space-Efficient Semi-Gantry Design
Combines the benefits of gantry and overhead crane systems by utilizing one building-mounted runway and one ground-supported leg, maximizing workspace utilization while reducing infrastructure requirements and installation costs.
Flexible Ground Track Options
Available in both track type and trackless type configurations, providing adaptability to diverse facility layouts and operational requirements while offering enhanced mobility and positioning flexibility for various applications.
Versatile Jib Configurations
Offers non-jib and single-jib options to match specific operational needs, providing customized reach capabilities and workspace coverage while maintaining optimal lifting performance and structural integrity.
Advanced Low-Headroom Technology
Features NR mode low-headroom electric hoist with superior performance, enabling operation in facilities with limited ceiling height while maintaining full lifting capacity and operational efficiency.
Comprehensive Operation Modes
Provides multiple operation options including ground operation for direct control, air operation for enhanced visibility, and remote control operation for safety in hazardous environments and automated systems.
Application Scenarios
Manufacturing and Production Facilities
Ideal for manufacturing plants requiring material handling along building perimeters where one side can utilize existing building structure while the other side operates in outdoor or semi-outdoor environments.
Warehouses with Limited Building Support
Perfect for warehouses and distribution centers where building structure can support one runway while the opposite side requires independent ground support for material handling operations.
Construction and Building Sites
Excellent for construction projects where semi-permanent lifting solutions are needed, utilizing existing building structures on one side while providing independent support on the other side.
Maintenance and Service Areas
Designed for maintenance facilities and service centers where partial building integration provides cost-effective lifting solutions while maintaining operational flexibility and workspace accessibility.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 1t to 20t load range |
| Span Coverage | 3m to 30m maximum span |
| Lifting Height | 3m to 30m vertical range |
| Work Level Classification | A5 duty cycle rating |
| Hoisting Mechanism | NR mode low-headroom electric hoist |
| Drive System | Three-in-one integrated drive device |
| Control System | Variable frequency speed regulation |
| Ground Track Options | Track type and trackless type available |
Features at a Glance
✓ Hybrid Design: Semi-gantry configuration utilizing building support on one side and ground support on the other
✓ Flexible Ground Options: Track type and trackless type configurations for diverse operational requirements
✓ Versatile Jib Configurations: Non-jib and single-jib options for customized reach capabilities
✓ Low-Headroom Technology: NR mode electric hoist enabling operation in space-constrained environments
✓ Multiple Operation Modes: Ground operation, air operation, and remote control for enhanced flexibility
✓ Variable Frequency Control: Precise speed regulation with stable operation for accurate load positioning
✓ Silent Drive Technology: Low noise environmental protection with advanced transmission systems
FAQ
Q: What are the main advantages of semi-gantry design over full gantry cranes?
A: Semi-gantry design reduces infrastructure costs by utilizing existing building structure on one side, requires less ground space, and provides easier integration with existing facilities while maintaining full gantry crane capabilities.
Q: How do I choose between track type and trackless type configurations?
A: Track type offers precise positioning and is ideal for repetitive operations along fixed paths, while trackless type provides maximum flexibility for variable positioning and is perfect for applications requiring frequent crane relocation.
Q: What is the difference between non-jib and single-jib configurations?
A: Non-jib provides maximum lifting capacity directly under the main beam, while single-jib extends the working radius beyond the main beam structure, offering enhanced reach capabilities for specific operational requirements.
Q: How does the NR mode low-headroom electric hoist benefit my operation?
A: NR mode low-headroom electric hoist enables operation in facilities with limited ceiling height while maintaining full lifting capacity, reducing building requirements and enabling installation in space-constrained environments.
Q: Can the crane operate in both indoor and outdoor environments?
A: Yes, the semi-gantry design is specifically engineered for applications spanning indoor and outdoor areas, with weather-resistant components and protective systems ensuring reliable operation in diverse environmental conditions.
