Gantry crane

Product advantages

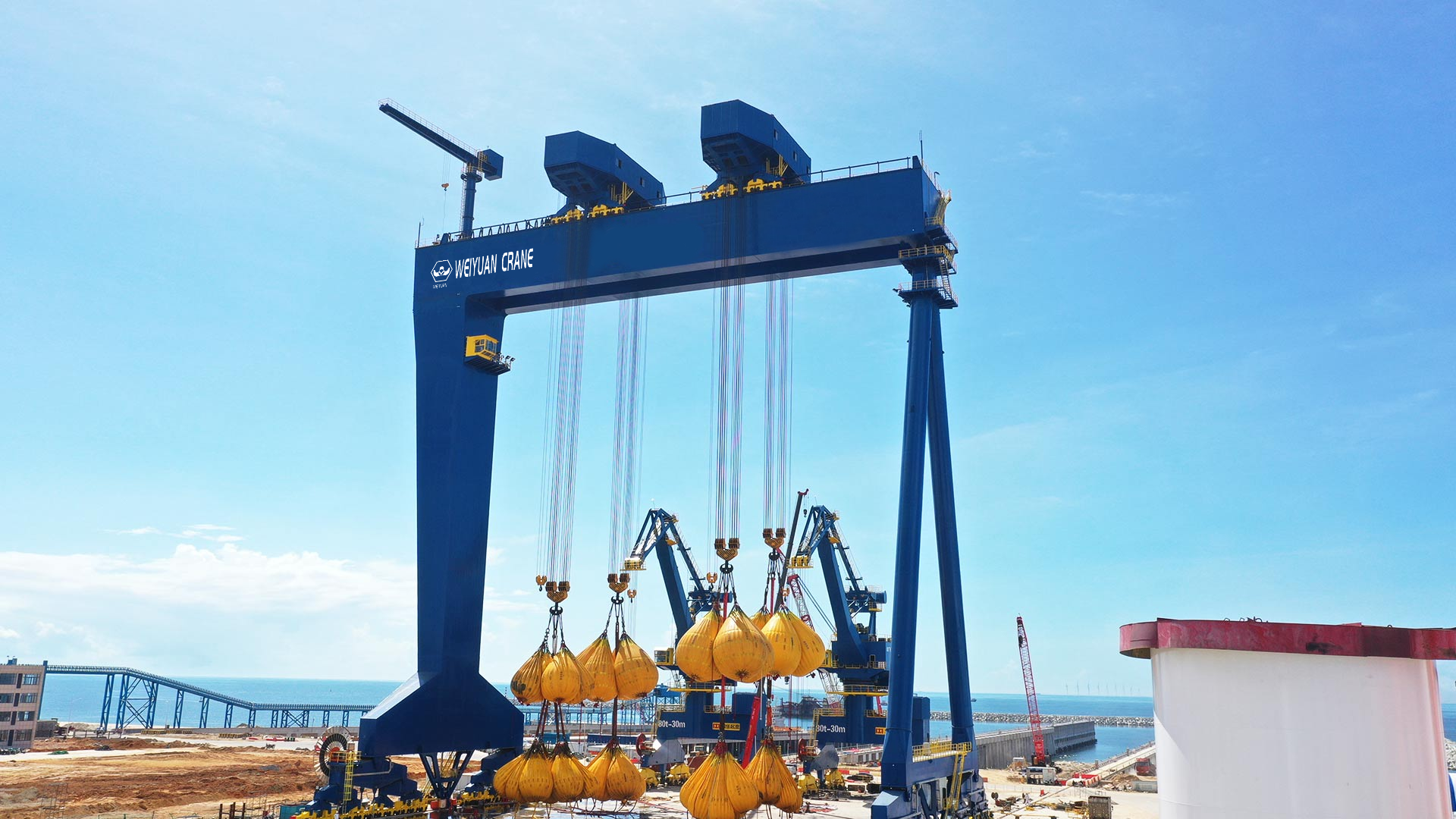

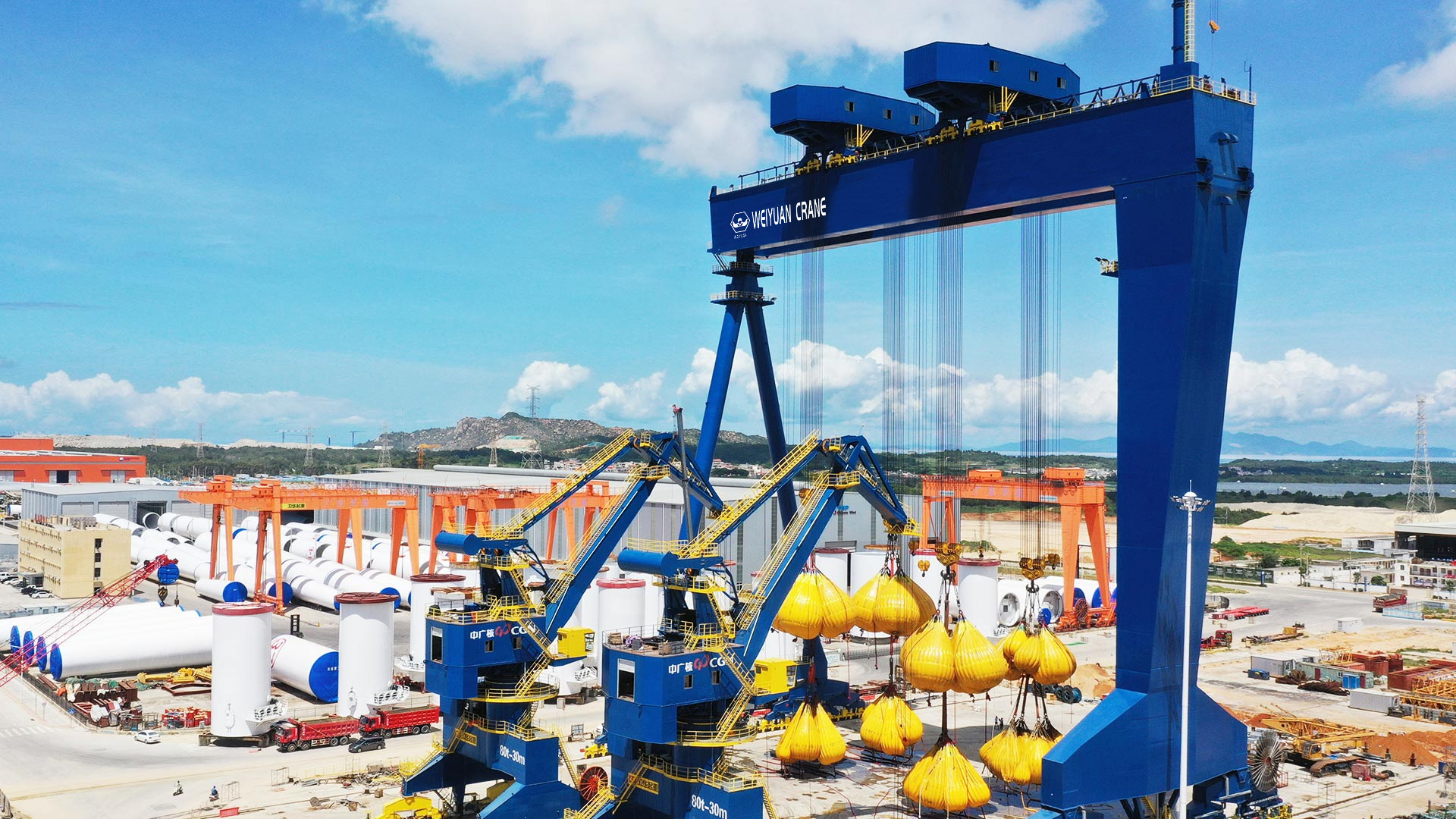

Relying on industry-leading R&D strength and innovation capabilities, WeiYuan has successfully developed a 2000-ton rail-mounted gantry crane with a lifting height of 90 meters and a span of 62 meters, featuring a dual-trolley design. The production and manufacturing process strictly adheres to AWS standards, ensuring safe load lowering to the ground under extreme conditions, achieving zero-speed braking for all mechanisms, eliminating impact loads, ensuring the stability of operating and lifting mechanisms, and meeting the high precision requirements for equipment installation.

Application scenarios

1. With a lifting capacity of 2000t, a total lifting height of 90m, and a span of 62m, it solves the problem of lifting in ultra large operations.

2. Adopting a dual trolley design, each trolley is equipped with two sets of lifting mechanisms to ensure the safe lowering of heavy objects to the ground in extreme situations.
The production and manufacturing process adopts the “Nuclear Industry Quality Management System” full process monitoring to ensure that product quality is fully controlled.

3. It can achieve zero speed braking for each mechanism, reducing the load caused by impact to zero, ensuring the smoothness of the operating mechanism and lifting mechanism, and meeting the requirements of equipment installation accuracy.

4. Adopting the four lifting point synchronous lifting technology, the position of each lifting point is measured to ensure synchronous operation of each lifting point.

5. Configure a crane management safety monitoring 5G data information management system, which can achieve functions such as overall data statistics, real-time monitoring of product working conditions, historical data queries, rapid repair of product failures, and predictive maintenance of equipment

Product specifications and dimensions

Rated load/ton	5	10	16	20
Span/m	10~40
Lifting height/m	Max 30
Working class	A3/1bm
Lifting speed/m/min	8	7	3.5	3.5
Trolley running speed/m/min	20
Crane running speed/m/min	20
Dead weight/t	10.5~37.5	16.8~52	18.9~65	24.5~77

FAQ

1. What’s the information should I provide when inquiry?

More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.

2. How many operating methods for my selection?

Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.

3. Can this type work in hazardous environment?

Sure! We can customize for you, acid proof or explosion proof, no problem for that.

4. What about warranty time ?

12 months.

5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.

6. May I visit your factory?

Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
