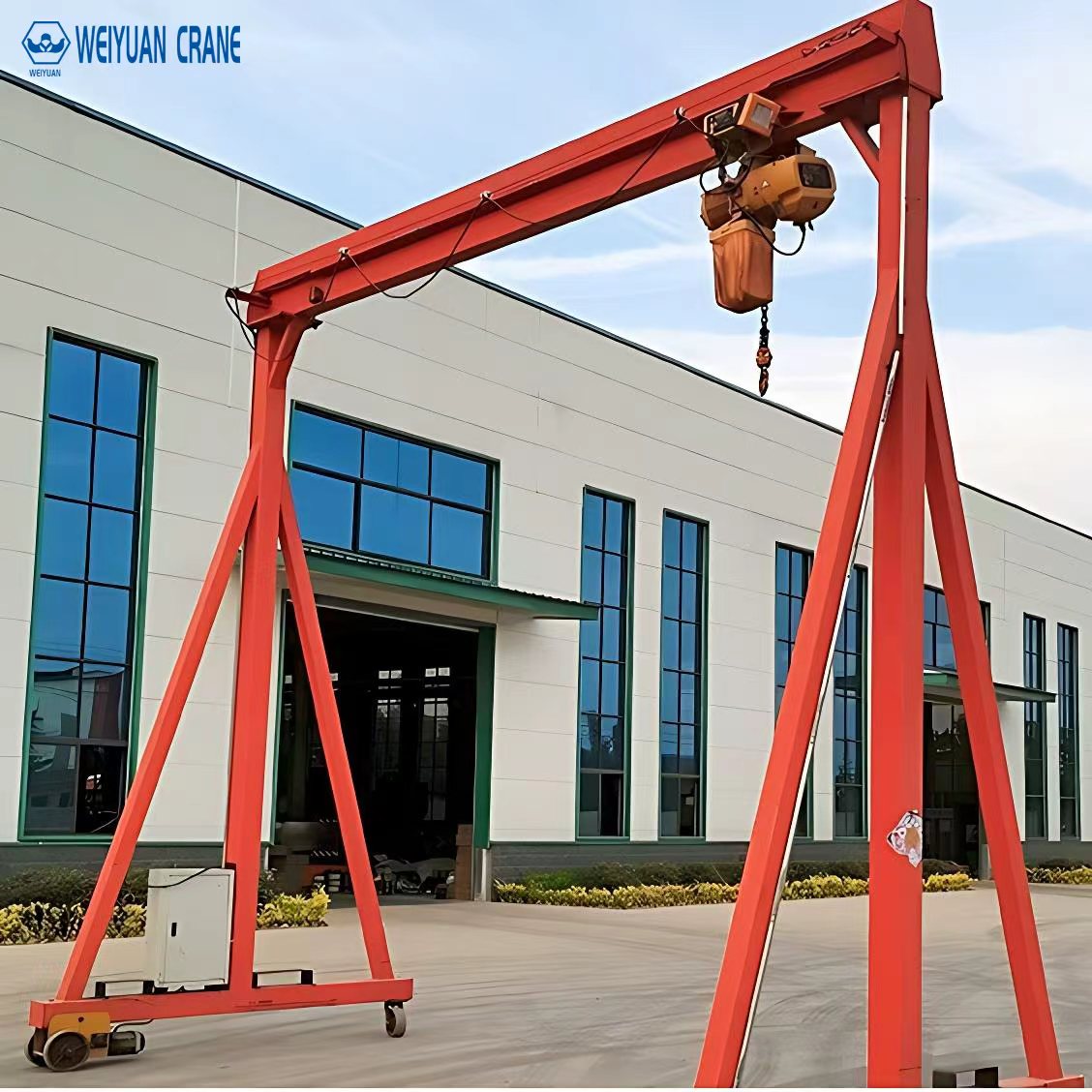

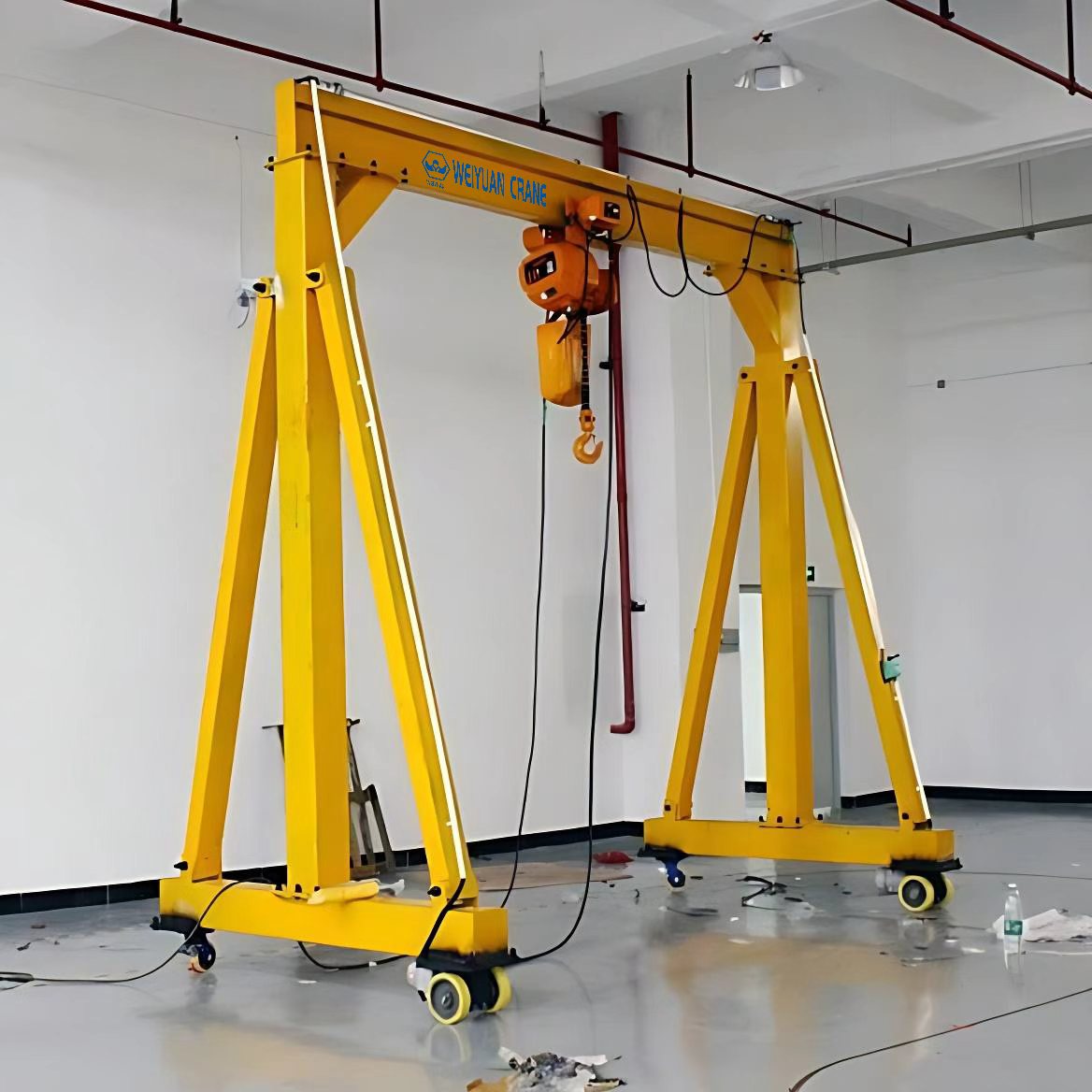

Universal 5 Ton Mobile Gantry Crane with Electric Hoist
Product Overview
The Weiyuan Universal Mobile Gantry Crane is a small, portable lifting solution engineered to meet the demands of daily production, including equipment handling, warehouse logistics, and the maintenance of heavy equipment. This versatile crane is ideal for use in mold manufacturing, auto repair shops, mines, construction sites, and any other environment requiring reliable lifting. Its adaptable design makes it especially suitable for the installation, handling, and commissioning of workshop equipment, loading and unloading goods, and lifting large engine components.
Product Advantages
High-Strength and Durable Construction
The crane is forged from thickened I-beam steel, ensuring a robust structure with a strong bearing capacity. This provides a stable and secure lifting platform for all your operational needs.
Reinforced and Stable Base
Featuring a strong triangular stable structure and reinforced with high-strength bolts, the base guarantees maximum stability and safety during lifting operations, even under heavy loads.
Advanced Anti-Corrosion Finish
Treated with a wear-resistant, anti-corrosion paint using an outdoor baking process, the crane is protected against rust and paint peeling, ensuring long-term durability in various working conditions.
Superior Mobility and Control
Equipped with universal brake wheels that offer moderate resistance and high load capacity, the crane can be easily moved and positioned for both indoor and outdoor applications, providing excellent operational flexibility.
Customizable and Versatile
This crane can be customized to meet your specific requirements, including height, span, and lifting capacity. It is compatible with various hoists, such as micro wire rope electric hoists, manual chain hoists, and electric chain hoists, to reduce manual labor and improve efficiency.
Application Scenarios
Workshops and Manufacturing
Perfectly suited for workshop equipment installation, material handling, and commissioning. It simplifies processes like mold installation for injection molding machines and moving heavy components.
Warehousing and Logistics
An excellent solution for handling incoming and outgoing goods in warehouses, allowing for efficient loading and unloading from trucks and organizing heavy materials.
Automotive and Repair Shops
Ideal for lifting large engine parts and other heavy components in auto repair workshops, streamlining maintenance and repair tasks safely and effectively.
Construction and Mining
Provides reliable lifting capabilities on construction sites and in mines for material transportation and handling of heavy equipment, enhancing productivity in demanding environments.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0-20t (customizable) |
| Span Coverage | 1-12m (customizable) |
| Lifting Height | 1-15m (customizable) |
| Work Level | A3-A5 |
| Hoisting Mechanism | Electric Hoist / Manual Hoist (customizable) |
| Drive System | Electric Motor |
| Control Method | Pendant Control / Remote Control |
| Power Supply | 380V, 50Hz, 3-Phase or Customized |
| Main Electric Parts | Schneider/ABB |
| Motor Brand | ABB/SIEMENS |
| Operating Temp. | -25°C to +40°C |
Features at a Glance
✓ Customizable Capacity: Lifting capacity from 0 to 20 tons to match your needs.
✓ Adjustable Dimensions: Span and lifting height are fully customizable for your workspace.
✓ Durable Steel Construction: Made with thickened I-beam steel for superior strength.
✓ Enhanced Mobility: Universal brake wheels allow for easy movement and secure positioning.
✓ Multiple Hoist Options: Compatible with various electric and manual hoists.
✓ All-Weather Protection: Features anti-corrosion paint for indoor and outdoor use.
✓ Flexible Control: Options for both pendant and remote control for operational convenience.
FAQ
Q: Can the height and span of the gantry crane be adjusted?
A: Yes, the height and span are fully customizable. We can design the crane according to your specific technical requirements to ensure it fits perfectly into your workspace and meets your operational needs.
Q: What types of hoists can be used with this gantry crane?
A: The crane is designed for versatility and can be paired with multiple types of hoists, including micro wire rope electric hoists, manual chain hoists, and standard electric chain or wire rope hoists to best suit your application.
Q: Is this crane suitable for outdoor use?
A: Absolutely. The crane is coated with a durable, wear-resistant, and anti-corrosion paint through a baking process, which protects it from the elements and prevents rust, making it ideal for both indoor and outdoor environments.
Q: What control options are available for this crane?
A: We offer flexible control methods to ensure ease of use and safety. You can choose between a standard pendant control for direct operation or a wireless remote control for greater mobility and safety from a distance.
Q: How do you ensure the quality of your cranes?
A: As a manufacturer with about 40 years of experience, Weiyuan has a professional quality control team and a comprehensive ISO-compliant quality control system. We conduct constant checks during manufacturing and rigorously test all equipment before shipment, providing a detailed test report with each order.
