Gantry crane
Universal Hoist Gantry Crane
Product Overview
The Universal Hoist Gantry Crane from Weiyuan is an exceptionally versatile and reliable lifting solution, engineered for performance in a variety of settings. This crane utilizes a general-purpose wire rope electric hoist as its lifting mechanism, ensuring robust, safe, and durable operation. Designed with a modular and parametric approach, it is simple to install and widely applicable. Suitable for both indoor and outdoor use, this gantry crane is the ideal choice for workshops, storage yards, and freight stations where dependable material handling is essential.
Product Advantages
Robust and Reliable Design
Built for durability and safety, this crane features a high-quality, general-purpose wire rope electric hoist. The entire structure is engineered for stable performance, providing a secure and dependable lifting solution you can count on.
Versatile Structural Options
To meet the specific demands of your worksite, the crane is available in multiple structural forms. Choose from a solid box-type girder for maximum strength, a truss-type (lattice) structure for long spans and windy conditions, or a combination of both. It can also be configured with or without cantilevers (single or double) to extend the hook’s reach beyond the rails.
Adaptable Operation Modes
Weiyuan offers flexible control options to match your operational needs. You can choose from ground-based pendant control, a fully enclosed air-conditioned cabin for operator comfort, or convenient wireless remote control for improved visibility and safety.
Wide Range of Applications
Its adaptability makes this crane perfect for countless material handling tasks. It is widely used in open-air freight yards, manufacturing plants, precast concrete facilities, railway terminals, and port operations.
Simplified Installation and Maintenance
The modular design makes assembly and installation straightforward. Standardized components ensure that maintenance is simple and efficient, helping to minimize downtime and keep your operations running smoothly.
Intelligent Functionality
Enhance your crane’s performance with Weiyuan’s intelligent features. Options include inching movement for precise load placement, electric anti-sway technology for stable handling, and wireless connectivity to the Weiyuan Crane Industrial Internet Platform for full life-cycle management.
Application Scenarios

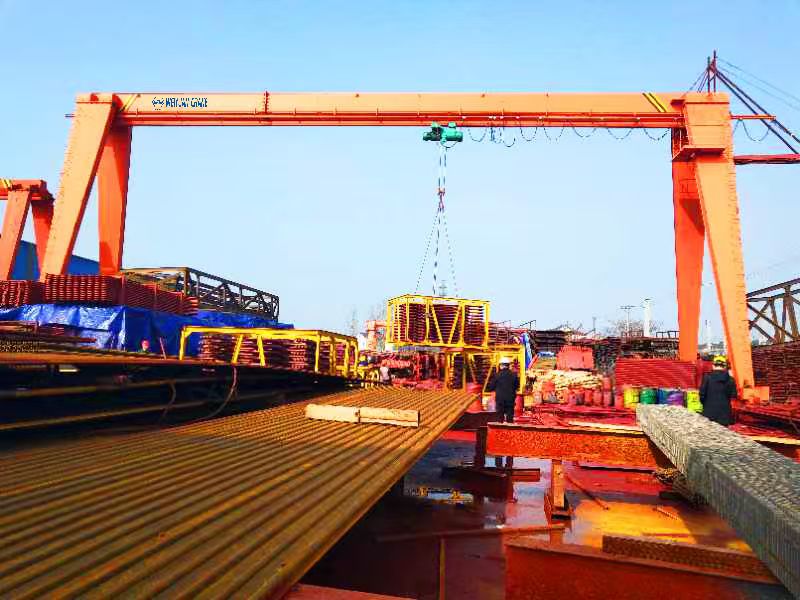

Outdoor Storage and Freight Yards
Perfect for lifting and transporting heavy materials, bulk goods, and containers in outdoor stockyards where overhead runway structures are not practical.

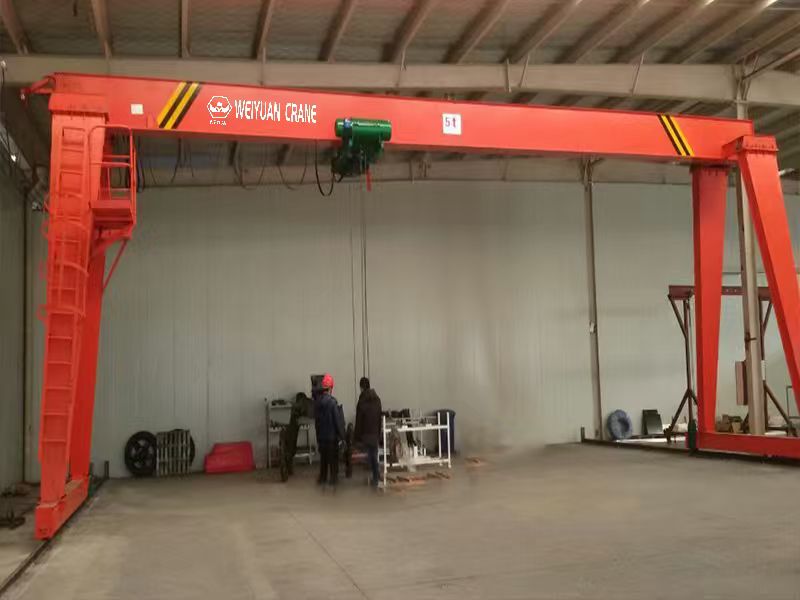

General Manufacturing and Workshops
An excellent solution for moving raw materials, large components, and finished products within large manufacturing halls and assembly workshops.
Stone and Precast Concrete Industries
The crane’s robust construction is ideal for handling heavy stone blocks, granite slabs, and precast concrete sections in production and storage yards.
Railway and Logistics Hubs
Efficiently facilitates the loading and unloading of cargo from trains and trucks, making it a key asset in intermodal freight terminals and logistics centers.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Product Name | Universal Hoist Gantry Crane |
| Lifting Capacity | 1t – 32t |
| Span | 3m – 40m |
| Lifting Height | 6m – 45m |
| Work Level Classification | A4 |
| Lifting Mechanism | Universal steel wire rope electric hoist |
| Operation Modes | Ground control, cabin control, remote control |
Features at a Glance
✓ Stable Performance: Ensures safe and consistent lifting operations.
✓ Durable Construction: Built to last in demanding industrial environments.
✓ Customizable Structure: Box, truss, and cantilever options available.
✓ Flexible Control: Choose between ground, cabin, or remote operation.
✓ Broad Applicability: Ideal for yards, workshops, and logistics.
✓ Modular Design: Simplifies installation, transport, and maintenance.
✓ Smart Upgrades: Optional features like anti-sway and remote diagnostics.
FAQ
Q: What is the main advantage of a single girder gantry crane like this one?
A: Single girder gantry cranes are generally more compact, lightweight, and cost-effective than their double-girder counterparts. They are an excellent choice for light to medium-duty applications and facilities where headroom or floor space is a consideration.
Q: Can this gantry crane be customized for a very wide span?
A: Yes. For very wide spans (e.g., over 30 meters), a truss-type structure is often recommended. Its lattice design provides the necessary strength while being lighter and more resistant to wind loads than a solid box girder, making it ideal for large outdoor areas.
Q: What does the A4 work level signify?
A: The A4 work level classification (similar to M4 in ISO standards) indicates the crane is designed for light to medium service. This is suitable for general manufacturing, assembly, warehousing, and maintenance tasks that involve moderate loads and operating cycles.
Q: What are the benefits of adding a cantilever?
A: A cantilever is an extension of the main beam that goes past the support legs. This feature expands the crane’s effective work area, allowing the hoist to lift and place loads outside the span between the rails, which is very useful for loading and unloading trucks at the edge of a yard.
Q: Can I add intelligent features after the crane has been installed?
A: In many cases, yes. The modular design of Weiyuan cranes allows for retrofitting of certain intelligent functions. Features like anti-sway control or connection to our remote monitoring platform can often be added later to enhance safety and productivity.
