Universal Hoist Semi-Gantry Crane
Product Overview

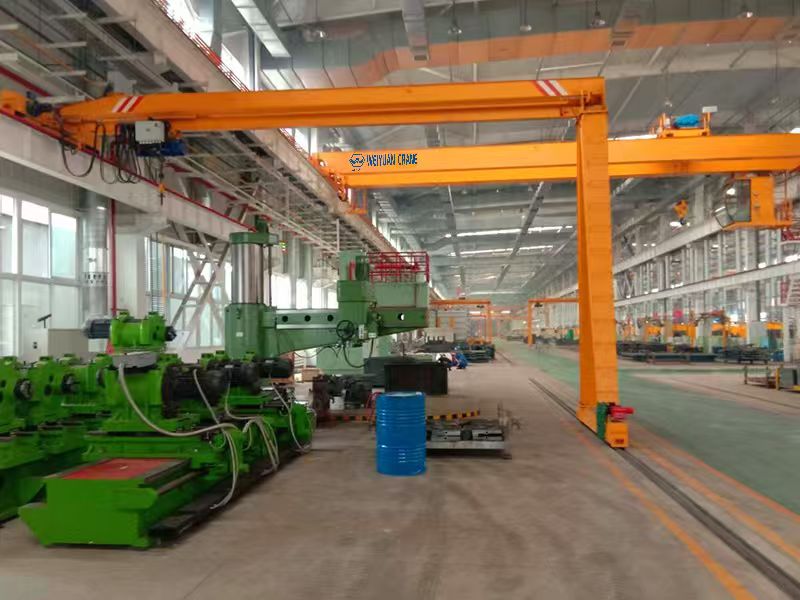

The Universal Hoist Semi-Gantry Crane from Weiyuan offers a unique and cost-effective lifting solution by combining the benefits of an overhead bridge crane and a full gantry crane. One end of the crane travels on an elevated runway beam attached to the building structure, while the other end travels on a rail at ground level. This design saves space and reduces structural costs. Equipped with a versatile and reliable universal wire rope electric hoist, this crane is durable, safe, and easy to install, making it a popular choice for a wide range of indoor and outdoor applications.
Product Advantages
Space and Cost Efficiency
By utilizing an existing runway structure on one side, this crane eliminates the need for a second set of ground rails and support legs. This saves valuable floor space along the building wall and significantly reduces the material and installation costs associated with a full gantry system.
Durable and Reliable Performance
The crane is built around a proven, general-purpose wire rope electric hoist, ensuring stable, safe, and long-lasting operation. The entire system is engineered for durability to withstand the demands of industrial environments.
Flexible and Adaptable Design
Weiyuan offers multiple configurations to tailor the crane to your specific needs. The ground-level leg can be a box-type or rectangular tube structure. The crane can be designed with or without a cantilever to extend the hook’s reach, and models are available for both railed and trackless ground travel.
Multiple Control Options
To ensure efficient and safe operation, the crane can be configured with ground-based pendant control, a dedicated operator’s cabin, or a wireless remote control for maximum operator mobility and visibility.
Wide Application Scope
This crane is an excellent choice for material handling tasks located along the side of a building, both indoors and outdoors. It is frequently used in workshops, warehouses, stockyards, and assembly areas where full gantry coverage is not required.
Intelligent Functionality
Like all Weiyuan cranes, this model can be enhanced with smart features. Options include inching movement for high-precision positioning, electric anti-sway for safer load handling, and wireless expansion to connect to the Weiyuan Crane Industrial Internet Platform for remote monitoring and diagnostics.
Application Scenarios
Indoor/Outdoor Workshops
Ideal for moving materials and components along one side of a workshop or building, leaving the rest of the floor space clear. It’s perfect for serving specific work cells or loading/unloading areas adjacent to a wall.
Manufacturing and Assembly Lines
Provides localized lifting power over specific sections of a production line without the expense of a full overhead or gantry crane spanning the entire facility width.
Storage Yards and Loading Docks
Efficiently handles materials in outdoor storage yards or at loading docks that run parallel to a building. The cantilever option is especially useful for reaching over the side to load and unload trucks.
Maintenance Bays
A cost-effective solution for maintenance shops where heavy components need to be lifted and moved within a defined area next to a structural wall.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Product Name | Universal Hoist Semi-Gantry Crane |
| Lifting Capacity | 1t – 16t |
| Span | 3m – 30m |
| Lifting Height | 6m – 30m |
| Work Level Classification | A4 |
| Lifting Mechanism | Universal steel wire rope electric hoist |
| Operation Modes | Ground control, cabin control, remote control |
Features at a Glance
✓ Stable and Safe Operation: Built for reliable, everyday performance.
✓ Durable Construction: Ensures a long service life.
✓ Space-Saving Design: Frees up valuable floor space.
✓ Cost-Effective Solution: Lower structural and installation costs.
✓ Highly Customizable: Options for cantilevers, legs, and controls.
✓ Wide Applicability: Suitable for workshops, yards, and loading docks.
✓ Smart Feature Ready: Can be upgraded with intelligent controls.
FAQ
Q: What is the main advantage of a semi-gantry crane?
A: The primary advantage is cost and space savings. Since it only requires one ground rail and set of support legs, it is less expensive to build and install than a full gantry crane. It also frees up floor space on the side that runs along an elevated runway.
Q: Can a semi-gantry crane be installed outdoors?
A: Yes, they are very well-suited for outdoor applications, especially in yards or loading areas adjacent to a building where an elevated runway can be mounted.
Q: What is the difference between a tracked and trackless semi-gantry crane?
A: A tracked version runs on a fixed steel rail installed in or on the ground, providing precise, repeatable travel paths. A trackless version uses polyurethane wheels and runs directly on a smooth concrete floor, offering more flexibility in movement but requiring a suitable floor surface.
Q: What does the A4 work level classification mean?
A: The A4 work level (similar to ISO M4) indicates the crane is designed for light to medium-duty service. It’s appropriate for general manufacturing, assembly, and maintenance tasks with moderate load cycles and intensity.
Q: Can Weiyuan help determine if a semi-gantry crane is right for my facility?
A: Absolutely. Our engineering team can assess your facility layout, workflow, and lifting requirements to determine if a semi-gantry crane is the most efficient and cost-effective solution for your application.
