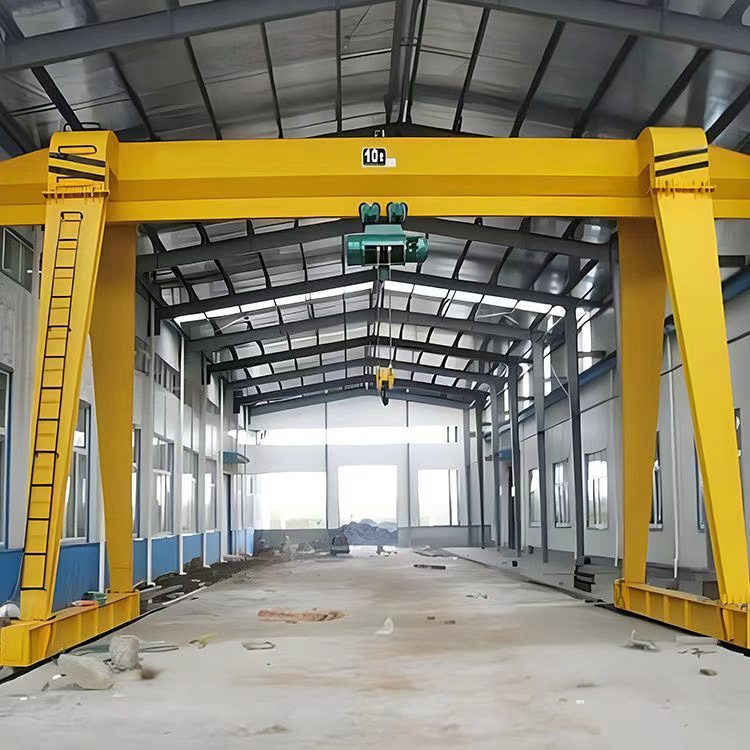

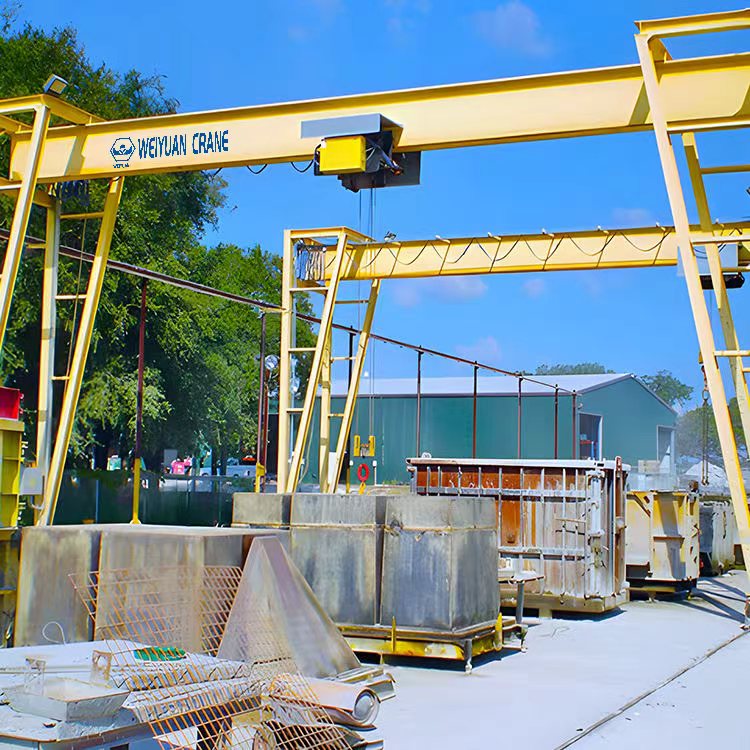

Weiyuan 5–35 Ton Portable Gantry Crane (Indoor/Outdoor)
Product Overview
The Weiyuan Portable Gantry Crane delivers high-efficiency, versatile lifting for indoor and outdoor jobsites. With configurable spans up to 30 m and lifting heights up to 25 m, it adapts to construction, maintenance, fabrication, and warehousing tasks. The electric hoist system, pendant or wireless remote control, and rugged steel frame ensure smooth handling, easy relocation, and reliable uptime under A3–A4 duty.
Product Advantages
- Versatile, Mobile Setup
Works indoors and outdoors; customizable span, height, and color to match your site and workflow. - Broad Capacity Range
Rated options from 3–35 tons covering 5 t, 10 t, 15 t, 20 t, 25 t, 30 t, and 35 t use cases. - Smooth, Precise Control
Electric hoist with pendant/wireless remote for accurate positioning and safer operation. - Durable, Serviceable Design
Heavy-duty steel structure with standardized core components for longevity and easy maintenance. - Warranty & Documentation
1-year warranty with machinery test report and video outgoing inspection for quality assurance.
Application Scenarios
- Construction and civil works: lifting steel, formwork, and MEP skids
- Plant maintenance: motors, pumps, gearboxes, and tooling
- Fabrication and assembly: fixtures, jigs, subassemblies
- Warehouses/yards: staging, loading/unloading
- Temporary projects: rapid deployment and relocation
Product Specifications
| Parameter | Details |
|---|---|
| Rated Capacity | 3–35 ton (custom options) |
| Span | 4.5–30 m (customizable) |
| Max. Lifting Height | Up to 25 m (per configuration) |
| Work Duty | A3–A4 |
| Lifting Mechanism | Electric hoist |
| Control Methods | Pendant / Wireless remote |
| Power Supply | 380V 50Hz three-phase AC |
| Main Electrical Parts | ABM |
| Speed Options | 3.5–8 m/min erection speed |
| Documentation | Machinery test report, video outgoing inspection |
| Warranty | 1 year |
Features at a Glance
- Indoor/outdoor capable with customizable span and height
- Pendant or wireless control for flexible operations
- Heavy-duty steel frame and standardized components
- Quality checks: test report and video inspection
- Branding and packaging customization available (low MOQ)
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
