Weiyuan BMH Cabin Control Semi-Gantry Crane
Product Overview

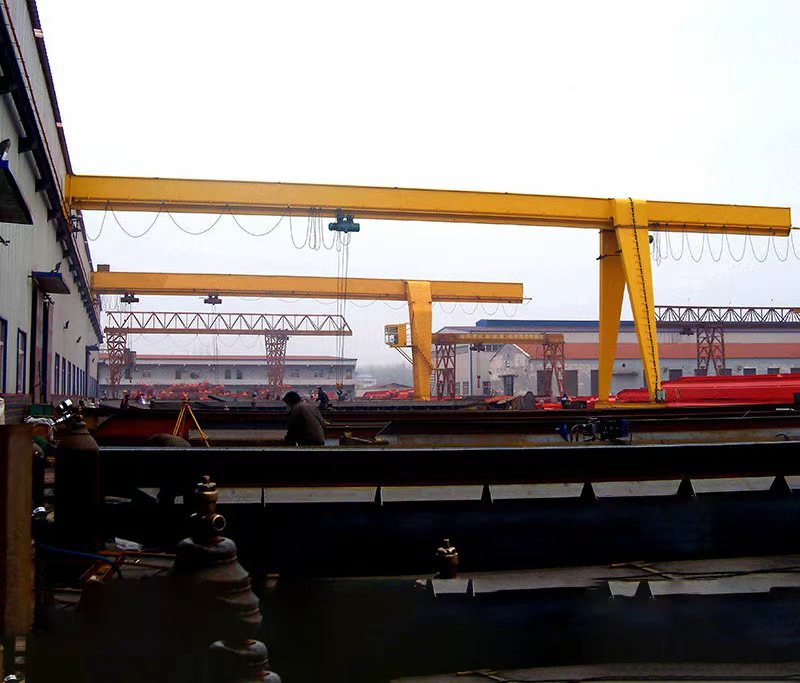

The Weiyuan BMH Model Semi-Gantry Crane with Cabin Control is an advanced, high-technique lifting solution designed for superior operational command and efficiency. This crane features a unique semi-gantry design, with one leg traveling on a ground-level rail and the other end supported by an elevated runway, making it perfect for both indoor and outdoor environments. The addition of a fully enclosed operator cabin provides a secure, comfortable, and controlled environment for high-frequency use. It’s an ideal system for facilities that require the cost-saving benefits of a semi-gantry design combined with the professional oversight of dedicated cabin operation.
Product Advantages
Dedicated Control and Superior Visibility
The key advantage of this model is its operator cabin. The enclosed, climate-controlled workspace protects the operator from outdoor weather and indoor industrial hazards, reducing fatigue and improving focus. The elevated position offers a panoramic, unobstructed view of the entire lifting area, allowing for unparalleled precision and safety, especially in busy or complex operational environments.
Cost-Effective, Space-Saving Installation
This crane delivers significant cost and space savings. By leveraging an existing building wall or support structure for the elevated runway, it eliminates the need and expense of a second set of ground rails and support legs. This opens up valuable floor space on one side, allowing for easier movement of vehicles and materials while still providing extensive crane coverage.
High-Efficiency, Rail-Traveling System
Designed as an electric rail-traveling system, this crane moves smoothly and efficiently along its designated path. This makes it perfect for serving long workbays, production lines, or storage yards. Its ability to travel the length of your facility brings powerful lifting capabilities exactly where they are needed, streamlining workflows and boosting overall productivity.
Robust Engineering for Reliable Performance
Built for a demanding A5 work duty, the BMH model is engineered for consistent, long-term performance. The structure is made from high-strength Q235B/Q345B steel, ensuring maximum rigidity and durability. Paired with a reliable wire rope electric hoist and premium electrical components, this crane is a dependable asset that provides steady performance with minimal maintenance.
Application Scenarios
- Manufacturing Plants: Perfect for continuous-duty work, moving materials along an assembly line or across a busy workshop floor from the safety of a cabin.
- Outdoor Loading Docks: An excellent choice for facilities that need to load and unload trucks frequently, as the cabin protects the operator from the elements.
- Stone and Steel Yards: Provides the precision control and visibility needed to safely handle heavy, valuable materials like marble slabs, steel coils, and structural beams.
- Construction Works: A reliable crane for moving materials along the side of a building under construction, with the cabin providing a secure command center.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Lifting Capacity | 10 Ton (Customizable up to 16T) |
| Span | Up to 31.5m (Customizable) |
| Lifting Height | 10m (Customizable) |
| Work Duty | A5 (Medium Duty) |
| Lifting Mechanism | Wire Rope Electric Hoist |
| Lifting Speed | 8 m/min (or 8/0.8 m/min for dual speed) |
| Crane Traveling Speed | 20 m/min (Customizable with VFD) |
| Control Method | Cabin Control (Standard) / Optional Wireless Remote |
| Main Electrical Parts | Schneider, Siemens (or equivalent brands) |
| Power Supply | 3-Phase 380V 50Hz (Customizable) |
| Material | Q235/Q345 Steel |
Features at a Glance
✓ Secure Operator Cabin: Provides a safe, comfortable, and controlled environment.
✓ Space-Saving Hybrid Design: Combines a ground rail with an elevated runway.
✓ A5 Medium Work Duty: Built for reliable, high-frequency operation.
✓ Smooth Rail-Traveling Motion: Offers efficient coverage over long work areas.
✓ Comprehensive Safety Systems: Equipped with overload limiters and emergency stop functions.
✓ Fully Customizable Solution: Tailor capacity, dimensions, and controls to your facility.
Frequently Asked Questions
Q: When is cabin control a better choice than remote control?
A: Cabin control is the superior choice for high-frequency, all-weather operations. It provides the operator with a safe, protected environment, which improves comfort and focus during long shifts. The elevated vantage point also offers a consistently clear view of the lifting operation, which is critical in busy or outdoor yards where ground-level visibility might be obstructed.
Q: What is the benefit of the semi-gantry design for a cabin-controlled crane?
A: This design provides the “best of both worlds.” You get the dedicated, professional operation of a cabin-controlled crane, which is typical of larger systems, combined with the cost-saving and space-saving advantages of a semi-gantry crane. It’s an economical way to achieve a high level of operational control.
Q: Can this crane be installed inside an existing workshop?
A: Yes. The semi-gantry design is ideal for many existing workshops. We can mount the elevated runway rail directly onto your building’s existing support columns, provided they have the required structural capacity. Our engineering team will work with you to verify your building’s specifications to ensure a safe and secure installation.
Q: What information is needed for a quote on a 10-ton cabin crane?
A: To provide an accurate quote, please inform us of the required lifting capacity (10 tons), the span you need to cover, the desired lifting height, your facility’s power supply details (Voltage/Hz), and if you have any special operational requirements. Our team will then prepare a comprehensive technical proposal for you.
