Weiyuan BMH Model Single Beam Semi-Goliath Crane
Product Overview

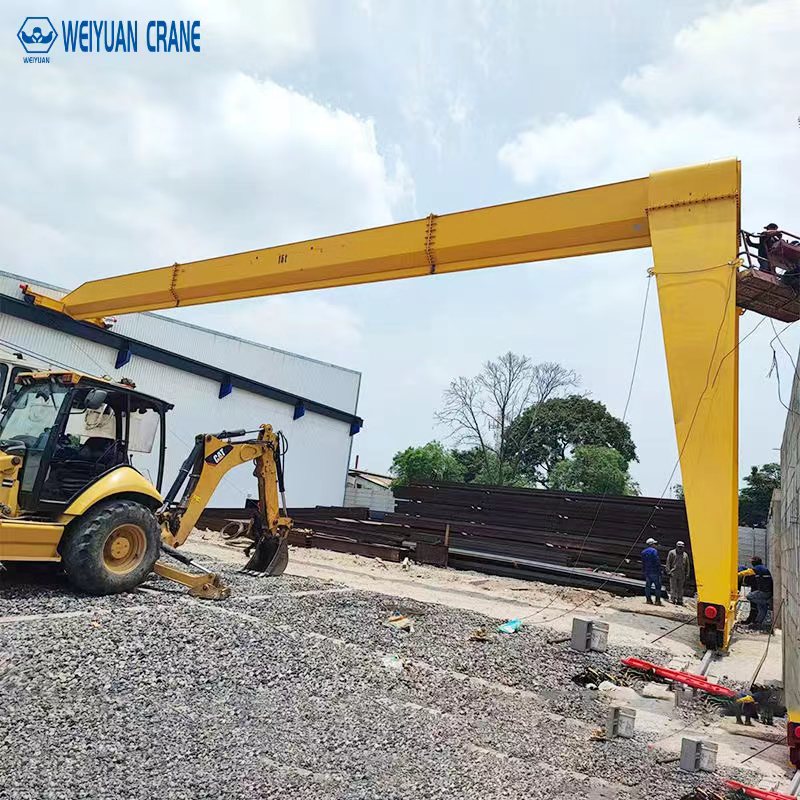

The Weiyuan BMH Model Single Beam Semi-Goliath Crane is an innovative and highly efficient lifting solution, perfectly engineered for environments where full gantry crane installation is not feasible. This semi-gantry crane combines the advantages of an overhead crane and a gantry crane, with one end running on an elevated workshop rail and the other on a ground-level track. Its smart design maximizes workspace and provides exceptional flexibility, making it an ideal choice for manufacturing plants, warehouses, and outdoor stockyards.
Product Advantages
Space-Optimizing Hybrid Design
The semi-gantry structure is uniquely suited for facilities with partial outdoor or indoor/outdoor operations. It utilizes existing building structures on one side, saving space and reducing the cost of a full gantry runway system, while offering extensive ground-level coverage.
Durable and Reliable Construction
Built with high-strength Q235B/Q345B steel and manufactured using advanced CNC cutting, our BMH model crane guarantees superior structural integrity and a long service life. Its robust design ensures stable, dependable performance even in demanding industrial settings.
Fully Customizable for Your Needs
Weiyuan offers comprehensive customization to perfectly match your operational requirements. You can specify the lifting capacity (from 1 to 16 tons), span, lifting height, and control methods. Choose between convenient ground control or an advanced wireless remote for enhanced safety and flexibility.
Smooth and Safe Performance
Engineered for safety and precision, the crane features a high-quality wire rope electric hoist for smooth lifting. It is equipped with essential safety devices, including overload protection, low voltage protection, and travel limit switches, to ensure secure and accident-free operation.
Application Scenarios
- Manufacturing Plants: Ideal for moving materials and finished products between indoor production lines and adjacent outdoor storage areas.
- Warehousing and Logistics: Perfect for loading and unloading goods from trucks or organizing inventory in areas that are partially covered.
- Machinery Repair Shops: Provides reliable lifting support for servicing heavy equipment and components where floor space is at a premium.
- Construction and Material Yards: Excellently suited for handling steel, precast concrete, and other building materials in open or semi-covered yards.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Lifting Capacity | 1T, 2T, 3T, 5T, 10T, 16T (customizable) |
| Span | Up to 31.5m (customizable) |
| Lifting Height | Up to 20m (customizable) |
| Work Duty | A3 – A5 |
| Lifting Mechanism | Wire Rope Electric Hoist (CD1/MD1) |
| Control Method | Ground Control / Wireless Remote Control |
| Lifting Speed | 8 m/min (or 8/0.8 m/min dual speed) |
| Crane Travel Speed | 20 m/min (customizable) |
| Power Supply | 3-Phase 380V/415V/440V, 50/60Hz |
Features at a Glance
✓ Hybrid Design: Maximizes workspace by combining overhead and ground rail systems.
✓ Customizable Options: Tailored lifting capacity, span, and height to fit your site.
✓ Reliable Construction: Built with high-strength steel and premium components for durability.
✓ Safety Assurance: Includes overload protection, limit switches, and other safety devices.
✓ Smooth Operation: Features high-quality hoisting and travel mechanisms for precise handling.
✓ Versatile Applications: Suitable for both indoor and outdoor industrial environments.
Frequently Asked Questions
Q: Is the BMH semi-gantry crane suitable for outdoor use?
A: Yes, absolutely. The crane is designed for versatility. We equip it with rainproof devices for the lifting mechanism and electrical control box to ensure reliable performance in outdoor conditions.
Q: What is the main benefit of a semi-gantry crane over a full gantry crane?
A: The primary benefit is cost and space savings. By utilizing an existing building runway on one side, you eliminate the need for one set of gantry legs and a ground rail, reducing infrastructure costs and freeing up valuable floor space.
Q: Can this crane be installed in my existing facility?
A: Yes, the BMH model is designed for integration into existing structures. As long as you have a supporting runway beam on one side of the work area, our crane can be installed. We provide full technical support for the installation process.
Q: How do I get a quote for a 5-ton semi-gantry crane?
A: Contact us with your required specifications: lifting capacity (5 tons), span (the width you need to cover), lifting height, and your preferred control method (ground or remote). Our engineering team will provide you with a detailed and competitive quotation.
