Weiyuan BMH Type Semi-Gantry Crane | 3 Ton, 5 Ton | Workshop & Yard Solution
Product Overview

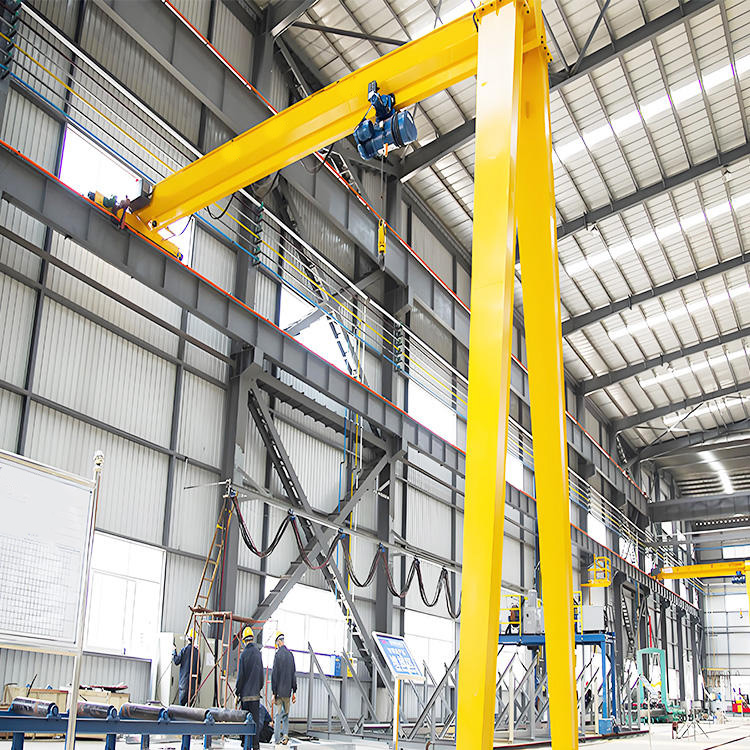

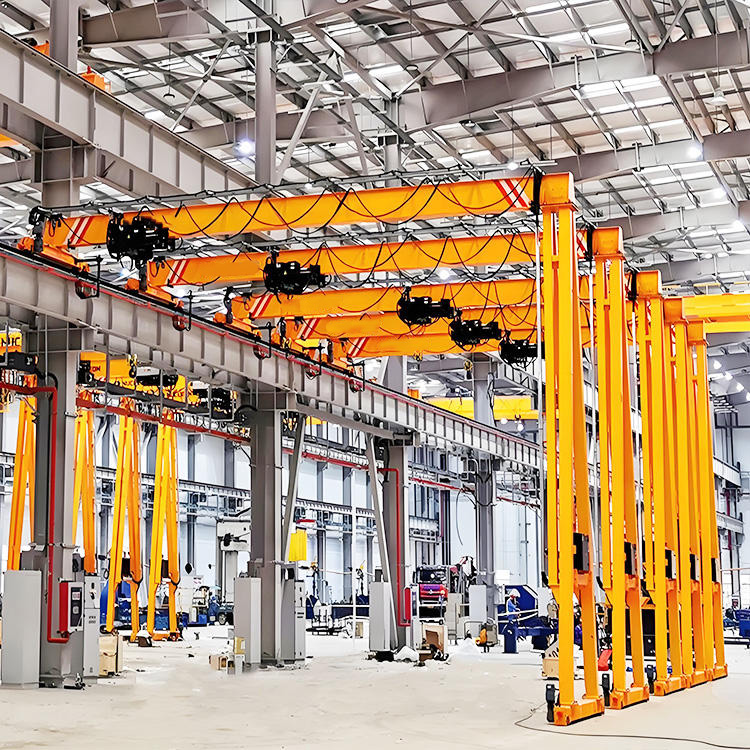

The Weiyuan BMH Type Semi-Gantry Crane, available in popular 3-ton and 5-ton capacities, is a highly efficient and adaptable lifting solution for a variety of industrial settings. This crane features a smart hybrid design where one side travels on a ground-level rail, while the other end-beam runs along an elevated runway, typically mounted to a building’s existing structure. This configuration provides the lifting power of a gantry crane while maximizing open floor space. Manufactured by Weiyuan, this crane is a cost-effective and reliable choice for workshops, warehouses, and outdoor loading areas.
Product Advantages
- Maximizes Floor Space: By eliminating one of the ground-level support legs, the BMH crane keeps one side of your work area completely open, allowing for easy movement of forklifts, vehicles, and personnel.
- Cost-Effective Installation: This design can reduce overall project costs. It requires less foundation work and steel for ground rails compared to a full gantry crane, making it an economical investment.
- Versatile Indoor/Outdoor Use: Perfectly suited for installation along the side of a workshop or in an outdoor loading bay adjacent to a building. It provides targeted lifting coverage exactly where you need it.
- Reliable and Stable Operation: The combination of a ground rail and an elevated beam ensures smooth, stable, and precise travel, contributing to a safer and more efficient work environment.
- Proven Capacities: The 3-ton and 5-ton models are ideal for a wide range of common light-to-medium duty lifting tasks, from moving machine parts to loading and unloading goods.
Application Scenarios
- Manufacturing Workshops: An excellent solution for servicing specific work cells or production lines located along the wall of a factory, without obstructing the main floor.
- Warehouse Loading Docks: Ideal for lifting goods on and off trucks in a loading bay, where the crane can run between the building wall and the edge of the bay.
- Outdoor Material Storage: Provides efficient lifting for storage yards that are situated next to a main building, using the building itself for one of the crane runways.
- Maintenance Bays: Used in designated repair and maintenance areas to lift engines, pumps, and other heavy equipment without needing a full overhead crane system.
- Stone and Metal Fabrication: Well-suited for handling slabs or metal sheets at the edge of a workshop or yard.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Weiyuan |
| Rated Capacity | 3 ton, 5 ton (Other capacities available) |
| Span | Up to 20 m (Customized to your workspace) |
| Max. Lifting Height | Up to 12 m (Customized as per demand) |
| Work Duty | A3–A4 (Light to Medium Duty) |
| Structure | BMH Type Single Girder Semi-Gantry |
| Lifting Speed | 8 m/min (or 8/0.8 m/min dual speed) |
| Trolley Traveling Speed | 20 m/min |
| Crane Traveling Speed | 20 m/min |
| Control Methods | Pendant Control, Wireless Remote Control |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Electrical Components | Reputable Chinese or international brands (e.g., Schneider) |
| Safety Devices | Overload protection, emergency stop, travel limit switches |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 (Can be upgraded to IP55 for outdoor use) |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Warranty | 1 Year |
| Lead Time | 20–30 days (Negotiable) |
Features at a Glance
- Versatile Weiyuan BMH semi-gantry crane in 3-ton and 5-ton capacities.
- Space-saving design keeps one side of the work area clear.
- Economical lifting solution for both indoor and outdoor use.
- Smooth and reliable performance on a combined ground and elevated rail system.
- Customizable by Weiyuan to fit your facility’s unique layout.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
