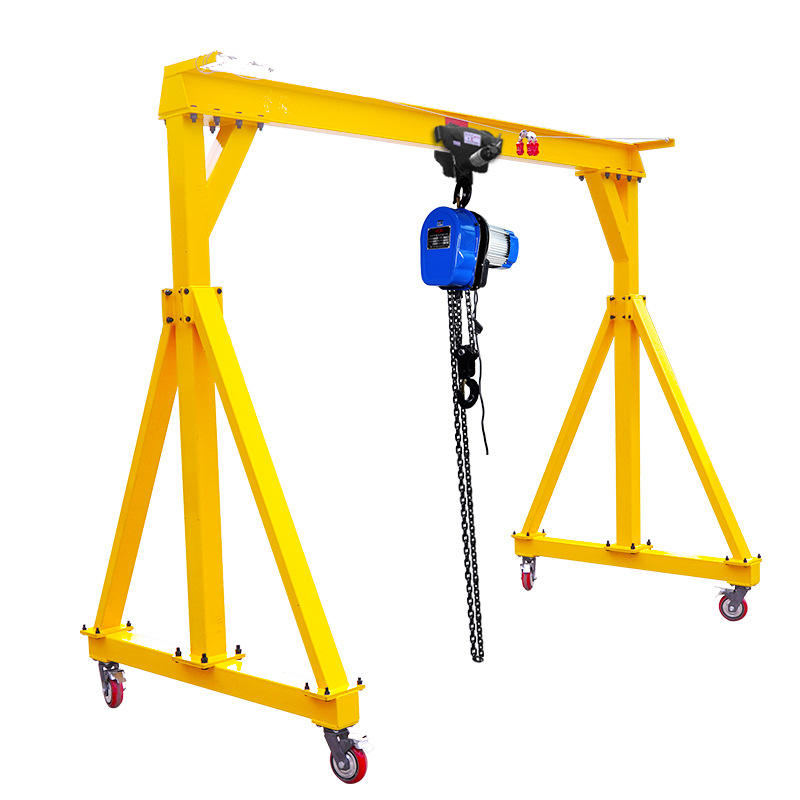

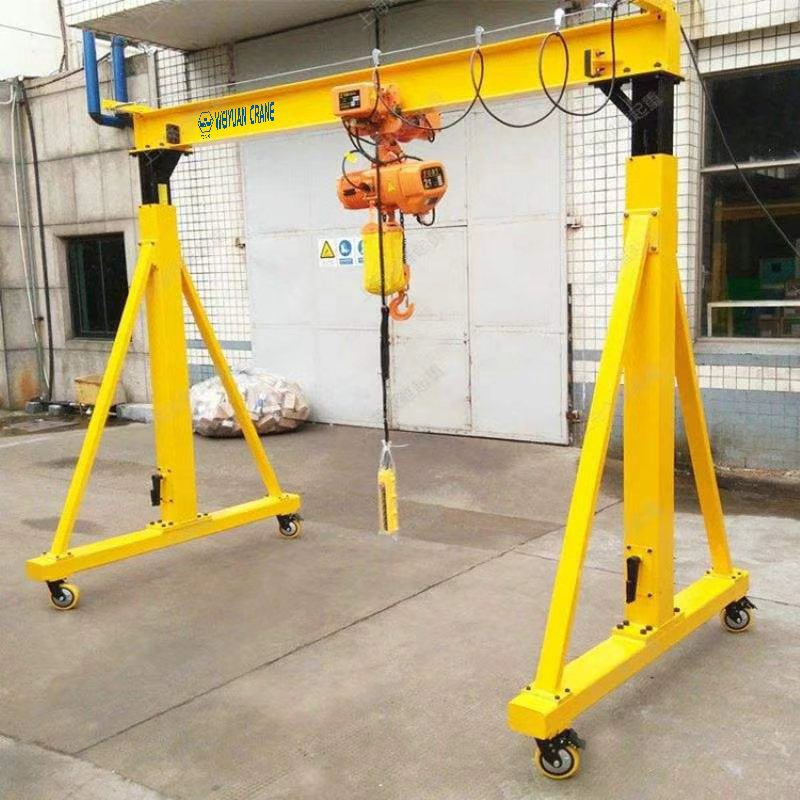

Weiyuan Customized Mini Gantry Frame Crane
Product Overview
The Weiyuan Mini Gantry Frame Crane is a compact, powerful, and highly mobile lifting solution designed for flexibility in smaller-scale industrial and commercial environments. This portable gantry system offers the strength and reliability of a larger crane in a simple, adjustable, and easy-to-assemble package. Ideal for workshops, garages, and light manufacturing facilities where space is limited or lifting needs are temporary, this crane provides an efficient and affordable way to handle loads up to 5 tons, empowering your team to work safer and smarter.
Product Advantages
Ultimate Portability and Flexibility
Designed for mobility, this mini gantry crane is equipped with heavy-duty casters (wheels), allowing it to be easily moved anywhere in your facility. Its simple, bolt-together design means it can be quickly assembled or disassembled for transport between job sites, offering unmatched operational freedom.
Adjustable Height and Span
Adapt the crane to your specific task. Many of our models feature adjustable height and span configurations, allowing you to customize the crane’s dimensions to fit through doorways, under overhead obstacles, or over wide machinery, providing a truly versatile lifting tool.
Robust Strength in a Compact Frame
Do not let its size fool you. Constructed from high-strength steel, the Weiyuan mini gantry crane is engineered for stability and durability. It provides a secure and reliable lifting capacity for heavy items like engines, molds, and equipment in spaces where a permanent overhead crane is not practical.
Simple, One-Person Operation
Paired with a user-friendly electric or manual hoist, this gantry frame is designed for straightforward operation. The smooth-rolling casters and intuitive controls allow a single operator to safely lift and transport heavy loads, increasing efficiency and reducing labor costs.
Affordable and Low-Maintenance Solution
This crane offers a significant lifting capability for a minimal investment. With no need for a permanent foundation or runway structure, the initial cost is low. Its simple mechanical design requires minimal maintenance, ensuring a low total cost of ownership.
Application Scenarios
- Automotive Repair and Garages: Perfect for lifting engines, transmissions, and vehicle chassis, providing a safe and efficient alternative to engine hoists.
- Small Workshops and Machine Shops: An essential tool for loading and unloading materials from machinery, lifting heavy dies and molds, and assembling components.
- Warehousing and Stock Rooms: Ideal for lifting heavy items off shelving or moving goods in areas inaccessible to forklifts.
- HVAC and Facilities Maintenance: Simplifies the lifting and positioning of pumps, motors, and HVAC units on rooftops or in mechanical rooms.
Product Specifications and Dimensions
| Specification | Parameters |
|---|---|
| Lifting Capacity | 0.5t, 1t, 2t, 3t, 5t (Customizable) |
| Span | 2m – 6m (Adjustable models available) |
| Lifting Height | 2m – 5m (Adjustable models available) |
| Frame Type | Fixed or Adjustable Height Steel Frame |
| Hoist Type | Electric Chain Hoist / Manual Chain Hoist / Wire Rope Hoist |
| Travel Mechanism | Heavy-Duty Polyurethane Casters (with brakes) |
| Control Method | Pendant Control / Manual |
| Assembly | Simple Bolt-Together Design |
| Surface Treatment | Industrial Paint Finish (Custom colors available) |
Features at a Glance
✓ Portable and Mobile: Easily move it around your workspace on durable casters.
✓ Adjustable Design: Customize height and span to fit your needs.
✓ Compact and Strong: Heavy-duty lifting power in a small footprint.
✓ Easy Assembly: Quick to set up and take down with no special tools.
✓ Versatile Hoist Options: Compatible with electric or manual hoists.
✓ Affordable Lifting Power: An economical solution for small-scale lifting tasks.
FAQ
Q: How easy is it to move the crane once a load is lifted?
A: The crane is designed to be moved under load, but this should always be done slowly and carefully on a smooth, level surface. The heavy-duty casters make movement manageable, and the wheel brakes should be engaged once the crane is in position.
Q: Can I use this crane outdoors?
A: Yes, the steel frame with its durable paint finish can be used outdoors. However, for long-term outdoor storage, we recommend additional weather-resistant coatings. Always operate on a firm, level surface.
Q: Does the crane come with a hoist included?
A: We offer the gantry frame as a standalone unit or as a complete package with a hoist. You can choose from a manual chain hoist, an electric chain hoist, or an electric wire rope hoist to best suit your budget and application.
Q: What is the difference between an adjustable and a fixed-height model?
A: A fixed-height model has a set, non-changeable height, which is simple and very robust. An adjustable-height model allows you to change the beam height, which is extremely useful for moving the crane through doorways or adapting to different lifting scenarios.
Q: How do I choose the right capacity for my needs?
A: Always select a crane with a rated capacity greater than the heaviest object you plan to lift. For a 1-ton engine, a 2-ton capacity crane is a safe and recommended choice to ensure a proper safety margin.
