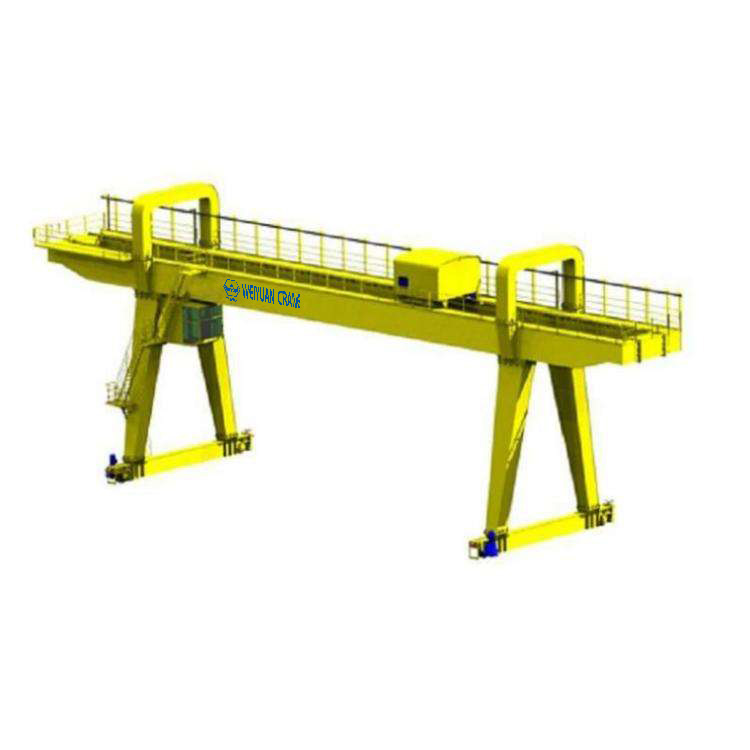

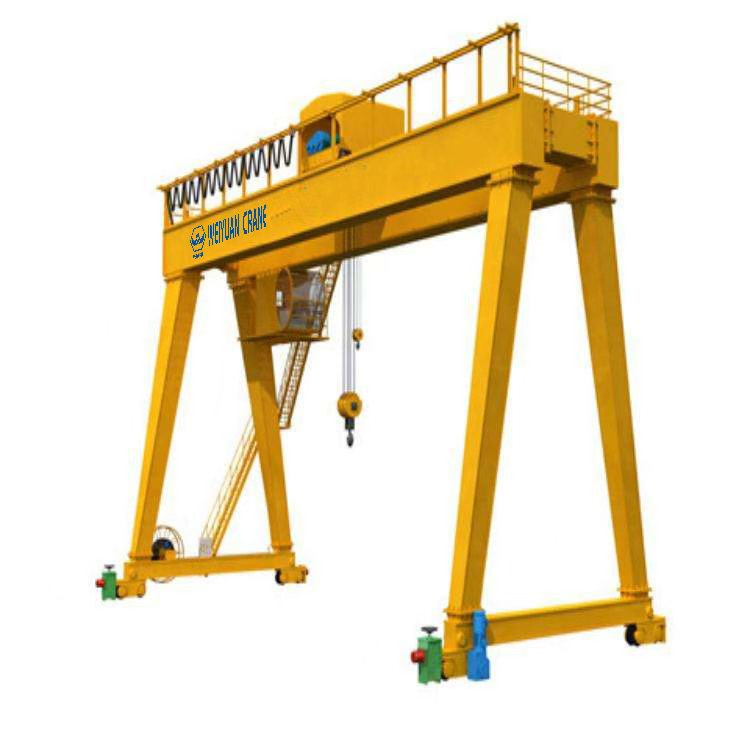

Weiyuan Double Girder Rail Traveling Container Crane
Product Overview
The Weiyuan 45T Double Girder Rail Traveling Container Crane is engineered for superior performance in high-throughput container terminals and rail yards. Designed to handle the rigorous demands of modern logistics, this Rail-Mounted Gantry (RMG) crane offers a robust 45-ton lifting capacity. Its double-girder structure ensures exceptional stability and precision when handling standard 20ft, 40ft, and 45ft containers. Featuring advanced control systems and durable construction, this crane is a critical asset for optimizing yard space, accelerating vessel turnaround times, and boosting overall operational efficiency.
Product Advantages
- Heavy-Duty Lifting Power: With a substantial 45-ton rated capacity, this crane effortlessly handles fully-loaded containers, making it a reliable workhorse for busy port and intermodal operations.
- Exceptional Stability and Precision: The double-girder design and rail-mounted travel system provide a rigid, stable platform, minimizing sway and allowing for precise, repeatable container placement, which is essential for dense stacking.
- High-Speed Productivity: Engineered for rapid trolley and gantry travel speeds, this crane significantly reduces container handling cycle times, maximizing throughput and ensuring your operations run on schedule.
- Durable, All-Weather Construction: Built with high-strength steel and protected by a multi-layer anti-corrosion paint system, the crane is designed for continuous 24/7 operation in harsh maritime environments.
- Advanced Control & Automation: Equipped with a modern operator cabin and advanced PLC controls, the crane offers smooth, responsive handling. It is also ready for semi- or full-automation upgrades to further enhance efficiency and safety.
Application Scenarios
- Seaport Container Terminals: The primary application for loading and unloading containers from ships, stacking them in the yard, and transferring them to trucks or railcars.
- Intermodal Rail Yards: Essential for efficiently transferring containers between trains and trucks, serving as a key link in the global supply chain.
- Large-Scale Logistics Hubs: Ideal for managing high volumes of container traffic in major distribution centers and inland container depots.
- Container Storage Yards: Provides a high-density stacking solution, maximizing the use of valuable yard space while maintaining quick access to containers.
Product Specifications
| Parameter | Details |
|---|---|
| Rated Lifting Capacity | 45 tons (customizable) |
| Span | 12m to 35m (customized to span multiple container rows) |
| Lifting Height | 6m to 18m (or as required for stacking height) |
| Applicable Container | 20ft, 40ft, 45ft ISO Containers |
| Lifting Mechanism | Specialized Container Spreader |
| Control Method | Cabin Control, Remote Control, Semi-automated |
| Working Duty | A6 – A7 (Heavy Duty) |
| Crane Traveling Speed | Up to 90 m/min (customizable) |
| Power Supply | 3-phase AC (380V/50Hz or as per client specifications) |
| Core Components | Motor, PLC, Bearing, Gearbox, specialized Spreader |
Features at a Glance
- Robust Double-Girder Design: Ensures maximum stability and safety for handling heavy loads.
- Telescopic Container Spreader: Adjusts to handle various standard container sizes with ease.
- Rail-Mounted Precision: Provides smooth, predictable travel for accurate positioning.
- Ergonomic Operator Cabin: Offers excellent visibility and a comfortable environment for safe, extended operation.
- Comprehensive Safety Systems: Includes overload protection, limit switches, and an anemometer.
FAQ
1. What is the main difference between an RMG crane like this one and a Rubber-Tired Gantry (RTG) crane?
An RMG crane runs on fixed rails, offering higher operational speeds, greater stability, and better suitability for automation. An RTG crane runs on rubber tires, providing more flexibility to move between container stacks but is generally slower and manually operated.
2. Can this crane handle two 20ft containers at once?
Yes, it can be equipped with a twin-lift spreader attachment that allows it to lift and handle two 20ft containers simultaneously, significantly increasing productivity.
3. What kind of foundation is needed for this crane?
The crane requires a strong, reinforced concrete foundation with embedded steel crane rails (e.g., P43, QU70, QU80) to support its weight and the dynamic forces of operation. We provide detailed specifications for the foundation and rail installation.
4. How is the crane powered?
RMG cranes are typically powered by electricity through a cable reel system or a busbar conductor system installed along the runway, making them more environmentally friendly than diesel-powered RTGs.
5. Is it possible to customize the crane’s specifications?
Absolutely. Weiyuan specializes in customizing cranes to meet specific client needs. We can adjust the lifting capacity, span, lifting height, and control systems to perfectly match your terminal’s requirements.
