Weiyuan Heavy-Duty BMH Type Semi-Gantry Crane | Robust, Space-Saving, High Performance
Product Overview

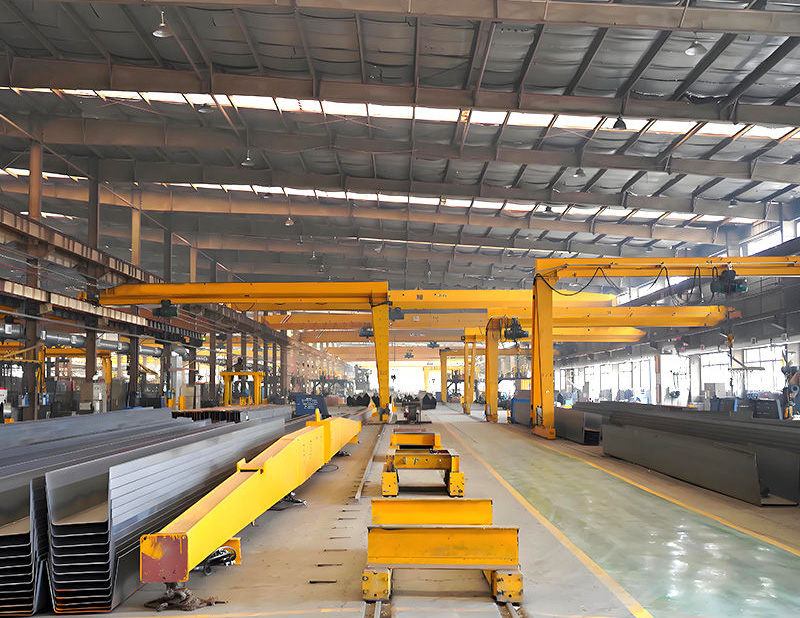

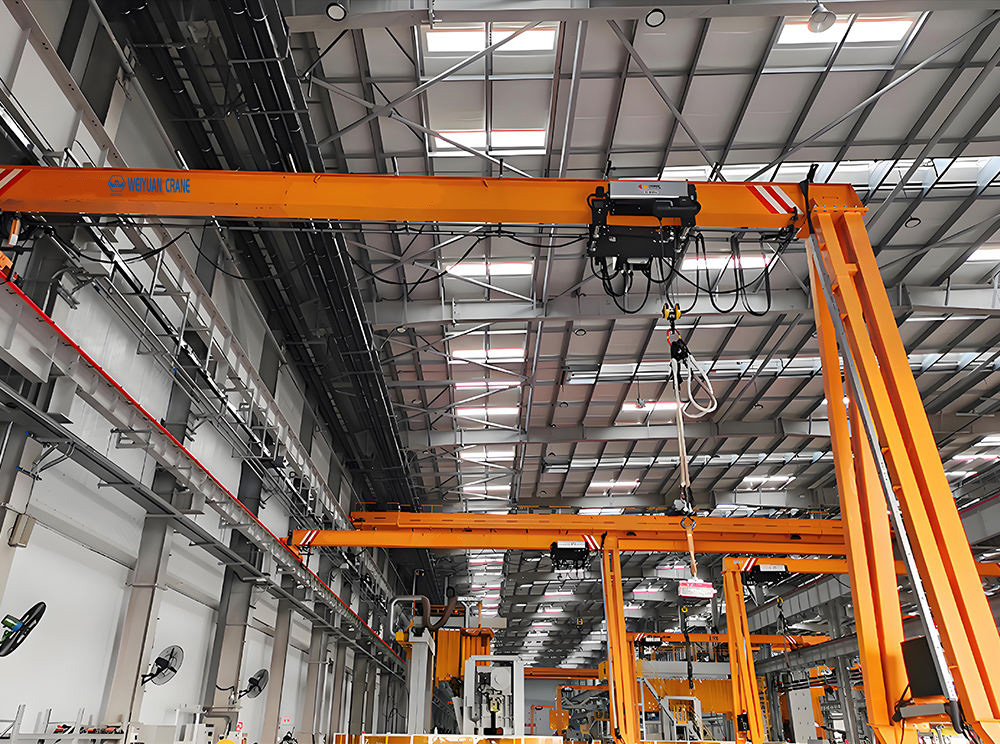

The Weiyuan Heavy-Duty BMH Type Semi-Gantry Crane is a powerful and robust lifting solution engineered for demanding industrial applications. This crane features an intelligent semi-gantry design, with one leg traveling on a ground-level rail and the other end running on an elevated runway, typically mounted on a building’s structure. This configuration is specifically designed to handle heavy loads while maximizing usable floor space. Built by Weiyuan for durability and high performance, this heavy-duty crane is the perfect choice for steel yards, manufacturing plants, and any operation requiring serious lifting power without the footprint of a full gantry crane.
Product Advantages
- Heavy-Duty Construction: Engineered with high-strength steel and premium components, this Weiyuan crane is built to withstand the rigors of continuous, heavy lifting operations, ensuring maximum uptime and a long service life.
- Optimized Workspace: The semi-gantry design is a major space-saver. By keeping one side of the work area free of ground rails and support legs, it allows for unobstructed traffic flow and more flexible use of your facility’s floor.
- Powerful and Efficient Lifting: Equipped with high-performance hoists and robust travel mechanisms, this crane delivers the power and speed needed to move heavy materials efficiently, boosting overall productivity.
- Cost-Effective Heavy Lifting: Compared to a full overhead or gantry crane system of similar capacity, the BMH semi-gantry can offer a more economical solution by reducing the required foundation work and structural steel.
- Customized for Your Application: Weiyuan will engineer the crane’s capacity, span, speeds, and duty cycle to meet the specific demands of your heavy-duty application, providing a truly tailored lifting solution.
Application Scenarios
- Steel Service Centers & Stockyards: Ideal for lifting and moving heavy steel coils, plates, and structural beams in yards adjacent to a processing or storage building.
- Heavy Manufacturing Plants: Used alongside factory walls for lifting heavy machinery, large fabrications, and dies without impeding the main production flow.
- Precast Concrete Yards: Perfectly suited for handling large, heavy precast concrete segments, such as bridge girders and large panels, at production facilities.
- Shipbuilding: Provides powerful lifting capability for moving heavy hull sections and large components along the side of a dry dock or assembly hall.
- Power Generation Plants: Used for maintenance and handling of heavy turbines, generators, and other critical equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Weiyuan |
| Rated Capacity | 10t to 50t (Customizable for heavier loads) |
| Span | Up to 35 m (Customized to your facility) |
| Max. Lifting Height | Up to 20 m (Customized as per demand) |
| Work Duty | A5–A6 (Medium to Heavy Duty) |
| Structure | Heavy-Duty BMH Type Single or Double Girder Semi-Gantry |
| Lifting Speed | Customized (VFD control for smooth operation) |
| Trolley Traveling Speed | 20-40 m/min (Customizable with VFD) |
| Crane Traveling Speed | 20-40 m/min (Customizable with VFD) |
| Control Methods | Cabin Control, Wireless Remote Control |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Electrical Components | Siemens, Schneider, or equivalent premium brands |
| Safety Devices | Overload limiter, travel limit switches, emergency stop, rail clamps, anemometer |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP55 for robust outdoor/dusty environment use |
| Steel Grade | Q355B High-Strength Carbon Steel |
| Warranty | 1 Year |
| Lead Time | 30–50 days (Negotiable) |
Features at a Glance
- Weiyuan BMH semi-gantry crane for heavy-duty applications.
- Space-saving design maximizes clear floor space.
- Robust construction for reliable, high-performance lifting.
- Ideal for both demanding indoor and outdoor environments.
- Fully customizable by Weiyuan with premium components.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
