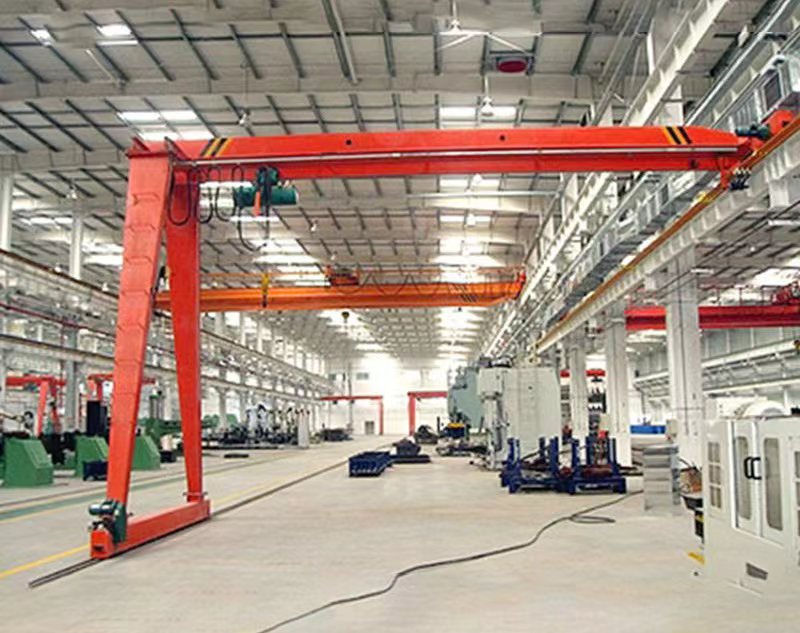

Weiyuan High-Technique BMH Type Semi-Gantry Crane
Product Overview
The Weiyuan High-Technique BMH Type 16t Single Girder Semi-Gantry Crane offers a powerful and intelligent lifting solution for demanding industrial tasks. This crane is engineered for superior performance in hybrid environments, where one side operates on an elevated runway and the other on a ground-level track. Its robust design, combined with advanced technology, provides the muscle needed for heavy lifting up to 16 tons while optimizing your workspace and operational flow.
Product Advantages
Heavy-Duty Lifting Power
With a rated capacity of 16 tons, this crane is built to handle substantial loads with ease. Its strong single-girder structure, made from high-grade steel, ensures maximum stability and safety during heavy lifting operations, making it a reliable workhorse for your facility.
Advanced Control and High Precision
This model is equipped with sophisticated control options, including remote control, to give your operators unmatched precision and safety. The ability to manage heavy loads from a safe distance improves visibility and reduces workplace risks, while the high-quality hoist mechanism ensures smooth and steady movement.
Cost-Effective and Space-Saving Design
The semi-gantry configuration is a smart investment. It reduces infrastructure costs by utilizing your existing building structure for one of its rails, eliminating the need for a second set of ground tracks and support legs. This opens up valuable floor space for other operations.
Built for Durability and Reliability
We construct our cranes to meet stringent international standards (CE, ISO). Core components like the PLC, motor, and gearbox are sourced from leading brands to guarantee a long service life and minimize downtime. The crane is also treated with an epoxy zinc-rich paint finish for enhanced corrosion resistance.
Application Scenarios
- Heavy Manufacturing: Perfect for moving large components, dies, and finished products in machine shops, steel fabrication plants, and assembly lines.
- Precast Concrete Yards: Efficiently handles and positions heavy concrete sections, beams, and panels for storage and loading.
- Outdoor Storage and Shipping: Ideal for facilities that need to transfer heavy goods between indoor workshops and outdoor yards or loading docks.
- Large-Scale Maintenance: Provides the lifting capacity required for servicing heavy industrial machinery, engines, and other oversized equipment.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Lifting Capacity | Up to 16T (customizable) |
| Span | Up to 12m (customizable) |
| Lifting Height | Up to 20m (customizable) |
| Work Duty | A3 – A5 |
| Lifting Mechanism | High-Performance Wire Rope Electric Hoist |
| Control Method | Remote Control / Ground Control |
| Lifting Speed | 8 m/min (or 8/0.8 m/min dual speed) |
| Crane Travel Speed | 20 m/min (customizable) |
| Power Supply | 3-Phase 380V/415V/440V, 50/60Hz |
Features at a Glance
✓ 16-Ton Capacity: Engineered for heavy-duty lifting tasks.
✓ Advanced Remote Control: Enhances operational safety and precision.
✓ Durable Construction: Built with premium steel and components for longevity.
✓ Space-Saving Footprint: Hybrid design maximizes usable floor area.
✓ Fully Customizable: Tailored to your specific span, height, and operational needs.
✓ Certified Quality: Complies with CE and ISO standards for safety and reliability.
Frequently Asked Questions
Q: Can the 16-ton capacity be customized if I need slightly more?
A: While this model is optimized for 16 tons, we can evaluate your specific requirements. Please contact our engineering team to discuss a custom solution that meets your exact lifting needs and safety standards.
Q: What kind of maintenance does this heavy-duty crane require?
A: Maintenance is straightforward. It involves regular inspections of the wire rope, hook, brakes, and electrical systems. We provide a detailed maintenance manual, and our technical support team is always available for guidance.
Q: How does the semi-gantry design handle a 16-ton load safely?
A: The crane’s main girder and support leg are engineered specifically for the rated load, with a significant safety factor. The structural integrity, combined with safety features like overload limiters and emergency stops, ensures every lift is secure.
Q: How can I get a quote for a customized 16-ton semi-gantry crane?
A: It’s easy. Provide us with your lifting capacity, required span and lifting height, and preferred control method. Our experts will quickly prepare a comprehensive quote and technical proposal tailored to your project.
