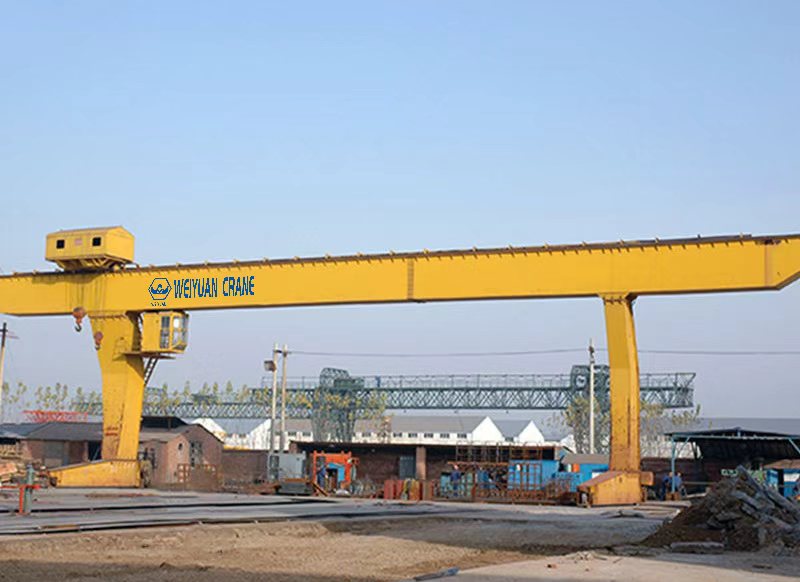

Weiyuan L-Shape Electronically Controlled Single Beam Gantry Crane
Product Overview
The Weiyuan L-Shape Electronically Controlled Single Beam Gantry Crane is an innovative lifting solution specifically engineered for handling materials in workshops and yards with demanding space requirements. Its distinctive L-shaped leg and single girder design create an expansive area beneath the crane, allowing for unobstructed movement and handling of long or bulky items. Paired with a hanging electric hoist, this rail-traveling crane offers exceptional reach and efficiency for heavy-duty applications.
Product Advantages
Maximum Operational Space
The standout feature is its L-shaped leg structure, which provides superior clearance compared to traditional gantry cranes. This design allows long loads like pipes, steel sections, and lumber to pass through the leg area effortlessly, maximizing your usable workspace and operational flexibility.
Heavy-Duty and Reliable
Engineered for performance, this crane supports lifting capacities from 5 to 32 tons. The robust box-shape girder and high-quality steel construction ensure stability and durability for continuous, high-intensity use (Work Duty A3-A5), making it a reliable asset for any industrial setting.
Advanced Electronic Control
Equipped with a sophisticated electronic control system, operators can manage all movements with precision and safety. The crane can be operated from a comfortable, enclosed cabin or via a wireless remote, providing excellent visibility and responsive handling to enhance productivity and protect valuable materials.
Fully Customizable Solution
Weiyuan offers complete customization to ensure the crane meets your exact needs. Specify your required lifting capacity, span (12-30m), lifting height, and control method. We tailor every detail, including color and power supply, to seamlessly integrate with your facility’s infrastructure.
Application Scenarios
- Steel Warehouses & Fabrication: Ideal for lifting and transporting long steel beams, rebar, and plates within storage yards and fabrication workshops.
- Precast Concrete Plants: Efficiently handles large, heavy precast sections, moving them from production areas to storage or loading zones.
- Shipbuilding and Large Assembly: The open-sided design is perfect for moving large hull sections and other oversized components during assembly.
- Outdoor Material Yards: Built for outdoor durability with appropriate weatherproofing, it excels at organizing and handling raw materials in stockyards.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Rated Lifting Capacity | 5, 10, 16, 20, 32 Ton (Customizable) |
| Span | 12m – 30m (Customizable) |
| Max. Lifting Height | Up to 30m (Customizable) |
| Work Duty | A3 – A5 |
| Lifting Mechanism | Electric Hoist / Trolley |
| Control Method | Cabin Control / Wireless Remote / Pendant |
| Lifting Speed | 8 m/min or 8/0.8 m/min (Dual Speed Optional) |
| Travel Speed | 20/30 m/min (Customizable) |
| Power Supply | 3-Phase 380V/415V/440V, 50/60Hz |
Features at a Glance
✓ Unique L-Shape Leg: Creates unparalleled clearance for long loads.
✓ Heavy Lifting Power: Capable of handling up to 32 tons with ease.
✓ Durable Box-Girder: Ensures structural integrity and a long service life.
✓ Precise Electronic Controls: Offers safe and efficient operation via cabin or remote.
✓ Fully Tailored to You: Customizable capacity, span, height, and features.
✓ Versatile Applications: Designed for steel yards, construction, and heavy manufacturing.
Frequently Asked Questions
Q: What is the primary benefit of the “hanging” single beam design?
A: The hanging hoist configuration on a single beam, combined with the L-shaped leg, provides a very large and open lifting area. It allows the hoist to cover a wide span and reach beyond the crane’s legs, which is critical for loading/unloading materials at the edge of your workspace.
Q: Can this crane be installed in an area with existing structures?
A: Yes, the L-shape design is often chosen for its ability to work around existing buildings or obstacles. As a rail-mounted crane, it requires a clear path for its ground-level track, but its design can often be adapted to fit into complex environments.
Q: What safety features are included?
A: The crane comes standard with a full suite of safety features, including an overload limiter, emergency stop button, travel limit switches, and anti-collision devices. The enclosed cabin also provides a protected environment for the operator.
Q: How do I request a quote for this crane?
A: To receive a detailed quote, please provide us with the lifting capacity you need, the span of your work area, the maximum lifting height required, and your preferred control method (cabin or remote). Our engineering team will prepare a custom proposal for you.
