Weiyuan MG Type Gantry Crane | Cabin Control, Rail-Mounted, Double Girder
Product Overview

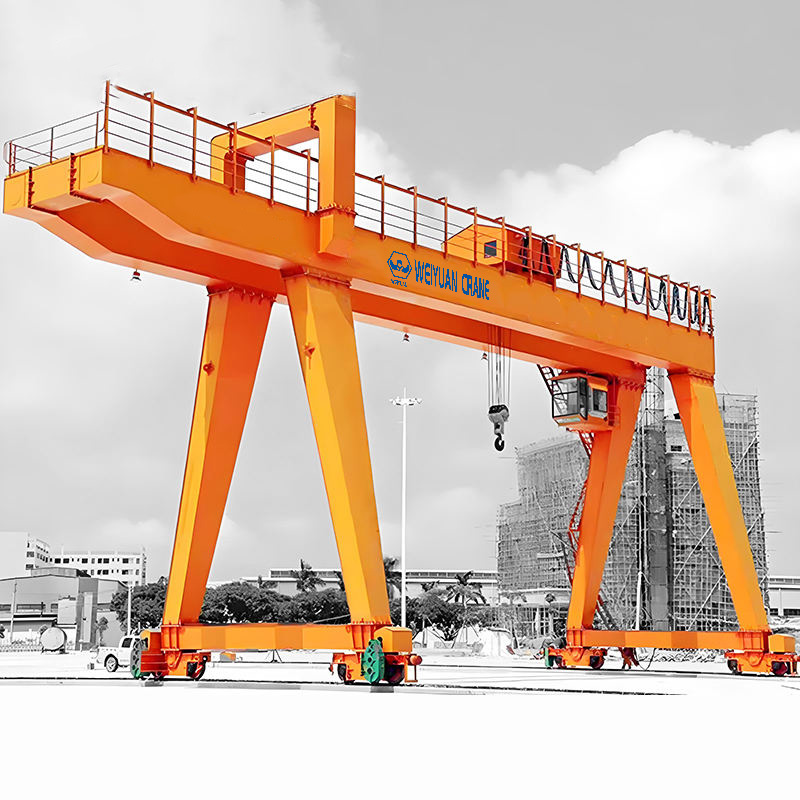

The Weiyuan MG Type Rail-Mounted Gantry Crane with Cabin Control is a powerful, heavy-duty lifting system designed for precision, safety, and operator comfort. This robust double-girder crane travels on ground-mounted rails, making it the industry standard for high-frequency lifting in outdoor stockyards, construction sites, and heavy industrial facilities. The inclusion of a fully enclosed operator’s cabin provides a superior command center for managing complex lifts in all weather conditions. Engineered by Weiyuan for strength and endurance, this crane is a reliable asset for any operation demanding high performance and control.
Product Advantages
- Superior Operator Environment: The climate-controlled operator’s cabin provides a safe, comfortable, and quiet workspace, protecting the operator from weather and environmental hazards. The elevated position offers an excellent panoramic view for precise load handling and enhanced site safety.
- Heavy-Duty Performance: Built with a strong double-girder A-frame and a powerful trolley system, this crane is engineered for continuous, heavy-duty operation, ensuring maximum productivity and a long service life.
- High Stability and Capacity: The double-girder structure offers exceptional stability, allowing the crane to handle very heavy loads over long spans with minimal deflection. It is the ideal structure for high-capacity lifting requirements.
- Efficient and Precise Control: Cabin control with joystick operation allows for smooth, simultaneous, and precise movements of the crane, trolley, and hoist, giving the operator ultimate command over the load.
- Fully Customizable: Weiyuan can engineer every detail—from lifting capacity and span to the inclusion of cantilevers and advanced safety features—to create a bespoke crane that perfectly matches your site’s specific needs.
Application Scenarios
- Steel Distribution Centers: Ideal for the high-frequency loading, unloading, and organizing of steel coils, plates, and long structural beams.
- Precast Concrete Yards: The preferred solution for handling and stacking large precast elements, where precision and a clear view are critical.

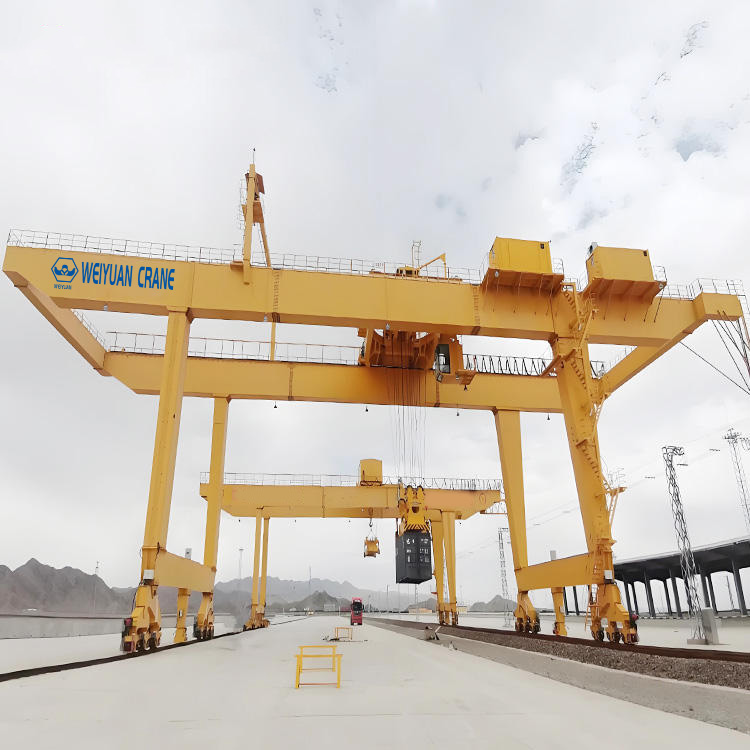

- Port and Freight Terminals: Used for handling bulk cargo, heavy containers, and other materials transferred between ships, trains, and trucks.
- Heavy Manufacturing: Provides powerful lifting for moving large machinery, heavy fabrications, and raw materials in outdoor assembly or storage areas.
- Scrap Metal Recycling Yards: The robust construction and protective cabin make it perfect for the demanding environment of sorting and loading scrap metal.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Weiyuan |
| Rated Capacity | 10t to 250t (Customizable) |
| Span | Up to 50m (Customized) |
| Max. Lifting Height | Up to 30m (Customized) |
| Work Duty | A5–A7 (Medium to Heavy Duty) |
| Structure | MG Type A-Frame Double Girder Gantry Crane |
| Lifting Mechanism | Heavy-duty wire rope hoist trolley or open winch trolley |
| Crane Traveling Speed | 20-45 m/min (VFD control available) |
| Trolley Traveling Speed | 20-40 m/min (VFD control available) |
| Control Method | Air-conditioned Cabin Control with joystick operation |
| Power Supply | 3-Phase 380V-440V, 50/60Hz via cable reel or conductor busbar |
| Electrical Components | Siemens, Schneider, or equivalent premium brands |
| Safety Devices | Overload limiter, anemometer, rail clamps, emergency stop, anti-collision system, buffers |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP55 for outdoor configuration |
| Steel Grade | Q355B High-Strength Carbon Steel |
| Warranty | 1 Year |
| Lead Time | 40–60 days (Negotiable) |
Features at a Glance
- Weiyuan heavy-duty MG type rail-mounted gantry crane.
- Features a comfortable and safe operator’s cabin for superior control.
- Robust double-girder design for high capacities and long spans.
- Ideal for demanding, high-frequency outdoor lifting.
- Fully customizable with optional cantilevers and advanced features.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
