Weiyuan MH Box Type Gantry Crane | Direct Walk, Outdoor/Indoor Use, Reliable
Product Overview

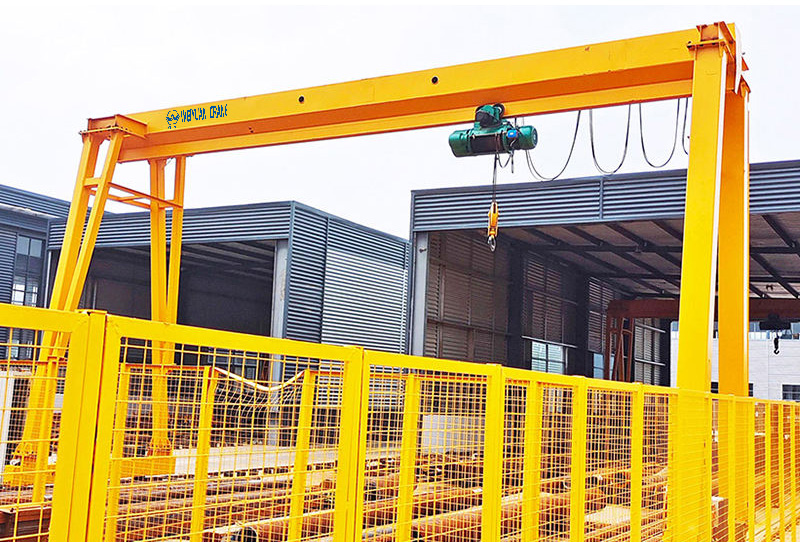

The Weiyuan MH Box Type Single Girder Gantry Crane is an adaptable and highly practical lifting solution designed for “direct walk” ground-level operation. This crane travels on rails set directly on the floor, making it perfect for outdoor yards, warehouses, and workshops where overhead structures are impractical. Its strong, box-girder main beam provides excellent stability and durability for handling a variety of loads. Paired with a dependable electric wire rope hoist, this Weiyuan gantry crane is a straightforward, reliable, and efficient tool for your material handling needs.
Product Advantages
- Ground-Level Operation: Runs on floor-mounted rails, eliminating the need for costly building modifications or support columns, making it ideal for open yards and existing structures.
- Durable Box-Girder Construction: The Weiyuan box-girder design offers superior strength, rigidity, and resistance to twisting forces compared to I-beam girders, ensuring a long and stable service life.
- Weatherproof for Outdoor Use: Designed to perform reliably outdoors, this crane can be equipped with protective rain covers for the hoist and electrical components to withstand the elements.
- Ease of Use and Control: Comes with user-friendly control options, including a mobile pendant control that allows the operator to walk alongside the load, and an optional wireless remote for enhanced flexibility and safety.
- Cost-Effective and Simple: Offers a powerful lifting capability with a simple structure that is easy to install, operate, and maintain, providing excellent value for your investment.
Application Scenarios

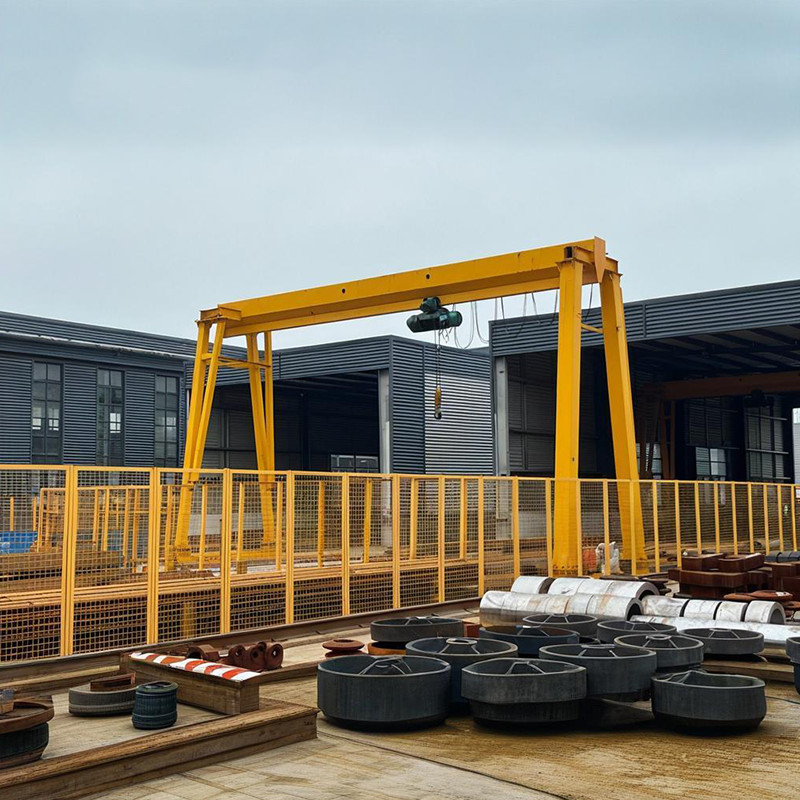

- Outdoor Storage Yards: Perfectly suited for lifting and moving materials in precast concrete yards, steel stockyards, and stone processing facilities.
- Loading and Unloading Zones: Efficiently handles goods and materials for loading onto trucks or moving from outdoor storage to indoor production areas.
- General Workshops: A flexible lifting solution inside workshops for moving heavy components, dies, and machinery without needing a permanent overhead crane.
- Railway Freight Yards: Facilitates the handling of cargo and containers alongside railway lines.
- Construction Sites: Can be used for lifting and placing heavy building materials and equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Weiyuan |
| Rated Capacity | 3t to 20t (Customizable) |
| Span | Up to 35 m (Customized to your workspace) |
| Max. Lifting Height | Up to 12 m (Customized as per demand) |
| Work Duty | A3–A5 (Light to Medium Duty) |
| Lifting Speed | 8 m/min (or 8/0.8 m/min dual speed) |
| Trolley Traveling Speed | 20 m/min |
| Crane Traveling Speed | 20 m/min |
| Control Methods | Pendant Control (Standard), Wireless Remote Control (Optional) |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Electrical Components | Schneider, Siemens, or equivalent reliable brand |
| Safety Devices | Overload limiter, emergency stop, travel limit switches, rail clamp |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 (IP55 for outdoor components) |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Warranty | 1 Year |
| Lead Time | 15–30 days (Negotiable) |
Features at a Glance
- Reliable Weiyuan MH box-type single girder gantry crane.
- Ground-traveling design for flexible indoor and outdoor use.
- Durable, low-maintenance box-girder structure.
- Simple installation and user-friendly controls.
- Customizable span and height to fit your specific site.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
