Weiyuan MH Type Customizable Single Girder Gantry Crane
Product Overview

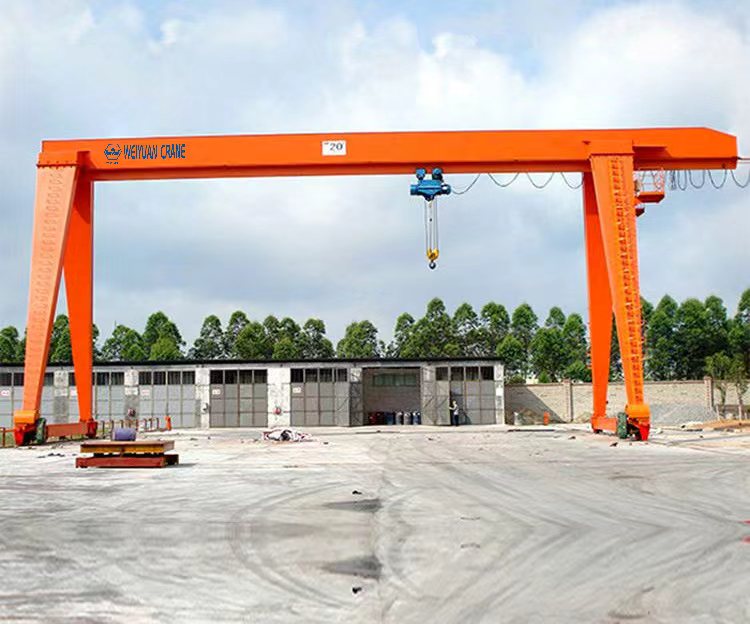

The Weiyuan MH Type Single Girder Gantry Crane is a versatile and powerful lifting solution engineered for adaptability and performance. Designed for both indoor and outdoor applications, this crane features a robust A-frame structure that travels along ground-level rails, offering exceptional stability and broad operational coverage. With fully customizable capacities, including popular 10-ton, 15-ton, and 20-ton models, and paired with a high-efficiency electric hoist, it stands as the ideal workhorse for workshops, storage yards, and construction sites that demand reliable, tailored material handling.
Product Advantages
Fully Customizable for Your Workspace
The primary advantage of the MH gantry crane is its complete adaptability. We engineer each crane to your precise specifications, allowing you to define the lifting capacity, span, and height. This ensures the crane provides maximum coverage for your work area without wasted space or capability. Whether you need a standard 10-20 ton capacity or a unique configuration, we create a solution that integrates perfectly into your workflow.
Robust Construction for All-Weather Use

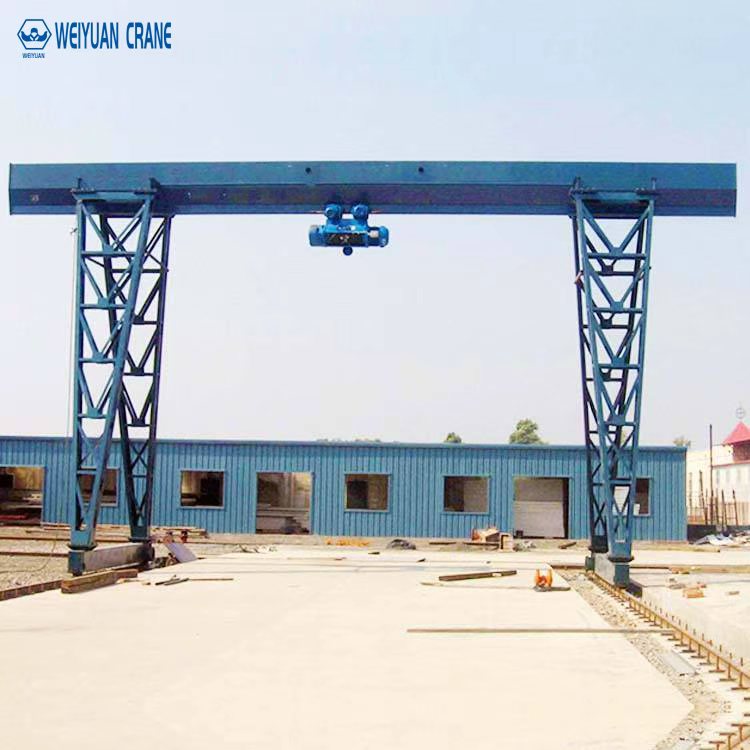

Built to handle demanding work environments, this crane is available in two durable structures: a box-type girder for easy fabrication and maintenance, and a truss-type girder for superior wind resistance in outdoor settings. Constructed from high-strength Q235B/Q345B steel, the frame is engineered for an A3-A5 work duty, guaranteeing reliable performance and a long service life, even in challenging weather conditions.
Flexible and Safe Control Options
We prioritize operator safety and control. This crane offers multiple control methods to suit your operational needs. A classic pendant control provides direct, straightforward operation. For enhanced safety and mobility, a wireless remote control allows the operator to manage the lift from a safe distance with an unobstructed view of the load and surrounding area, minimizing workplace hazards.
Simple, Efficient, and Easy to Maintain
The MH model features a simple and compact single-girder design that is not only cost-effective but also easy to install and maintain. Paired with a dependable wire rope electric hoist, it delivers smooth and efficient lifting performance. This straightforward engineering minimizes downtime and ensures that your operations run smoothly with a reliable, low-maintenance lifting asset.
Application Scenarios
- Manufacturing Plants: Perfect for moving raw materials, components, and finished goods in workshops or outdoor assembly areas.
- Stone and Steel Yards: Ideal for loading, unloading, and organizing heavy materials like stone slabs, steel beams, and pipes.
- Construction Sites: A reliable solution for lifting and positioning building materials and prefabricated components.
- Freight Yards & Warehouses: Excellently suited for handling goods and materials in storage yards and logistics hubs.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Lifting Capacity | 10 Ton, 15 Ton, 20 Ton (Customizable up to 50T) |
| Span | 10m – 40m (Customizable) |
| Lifting Height | Up to 30m (Customizable) |
| Work Duty | A3 – A5 (Light to Medium Duty) |
| Lifting Mechanism | Wire Rope Electric Hoist |
| Lifting Speed | 8 m/min (or dual speed options) |
| Crane Traveling Speed | 20 m/min (Customizable) |
| Control Method | Ground Control (Pendant) / Wireless Remote Control |
| Main Electrical Parts | Schneider, Siemens (or equivalent brands) |
| Power Supply | 3-Phase 220V–460V, 50/60Hz (Customizable) |
| Material | Q235B & Q345B High-Strength Steel |
Features at a Glance
✓ Fully Customizable Solution: Tailor capacity, span, and height to your exact needs.
✓ Robust A-Frame Structure: Ensures excellent stability for indoor and outdoor use.
✓ Dual Girder Options: Choose between box or truss type for optimal performance.
✓ Flexible Control Methods: Available with pendant and wireless remote control.
✓ Comprehensive Safety Features: Includes overload protection and travel limit switches.
✓ Reliable & Low-Maintenance: Simple design ensures a long, efficient service life.
Frequently Asked Questions
Q: What is the difference between a box-type and a truss-type gantry crane?
A: A box-type girder has a solid, box-shaped beam, which is easy to manufacture and maintain, making it ideal for general indoor or sheltered use. A truss-type girder uses a lattice structure, which is lighter and offers less resistance to wind, making it the superior choice for very windy outdoor locations or for extremely long spans.
Q: Can this 20-ton gantry crane be used outdoors?
A: Yes, absolutely. The MH model is designed for both indoor and outdoor use. For outdoor applications, we recommend the truss-type structure for better wind resistance and can include additional weatherproofing, such as rain covers for the electric hoist and control box, to ensure durability.
Q: What is the main benefit of a single girder gantry crane?
A: A single girder gantry crane offers a great balance of performance and cost-effectiveness. Its simpler, lighter structure is less expensive to manufacture and install compared to a double girder crane. It’s an excellent, economical choice for light to medium-duty lifting tasks up to 20 tons and beyond.
Q: What information do you need to provide a quotation for a customizable gantry crane?
A: To provide an accurate quote, please inform us of your required lifting capacity (e.g., 10, 15, or 20 tons), the span (width) you need to cover, the desired lifting height, your facility’s power supply details (Voltage/Hz), and whether you will be using it indoors or outdoors. Our team will then prepare a comprehensive technical proposal for you.
