Gantry crane
Weiyuan New Style Gantry Crane | 5, 10, 20 Ton | Truss Design, Lightweight, Durable
Product Overview
Introducing the Weiyuan New Style Truss Gantry Crane, a lightweight yet powerful lifting solution available in 5, 10, and 20-ton capacities. This crane features a modern truss-girder design, which utilizes an engineered lattice structure to provide exceptional strength with reduced self-weight. This innovative design makes it particularly well-suited for outdoor environments with high winds, as well as for applications where minimizing ground pressure is important. Paired with a high-performance electric hoist, the Weiyuan truss gantry crane offers a smart, efficient, and cost-effective solution for your material handling needs.
Product Advantages
- Lightweight and Strong: The truss (or “flower frame”) design significantly reduces the crane’s overall weight compared to a solid box girder, while maintaining excellent structural integrity and lifting capability.
- Ideal for Windy Conditions: The open lattice structure of the truss girder allows wind to pass through, reducing the wind load on the crane. This makes it a safer and more stable choice for outdoor and exposed locations.
- Cost-Effective Manufacturing: The efficient use of steel in the truss design can lead to lower material costs and a more competitive price, offering great value from Weiyuan.
- Reduced Wheel Pressure: The lower self-weight translates to less pressure on the ground rails and foundation, which can be a significant advantage in yards or facilities with ground-bearing limitations.
- Flexible Capacity Options: Available in popular capacities of 5, 10, and 20 tons, this crane series provides a versatile solution that can be tailored to a wide range of light to medium-duty lifting tasks.
Application Scenarios
- Outdoor Construction Sites: Excellent for lifting building materials, rebar, and equipment in open, windy areas.
- Bridge and Road Building: Its lightweight design makes it easy to set up and use for various lifting tasks along the construction path.

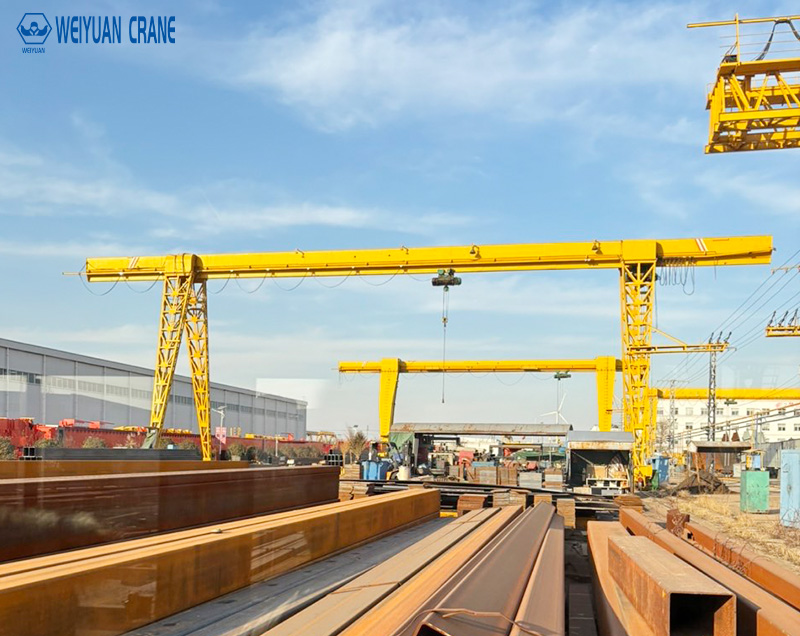

- Open-Air Stockyards: A great choice for steel yards, lumber yards, and other outdoor storage facilities where wind is a factor.
- Port and Dockside Areas: Useful for handling materials and equipment in coastal or port environments exposed to strong winds.
- General Workshops: Can be used indoors as a lightweight alternative to a box-girder gantry crane, especially in facilities with floor load restrictions.
Product Specifications
| Parameter | Specification |
|---|---|
| Brand | Weiyuan |
| Rated Capacity | 5 ton, 10 ton, 20 ton (Other capacities available) |
| Span | Up to 40 m (Customized to your workspace) |
| Max. Lifting Height | Up to 20 m (Customized as per demand) |
| Work Duty | A3–A5 (Light to Medium Duty) |
| Girder Type | Single Truss Girder |
| Lifting Speed | Customized (Single, dual, or VFD options) |
| Trolley Traveling Speed | 20 m/min (Customizable) |
| Crane Traveling Speed | 20 m/min (Customizable) |
| Control Methods | Wireless Remote Control, Pendant Control, Cabin Control |
| Power Supply | 3-Phase 380V/400V/415V/440V, 50/60Hz |
| Electrical Components | Schneider, Siemens, or equivalent reliable brand |
| Safety Devices | Overload limiter, emergency stop, travel limiters, anemometer (wind speed alarm) |
| Working Temperature | -25°C to +40°C |
| Protection Class | IP54 / IP55 for outdoor configuration |
| Steel Grade | Q235B / Q355B Carbon Structural Steel |
| Warranty | 1 Year |
| Lead Time | 20–35 days (Negotiable) |
Features at a Glance
- New style Weiyuan truss gantry crane in 5, 10, and 20-ton capacities.
- Lightweight truss design is strong and ideal for outdoor, windy locations.
- Cost-effective solution with reduced material weight and wheel load.
- Fully customizable span, height, and speeds to meet your needs.
- Equipped with comprehensive safety features, including wind alarms for outdoor use.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
Use within the standard for the next 12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
