Weiyuan Single Girder Semi-Gantry Crane with Span
Product Overview

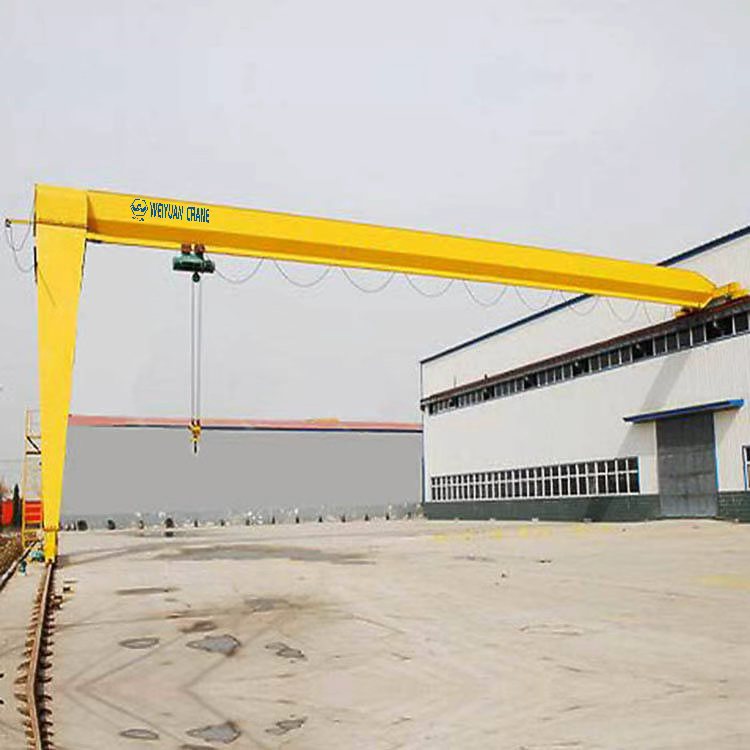

The Weiyuan 5-Ton Single Girder Semi-Gantry Crane is a highly efficient and adaptable lifting solution engineered for both indoor and outdoor applications. Featuring a 16-meter span, this crane combines the mobility of an overhead crane with the ground-level support of a gantry crane, making it perfect for workshops, warehouses, and factories where space optimization is key. Its robust semi-gantry design, running on one elevated rail and one ground-level rail, offers exceptional flexibility for material handling tasks.
Product Advantages
Space-Efficient Hybrid Design
This semi-gantry crane maximizes your floor space by requiring only one side of the runway to be supported by building columns. This design is ideal for facilities where a full gantry or bridge crane is impractical, offering extensive coverage without obstructing the workspace.
Durable and Reliable Construction

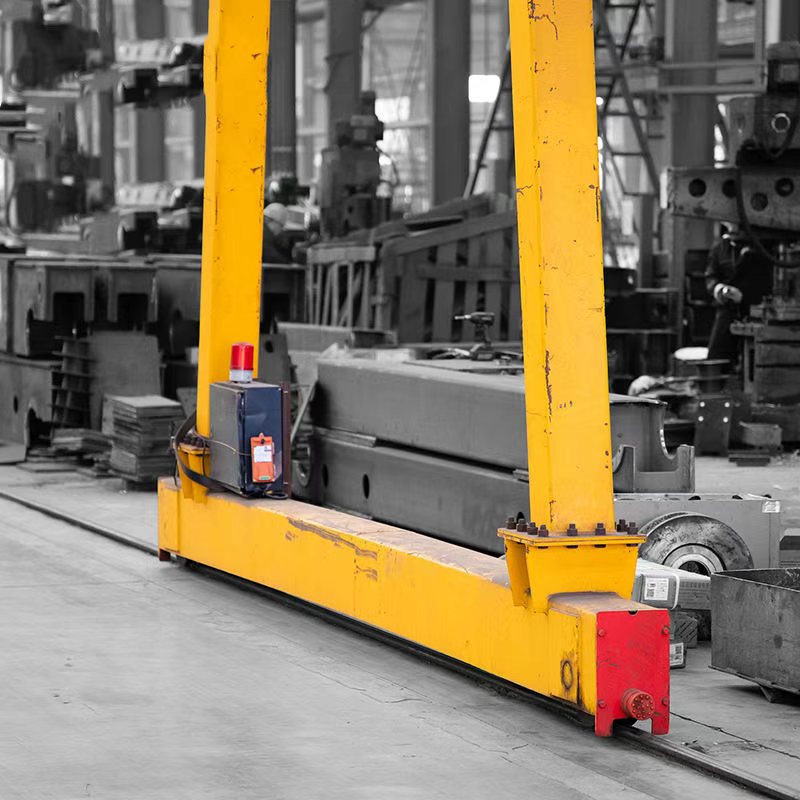

Built from high-strength Q235B/Q345B steel, the main girder and leg are engineered for stability and a long service life. The crane’s structure undergoes rigorous testing to comply with international standards, ensuring dependable performance even in demanding industrial environments.
Smooth and Precise Operation
Equipped with a high-performance wire rope electric hoist, the crane delivers smooth and steady lifting. With options for both remote and pendant control, operators can manage loads with precision and safety, enhancing overall productivity and reducing material damage.
Fully Customizable for Your Needs
Weiyuan provides comprehensive customization to match your specific operational requirements. Tailor the lifting capacity, span, height, control methods, and color to integrate the crane perfectly into your workflow and facility layout.
Application Scenarios
- Manufacturing Workshops: Excellent for moving heavy components, molds, and finished products between workstations or along an assembly line.
- Warehousing and Logistics: Ideal for loading and unloading trucks, organizing heavy stock, and streamlining operations in storage yards.
- Maintenance and Repair Facilities: Provides reliable lifting support for servicing heavy machinery and equipment safely and efficiently.
- Outdoor Stockyards: With weather-resistant coatings and protective measures, this crane is perfectly suited for handling materials in outdoor storage areas and construction sites.
Product Specifications and Dimensions
| Specification | Parameter |
|---|---|
| Rated Lifting Capacity | 5 Ton (Customizable up to 20 Ton) |
| Span | 16m (Customizable) |
| Max. Lifting Height | 6m, 9m (Customizable up to 30m) |
| Work Duty | A3 |
| Lifting Mechanism | Wire Rope Electric Hoist |
| Control Method | Ground Control / Wireless Remote Control |
| Lifting Speed | 3.5 m/min (Single or Dual Speed Optional) |
| Travel Speed | 20 m/min (Customizable) |
| Power Supply | 3-Phase 380V/415V/440V, 50/60Hz |
Features at a Glance
✓ Flexible Semi-Gantry Structure: Optimizes workspace by running on one ground and one elevated rail.
✓ Customizable Design: Fully tailored to meet your lifting capacity, span, and height needs.
✓ High-Efficiency Hoist: Ensures smooth, reliable, and safe lifting operations.
✓ Robust Safety Features: Equipped with overload protection, limit switches, and emergency stop systems.
✓ Versatile Control Options: Choose between easy-to-use pendant and wireless remote controls.
✓ Durable Construction: Made with high-quality steel for long-lasting performance.
Frequently Asked Questions
Q: What is the main advantage of a semi-gantry crane?
A: A semi-gantry crane is ideal for facilities that cannot accommodate a full overhead or gantry crane. It frees up floor space on one side while providing the extensive reach needed for effective material handling, making it a cost-effective and flexible solution.
Q: Can this crane be used outdoors?
A: Yes, the crane can be fully prepared for outdoor use. We equip it with rainproof covers for the hoist and electrical components, as well as durable, weather-resistant paint to protect it from the elements.
Q: How do I choose the correct specifications for my needs?
A: To get the best configuration, consider the maximum weight you need to lift, the required span (width of your working area), and the necessary lifting height. Our engineering team is available to help you select the perfect specifications for your application.
Q: How can I get a quote for this 5-ton semi-gantry crane?
A: Simply contact us with your requirements for lifting capacity (5 tons), span (16m or other), lifting height, and preferred control method. Our team will provide a detailed and competitive quotation promptly.
