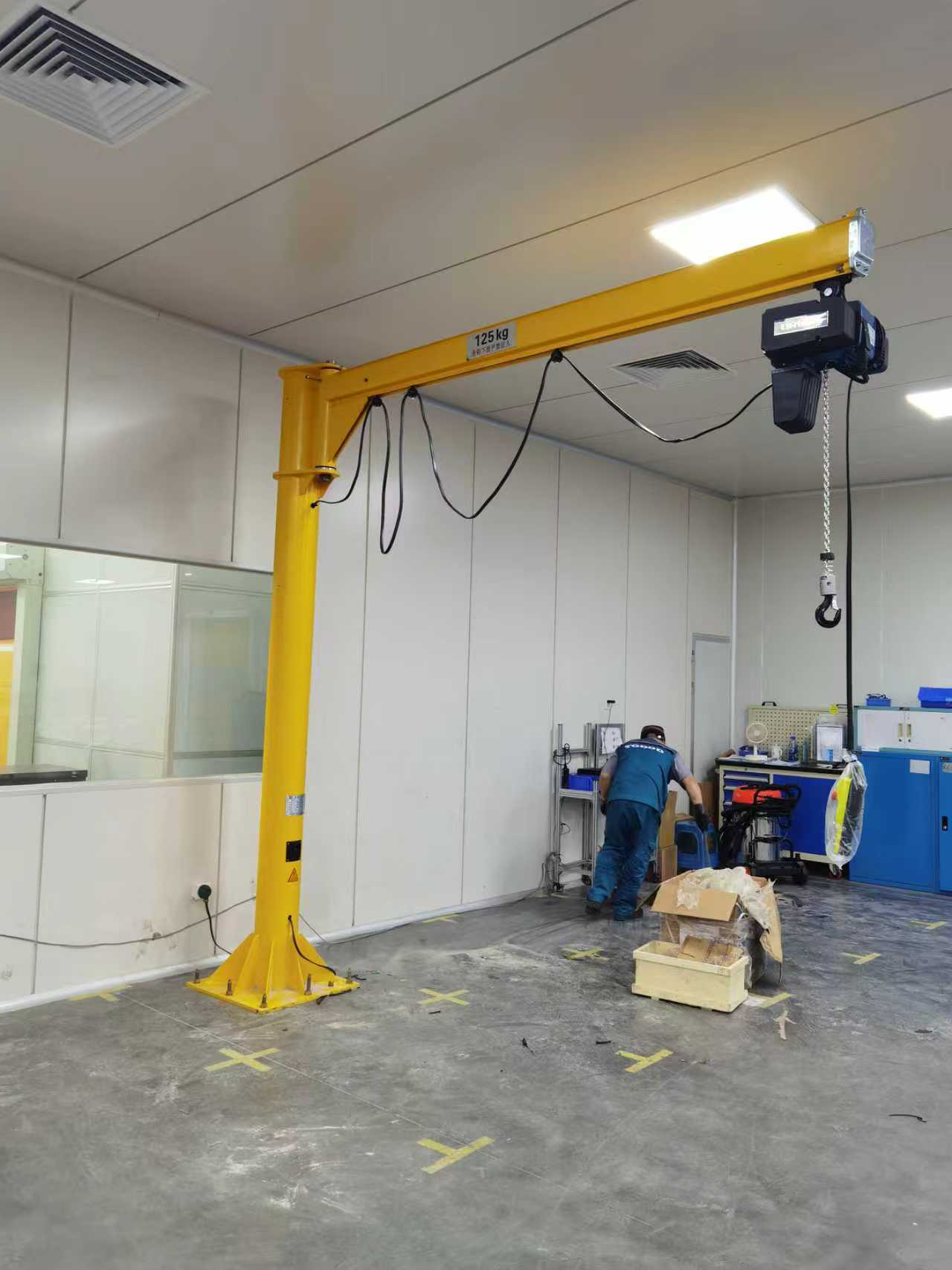

Column Jib Crane – Flexible Light Beam Slewing Crane 1 Ton
Product overview
Transform your material handling operations with the Column Jib Crane, a versatile and cost-effective lifting solution designed to maximize productivity in confined spaces. This flexible light beam slewing crane delivers exceptional performance across workshops, warehouses, production lines, and construction sites where precision and efficiency matter most.
Product advantages
360-Degree Coverage: Engineered with full rotation capability, this jib crane provides complete floor coverage, allowing unrestricted placement of machinery and equipment while maximizing your workspace utilization.
Compact Yet Powerful: Despite its lightweight design, this 1-ton capacity crane delivers reliable lifting power with a maximum lifting height of 10.8m and an 8-meter span, making it ideal for facilities with space constraints.
Free-Standing Design: The column-mounted configuration eliminates the need for additional steel structure support, offering a truly independent lifting solution that can be positioned exactly where you need it most.
Effortless Operation: Designed for single-person operation, this crane reduces labor costs while improving workflow efficiency. The intuitive controls ensure smooth, precise material movement every time.
Product specifications and dimensions
| Model | Unit | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 |
| Rated capacity | t | 0.5 | 1 | 2 | 3 | 5 |
| Max. Lifting height | m | 3 | 5 | |||
| Max. working range | m | 4 | 5 | |||
| Max. turning radius | m | 5 | 4.5 | |||
| Max. lifting torque | tm | 3 | 5.2 | 8.5 | 12.2 | 18.8 |
| Rotation angle | ° | ≤360 | ||||
| Lifting speed | m/min | 8;8/0.8 | ||||
| Trolley travelling speed | m/min | 20 | ||||
| Rotation speed | m/min | 1 | 0.75 | 0.7 | 0.9 | 0.6 |
| Weight | kg | 1000 | 1150 | 1350 | 3500 | 4500FEATURES AT A GLANCE |
FEATURES AT A GLANCE
1.Prices are ideal for low-cost lifting and handling goods effectively within a plant.
2.It can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.
3.Our Swing level offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization.
4.Classification of Swing level jib crane: Free standing jib crane; Wall mounted jib crane; Wall travelling jib crane; Articulating jib crane, etc.
5.It is useful where overhead hoists are neither practical nor feasible.
6.This machine utilize 300 degree floor coverage, allowing unrestricted placement of machinery and equipment.
FAQ
1. What’s the information should I provide when inquiry?
More details or drawings, better. A: Lift capacity B: Crane arm length C: lift height: hook travel distance D: What material to lift E: power source or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. What about warranty time ?
12 months.
5. How can we install the crane? Our senior engineer can be your side to do the installation guide service and training.
6. May I visit your factory?
Of course. We can pick you up at train station, high-speed rail station or airport, and book hotel for you.
